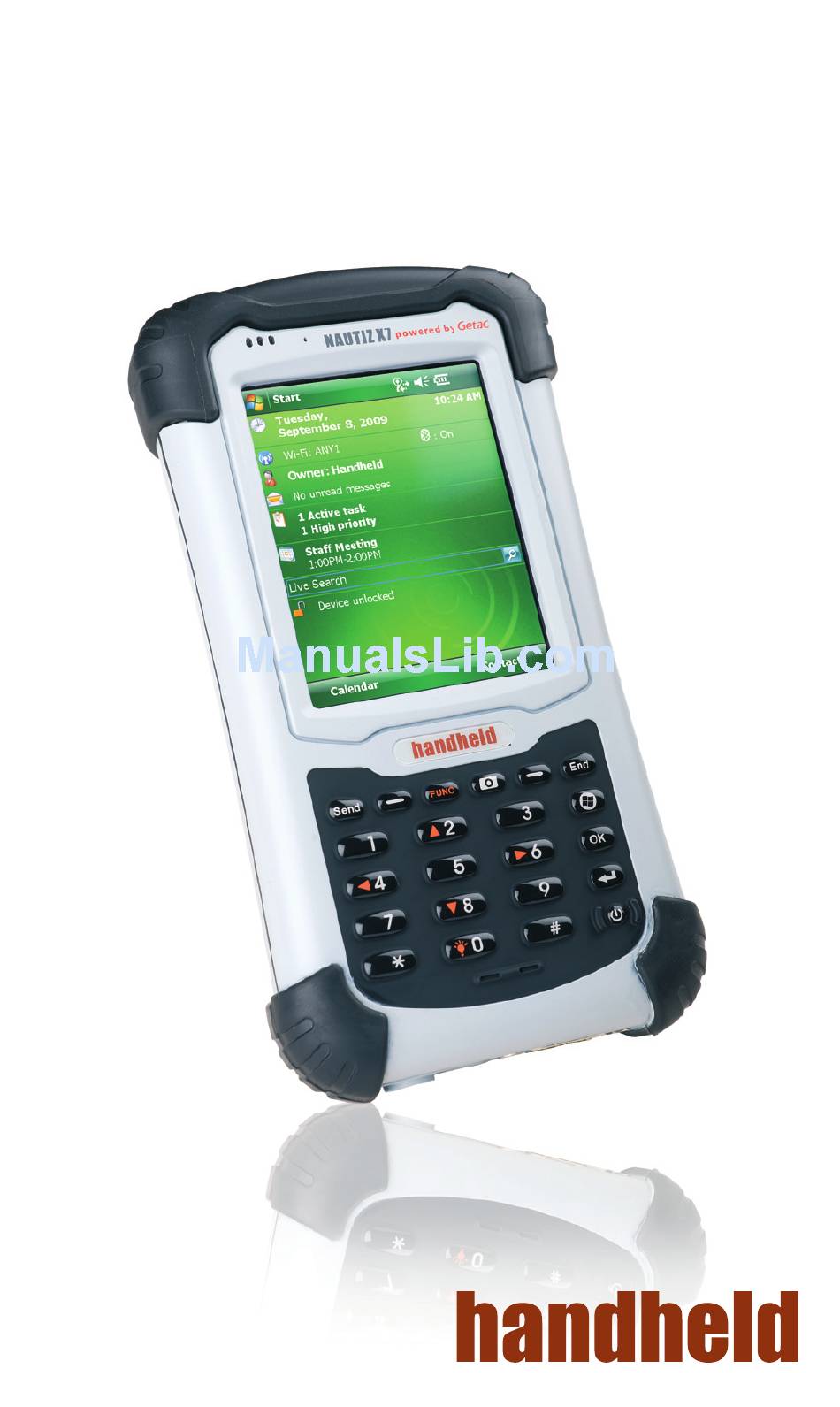

- Page 1 NAUTIZ X7 Quick Start Guide...
-
Page 2: Identifying Components
1 Identifying Components Left to right: Mobile Phone Indicator RF (Radio Frequency) Indicator Charge/Notifi cation Indicator Earpiece Touch Screen Keypad Power Button Microphone SD Card Slot Cover... - Page 3 1 Identifying Components Hand Strap Holder Camera Flash Speaker Lens Stylus Battery Cover Hand Strap Holder Mini-USB Connector Power Connector Serial Connector Docking Connector...
-
Page 4: Getting Your Device Ready For Use
2 Getting Your Device Ready for Use Installing the SIM Card and Battery Lift the latch handle of the battery cover and turn it counterclockwise to the unlock (vertical) position. Then, detach the cover from the device. If you model has the phone function, you need to install the SIM card provided by your mobile operator. - Page 5 3 Getting Your Device Ready for Use Connecting to AC Power and Charging the Battery Be sure to fully charge the battery before using your device for the fi rst time. Plug the DC cord of the AC adapter into the power connector of the device ( Plug the female end of the AC power cord into the AC...
- Page 6 4 Getting Your Device Ready for Use Performing the Initial Startup When turning on your device for the very fi rst time, you will be guided through a setup process. Make sure that your device is either connected to AC power or the battery has power.
-
Page 7: Operating Basics
5 Operating Basics Entering the Suspend Mode Your device automatically suspends after a period of inactivity (default 3 minutes while on battery power and 5 minutes while on external power). To manually suspend the device, briefl y press the power button. To resume operation, press the power button. - Page 8 6 Operating Basics Using the Keypad Use the numeric keys to enter numbers (majorly for models with the phone function). When Fn lock is on ( ), you can use the alternative functions. Moves up, down, left and right within the screen or menu.
- Page 9 7 Operating Basics Using the Keypad Use the left of right soft key to perform the command shown on the bottom left or right corner of the screen. Use the Fn key to switch on or off the “alternative functions” of the numeric keys.
-
Page 10: Using The Phone (Select Models Only)
8 Operating Basics Running Programs You can switch from one program to another without closing any program. • To run a program, tap on the left-top corner of the screen and select from the Start menu. • To access additional programs, tap Programs and tap the program icon. -
Page 11: More Information
9 Using the Phone (Select Models Only) Starting the Phone Program Start the Phone program by any of the three methods: • Press the Send key on the device. • Phone (left soft key) on the Today screen. • Phone. Dialing a Phone Number When on the Today screen: Press the numeric keys on your device to start... - Page 12 www.handheldgroup.com...
