Safety 1st CCA 2010 A Owner's Manual

Safety 1st CCA 2010 A Owner's Manual

Convertible car seat
Hide thumbs

Advertisement

Table of Contents

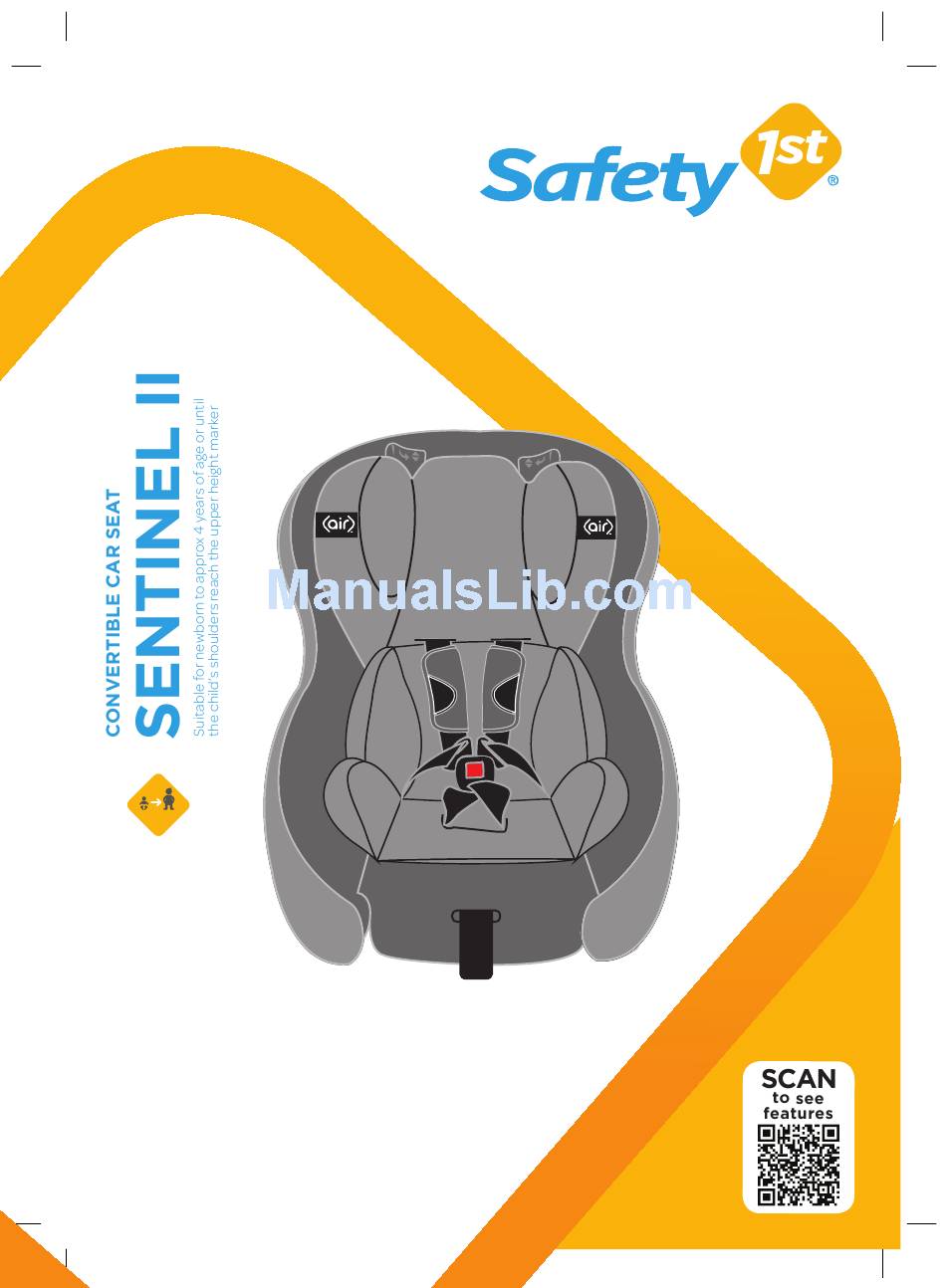

0m+
4yrs
Model: CCA 2010 A
Illustrations are representative only.
Design and style may vary.
IMPORTANT:
KEEP THIS BOOKLET IN THE PLACE
PROVIDED ON THE CHILD RESTRAINT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CCA 2010 A and is the answer not in the manual?

Questions and answers

Related Manuals for Safety 1st CCA 2010 A

Summary of Contents for Safety 1st CCA 2010 A

  • Page 1 4yrs Model: CCA 2010 A Illustrations are representative only. Design and style may vary. IMPORTANT: KEEP THIS BOOKLET IN THE PLACE PROVIDED ON THE CHILD RESTRAINT...

  • Page 2: Table Of Contents

    Before You Start Thank you for purchasing this child seat. This product is suitable for toddlers and older children. We welcome you as a valued customer, and trust that your child will enjoy many years of comfort and safety. No child restraint can guarantee absolute protection from a crash. However proper use of this restraint may reduce the risk of injury or death! CONTENTS...

  • Page 3: Warnings

    WARNING Read and follow all of the installation instructions for maximum protection. If you have any questions regarding the installation or use of this restraint, please contact Dorel Australia or agent, or a child restraint fitting station authorised by the relevant transport authority, or in New Zealand, to consult the agent for the vehicle.
  • Page 4 WARNING • DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR. • To ensure that your child gets all the protection designed into this restraint you MUST read and:- Use the restraint exactly as shown in the instructions. Fit the restraint firmly to the car seat. Fit the harness firmly to the child.

  • Page 5: Parts List

    PARTS LIST Hook Attachment Tether Strap Insert Stabilising Arm Adjuster Strap Instruction Manual Recline Arm Style and design may vary Base Fig 1. Front of vehicle FRONT OF VEHICLE Adjustable Headrest (5 position) Air Protect Technology Adjuster Latch Belt Mates Tether Strap Anchor Fitting Buckle...

  • Page 6: Anchorage Fitting Installation

    ANCHORAGE FITTING INSTALLATION Read and follow all of the installation instructions for maximum protection. If you have any questions regarding the installation or use of this restraint, please contact Dorel Australia or a child restraint fitting station authorised by the relevant State Government body or in New Zealand, to consult the agent for the vehicle.
  • Page 7 IMPORTANT Child restraints must be used correctly to provide proper protection for your child. The new type of clip anchorage system on child restraints must be used in the correct way. Be especially careful to use the clip in the following way. RIGHT Make sure there is no slack in the top strap and the attachment clip is upright in the anchorage fitting.
  • Page 8 If the car is fitted with a child restraint anchorage point. Locate the anchorage point behind the rear seating position (consult the car owner’s handbook for the location of the anchorage point). Remove the thread plug from the parcel shelf / floor / roof and install the attachment bolt as shown in Fig 7.

  • Page 9: Preparing Infant Seat To Fit Your Child

    PREPARING INFANT SEAT TO FIT YOUR CHILD You MUST make these adjustments with your child before you install the child restraint in the vehicle. Please adjust harness according to the infants shoulder height prior to installation. CONFIGURING THE HARNESS BELT FOR SHOULDER HEIGHT.
  • Page 10 PREPARING INFANT SEAT TO FIT YOUR CHILD TO FASTEN BUCKLE ASSEMBLY Fig 12 STEP 1 STEP 2 STEP 3 Step 1 : Insert one buckle tongue as shown above. Step 2 : Insert the second buckle tongue as illustrated above. Listen for a ‘CLICK’. Step 3 : Remember to always pull up on the harness straps to make sure buckle is locked tightly.

  • Page 11: Adjusting Tether Strap

    ADJUSTING TETHER STRAP PULL TO LOOSEN PULL BUTTON FIG A PULL TO TIGHTEN PULL BUTTON FIG B Fig 15 TO ADJUST TETHER STRAP: To loosen: Press on the adjuster button with thumb and pull strap back through to loosen FIG A anchorage strap using strap which is attached to the seat.

  • Page 12: Correct Rearward Facing Vehicle Position

    CORRECT REARWARD FACING VEHICLE POSITION CORRECT USE Fig 18. CORRECT USE Fig 19. 390mm 640mm Fig 20. ANGLE CONFIGURATION FOR SEAT Position seat ensuring that the angle is no greater than 40˚ from horizontal plane. Ensure recline arm and seat base is set in position (High).

  • Page 13: Shoulder Marker Height Rearward Facing

    SHOULDER MARKER HEIGHT REARWARD FACING REARWARD FACING (Newborn to 12 months) The shoulder straps must be in the slots which are nearest to the child’s Shoulder shoulders, but not lower than the strap child’s shoulders. Fig 21 MUST BE REAR FACING WHEN SHOULDERS BELOW THIS LINE Lower label 1 Front of vehicle...

  • Page 14: Rearward Facing Installation

    REARWARD FACING INSTALLATION 1. Set base in position (High) 2. Swing stabilising arm into position (Fig 23). 3. Place restraint facing rearwards on back seat of vehicle in line with an anchorage strap anchorage point.. 4. Thread the vehicle seat belt through the BLUE belt path at the front of the restraint and fasten buckle...

  • Page 15: Correct Forward Facing Vehicle Position

    CORRECT FORWARD FACING VEHICLE POSITION CORRECT USE Fig 26 CORRECT USE Fig 27 INCORRECT USE Fig 28...

  • Page 16: Shoulder Marker Height Forward Facing

    SHOULDER MARKER HEIGHT FORWARD FACING Fig 29. Strap can be next FORWARD FACING slot above (12 months to 4years) The shoulder straps must be in the slots which Child Shoulders are nearest to the child’s shoulders, but not more than 25 mm below the child’s shoulders Strap cannot be more than 25mm below...

  • Page 17: Forward Facing Installation

    FORWARD FACING INSTALLATION TODDLER 12MONTHS TO 4YEARS OLD. FORWARD-FACING Fig 31. BELT PATH 1. Adjust the child restraint to the forward facing position. Fold the Stabilizer Arm if the restraint has been used for rear facing. 2. Adjust the recline arm to low or high position, to suit your child as fitment in some vehicles can be impacted due to the location of anchorage points, or the shape of rear seats.

  • Page 18: The Next Seat For Your Child

    THE NEXT SEAT FOR YOUR CHILD SHOULDERS MUST BE BELOW THIS LINE UPPER label Fig 32. Front of vehicle SHOULDER MARKER To be used only in a rearward-facing position until the infant’s shoulders reach the lower shoulder height marker (approximately 12 months of age).

  • Page 19: Cleaning Instructions For Buckle

    CLEANING INSTRUCTIONS FOR BUCKLE Follow the manufacturer’s instructions at all times. Before removal, ensure you have carefully noted the way which the various parts are attached to the seat so as to facilitate reassembly. Your child car seat is equipped with a buckle designed to give your child maximum protection during proper use.

  • Page 20: Care Instructions

    CARE INSTRUCTIONS • Seat trim may be removed for cleaning. Don’t forget to remove the instruction manual. • Machine wash in cold water, delicate cycle. • Tumble dry 10-15 minutes on low heat. • Do not dry clean. • All other surfaces should be cleaned with a mild soap and water. •...
  • Page 21 CARE INSTRUCTIONS WARNING VERY IMPORTANT: Only use this child restraint with the cover supplied or a manufacturer-authorized replacement cover with identical shoulder height markers.
  • Page 22 NOTE:...
  • Page 23 NOTE:...
  • Page 24 GUARANTEE Dorel Australia Pty Ltd warrants your new product to be free from defects in materials and workmanship for 6 years on the seat & 2 years on the trim, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided.
