OperatOr and parts Manual

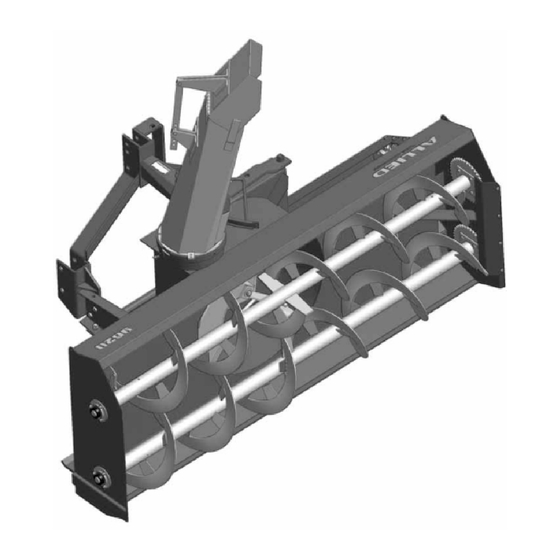

9620 Snowblower
5/2010
FK330

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9620 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Allied 9620

  • Page 1 OperatOr and parts Manual 9620 Snowblower 5/2010 FK330...
  • Page 3: Table Of Contents

    Table of Contents - 9620 Snowblower Table of Contents Warranty Policy Introduction Safety • Safety • General Safety • Start up Safety • Operation Safety • Transport Safety • Service and Maintenance Safety • Storage Safety • Safety Signs • Safety Sign Installation Assembly •...
  • Page 4: Warranty Policy

    Buhler Trading Inc.’s obligations under this warranty shall be limited to the repair or exchange, at Buhler Trading Inc.’s option, of any Buhler Trading Inc. product or part which proves to be defective as provided. Buhler Trading Inc. reserves the right to either inspect the product at the buyer’s location or have it returned to the factory for inspection.
  • Page 5: Introduction

    Introduction - 9620 Snowblower Introduction Allied by Farm King has years of snowblower manufacturing expertise. Thousands of acreages, farms, and cities depend on Allied by Farm King snowblowers. PTO-driven Allied by Farm King Snowblowers attach to 3-point hitch. This snowblower is supplied with category 2 pins with conversion bushings to category 3 available.
  • Page 6: Safety

    Safety - 9620 Snowblower Safety Remember, YOU are the key to safety. Good safety practices not only protect you, but also the people around you. Make these practices a working part of your safety program. Be certain that everyone operating this equipment is familiar with the recommended operating and maintenance procedures and follows all the safety precautions.
  • Page 7: General Safety

    Safety - 9620 Snowblower General Safety Instructions • Have a first-aid kit available for use and know how to use it. • Have a fire extinguisher available, stored in a highly visible location, and know how to use it. • Wear appropriate protective gear. This list may include but is not limited to:...
  • Page 8: Transport Safety

    Safety - 9620 Snowblower Transport Safety Review Transport Safety instructions in tractor manual before moving. Check with local authorities regarding transport on public roads. Obey all applicable laws and regulations. Make sure the SMV (Slow Moving Vehicle) emblem and all the lights and reflectors that are required by the local highway and transport authorities are in place, are clean, and can be seen clearly by all overtaking and oncoming traffic.
  • Page 9: Safety Sign Installation

    Safety - 9620 Snowblower Installation of Safety Signs To install safety signs, ensure the installation area is clean and dry. Decide on the exact position before you remove the backing paper. Remove the smallest portion of the split backing paper and align over the specified area.
  • Page 10: Assembly

    Assembly Instructions - 9620 Snowblower Assembly Instructions 1. Fasten the two quick hitch arms (#57) to the main body. Use eight 5/8" x 1 1/4" hex bolts, lock washers and hex nuts. Note: Lift arms for quick coupling hitch are 30 3/4" long versus 35" for the standard three point hitch.
  • Page 11 Assembly Instructions - 9620 Snowblower Assembly Instructions - continued 7. Mounting blower on tractor: a. The pins supplied with the snowblower are for a category 2 quick hitch. The quick coupling hitch has two holes both at the top of the hitch and at each lift arm. When using a quick coupler, the pins must be in the inside set of holes.
  • Page 12 Assembly Instructions - 9620 Snowblower Assembly Instructions - continued 8. PTO Shield All snowblowers are supplied with a PTO shield (#61). To install, remove the two rear bolts at the top of the gearbox (#38). Bolt the PTO shield to the gearbox by the hinges using these same bolts.
  • Page 13: Operation

    Operation Instructions - 9620 Snowblower Operation Instructions 1. Do not operate the blower in the fully raised position. The three-point hitch on some tractors rises high enough to cause the PTO shaft to bind. This can cause damage to the PTO shaft and/ or to the hitch and pins.
  • Page 14: Theory Of Operation

    Operation Instructions - 9620 Snowblower Operation Instructions - continued DANGER: Always stop blowing for servicing or unplugging. The PTO should be disengaged before dismounting from the tractor. CAUTION: Always check to see that both ends of the PTO shaft are securely attached as per instructions every time you are preparing to use the Snowblower.
  • Page 15: Maintenance

    Maintenance - 9620 Snowblower Maintenance Bolt Torque Bolt Diameter Grade 2 Bolts Grade 5 Bolts Grade 8 Bolts (inches) SAE 2 SAE 5 SAE 8 “A” (ft-lbs) (NM) (ft-lbs) (NM) (ft-lbs) (NM) 0.25 (1/4) 0.313 (5/16) 0.375 (3/8) 0.438 (7/16) 0.5 (1/2)
  • Page 16: Hydraulic Fittings

    Maintenance - 9620 Snowblower Maintenance Hydraulic Fittings Jam Nut or Straight SAE 37° (JIC) ORB Fitting Torque Swivel Nut Torque Dash Size Thread Size (ft-lbs) (NM) (ft-lbs) (NM) -4 (1/4) 7/16-20 14 - 16 20 - 22 10 - 11...
  • Page 17: Prevailing Torque Lock Nuts

    Maintenance - 9620 Snowblower Maintenance Prevailing Torque Lock Nuts Nut Size and Grade B Nuts Grade C Nuts Threads per Inch Nut Tightening Torque Nut Tightening Torque (ft-lbs) (NM) (ft-lbs) (NM) Coarse Thread 1/4 - 20 5 - 7 7 - 9...
  • Page 18: Parts Drawings

    Parts - 9620 Snowblower 96" Snowblower w/Quick Hitch...
  • Page 19 Parts - 9620 Snowblower 96" Snowblower w/Quick Hitch TO CONVERT TO HYDRUALIC SPOUT DEFLECTOR: REMOVE 68 AND REPLACE WITH HYDRAULIC CYLINDER HAND CRANK MOUNTING HOLE HAND CRANK MOUNTING HOLE CONVERTING TO HAND CRANK OPTION: REMOVE 36 AND ATTACH HAND CRANK...
  • Page 20: 96" Snowblower Drawings

    Parts - 9620 Snowblower When Ordering Parts Always give your dealer the Model, Color and Serial Number of your machine to assist them in ordering and obtaining the correct parts. Use the exploded view and tabular listing of the area of interest to exactly identify the required part.
  • Page 21: 96" Snowblower Parts Lists

    Parts - 9620 Snowblower 961676 1–1/4" Bearing w/ Collar 5/16" x 3/4" Hex Bolt Grade 5 (pl) 965970 Spout Clamp 5/8" x 3" Hex Bolt Grade 5 (pl) 965632 Spacer Idler 1/2" 965952 Quick Hitch Arm 5/16" x 1" Hex Bolt Grade 5 (pl) 965966 Quick Hitch Lift Pin (Cat.
  • Page 22: 96" Snowblower Pto Drawing & Pto Parts List

    Parts - 9620 Snowblower 96" Allied by Farm King Snowblower PTO (Standard) F0585 Standard PTO Shaft * Item Part Number Description 907989 Shear Assembly 936199 Safety Slide Lock Repair Kit (Collar, Spring, Ret. Ring, 2-Pawls) 936249 Shear Assembly Repair Kit (3/8"...
  • Page 23: 96" Snowblower Gearbox Drawing & Parts List

    Parts - 9620 Snowblower 96" Allied by Farm King Snowblower Gearbox Gearbox Assembly Parts List - BU50505 BU50505 Gearbox Complete WIthout Oil * Item Part Number Description BU575901 Bearing Cone (2 used) BU575902 Bearing Cup (2 used) BU50444 Staking Lock Nut...
  • Page 24: Optional Bundles

    Optional Bundles - 9620 Snowblower Optional Bundles F9116 Hydraulic Cylinder & Hose Kit for Spout Swivel Item Part Number Description – 4" OD Hydraulic Cylinder ORB (9 3/8" Port To Port) – 115043 1/2" x 78" Hose 1/2" MNPT X 3/4" MORB –...
  • Page 25 Optional Bundles - 9620 Snowblower F9117 Spout Deflector Cylinder & Hose Kit Item Part Number Description – 1–3/4" ID x 5" Stroke Cylinder – 116984 3/8" x 120" Hose C/W Fittings – Clevis Pin 1/2 x 1 13/16 Pl –...
  • Page 26 Optional Bundles - 9620 Snowblower F0586 Long PTO Shaft Item Part Number Description 936429 Shear Assembly 936199 Safety Slide Lock Repair Kit (Collar, Spring, Ret. Ring, 2-Pawls) 936249 Shear Assembly Repair Kit (3/8" x 1/2" Bolt, Lube, Blank, 31-1/4" Balls) 908846 Shear Bolt - 3/8"...
  • Page 27: Shipping Kit And Bundle Numbers

    Shipping Kit and Bundle Numbers - 9620 Snowblower Shipping Kit and Bundle Numbers Quantity Bundle Number Description YC9620Q-4 96" Allied by Farm King Snowblower w/Hydraulic Chute Control, Standard PTO & 4-Blade Fan F0625A Body Assembly F9211 Spout Assembly FX9204 Quick Hitch...
  • Page 28 9620 Snowblower NOTES:...
  • Page 30 1330 43rd Street NW Fargo, North Dakota USA 58102 Ph.: 701.282.7014 | Fax: 701.282.5865 E-mail: info@buhler.com www.farm-king.com Equipment shown is subject to change without notice. ©2010 Buhler Trading Inc. Printed in USA. TSX:BUI a division of Buhler Industries Inc.
