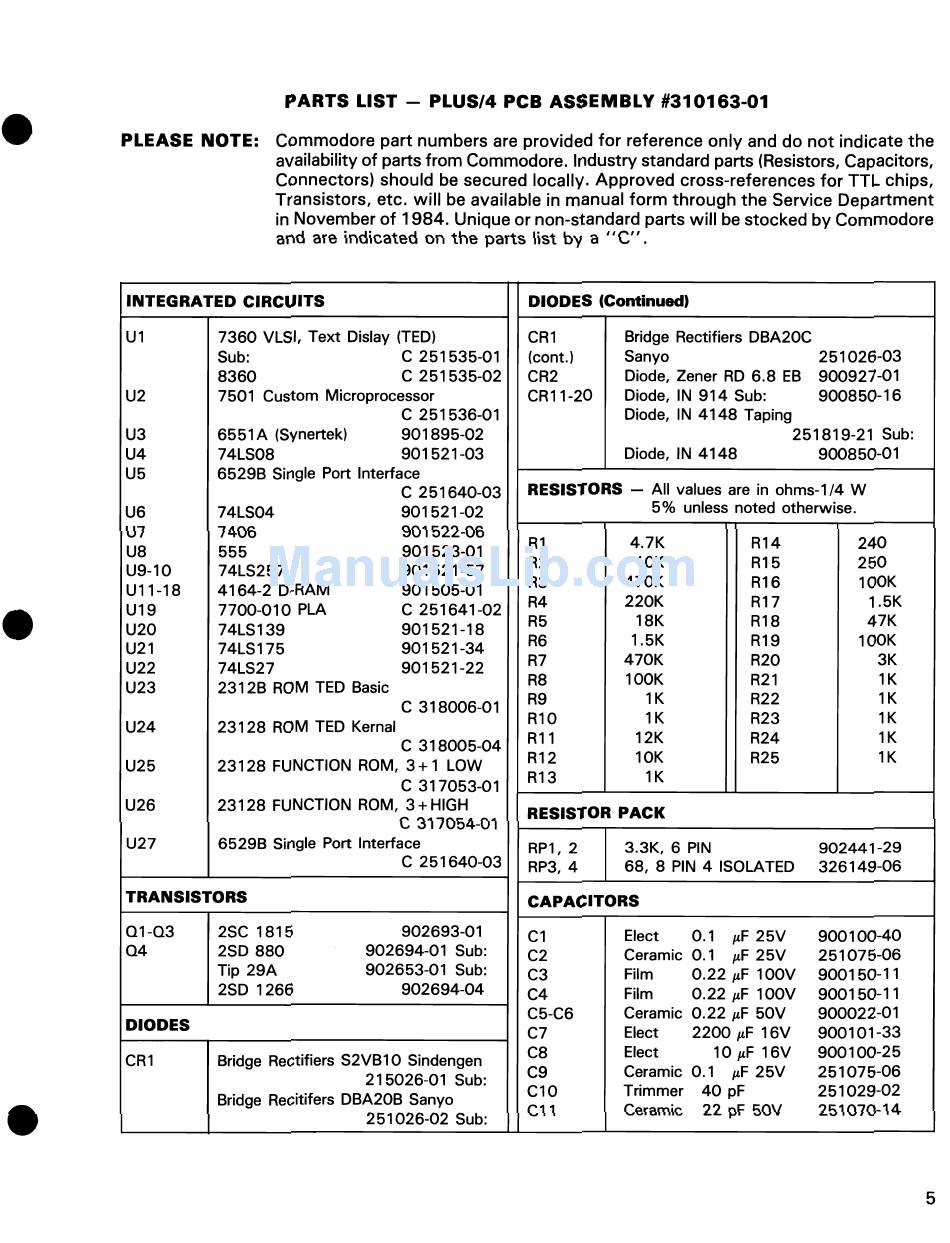

PARTS LIST - PLUS/4 PCB ASSEMBLY #310163-01
PLEASE NOTE:
Commodore part numbers are provided for reference only and do not indicate the
availability of parts from Commodore. Industry standard parts (Resistors, Capacitors,
Connectors) should be secured locally. Approved cross-references for TTL chips,
Transistors, etc.
will
be available in manual form through the Service Department
in November of 1984. Unique or non-standard parts will be stocked by Commodore
and are indicated on the parts list by a "C".
INTEGRATED CIRCUITS
U1
U2
U3
U4
U5
U6
U7
U8
U9-10
U11-18
U19
U20
U21
U22
U23
U24
U25
U26
7360 VLSI, Text Dislay (TED)
Sub: C 251535-01
8360 C 251535-02
7501 Custom Microprocessor
C 251536-01
6551A (Synertek) 901895-02
74LS08 901 521 -03
6529B Single Port Interface
74LS04
7406
555
74LS257
4164-2 D-RAM
7700-010 PLA
74LS139
74LS175
74LS27
2312B ROM TED Basic
23128 ROM TED Kernal
C 251640-03
901521-02
901522-06
901523-01
901521-57
901505-01
C 251641-02
901521-18
901521-34
901521-22
C 318006-01
C 318005-04
23128 FUNCTION ROM, 3+ 1 LOW
C 317053-01
23128 FUNCTION ROM, 3+HIGH
C 317054-01
DIODES (Continued)
CR1
(cont.)
CR2
CR11-20
Bridge Rectifiers DBA20C
Sanyo 251026-03
Diode, Zener RD 6.8 EB 900927-01
Diode, IN 914 Sub: 900850-16
Diode, IN 4148 Taping
251819-21 Sub:
Diode, IN 4148 900850-01
RESISTORS - All values are in ohms-1/4 W
5% unless noted otherwise.
R1
R2
R3
R4
R5
R6
R7
R8
R9
R10
R11
R12
R13
4.7K
10K
470K
220K
18K
1.5K
470K
100K
1K
1K
12K
10K
1K
RESISTOR PACK
R14
R15
R16
R17
R18
R19
R20
R21
R22
R23
R24
R25
240
250
100K
1.5K
47K
100K
3K
1K
1K
1K
1K
1K
U27 6529B Single Port Interface RP1, 2
3.3K, 6 PIN 902441-29
C 251640-03 RP3, 4
68, 8 PIN 4 ISOLATED 326149-06
TRANSISTORS
01-03
04
DIODES
CR1
2SC 1815
2SD 880
Tip 29A
2SD 1266
902693-01
902694-01 Sub:
902653-01 Sub:
902694-04
Bridge Rectifiers S2VB 10 Sindengen
215026-01 Sub:
Bridge Recitifers DBA20B Sanyo
251026-02 Sub:
CAPACITORS
C1
C2
C3
C4
C5-C6
C7
C8
C9
C10
C11
Elect 0.1 J.tF 25V
Ceramic 0.1 J.tF 25V
Film 0.22 J.tF 100V
Film 0.22 J.tF 100V
Ceramic 0.22 J.tF 50V
Elect 2200 J.tF 16V
Elect 10 J.tF 1 6V
Ceramic 0.1 J.tF 25V
Trimmer 40 pF
Ceramic 22 pF 50V
900100-40
251075-06
900150-11
900150-11
900022-01
900101-33
900100-25
251075-06
251029-02
251070-14
5
