Commodore Plus 4 Service Manual page 7

TOP CASE ASSY
Top Case
Keyboard, 67 Key, KKR-I
Nameplate
Shield Clip, R
Shield Clip, F
BOTTOM CASE ASSY
Bottom Case
Foot, Self-Adhesive
Paper Shield
Shield Chip
Shield Plate
Insulation Sheet
ACCESSORIES
Users Manual
Power Supply
RF Cable
Switch Box
PARTS LIST
PLUS/4
C
251453-01
C 251501-01
C 251655-01
C 251855-01
C 251856-01
C 251454-01
C 950157-04
C 310156-01
C 310199-01
C 310197-01
C 310198-01
C 310196-01
C 310157
C 326189-02
C 904778-01
C - Commodore Stock Part
r'"
~
F
I-
"' "
~. ~
~ i-'t"o'
Cc
I
BIO'IIIK!'
!....,eag]
/ , \
~
II
~../
(eJI
L&~....... II II UHUt UII III
)
a

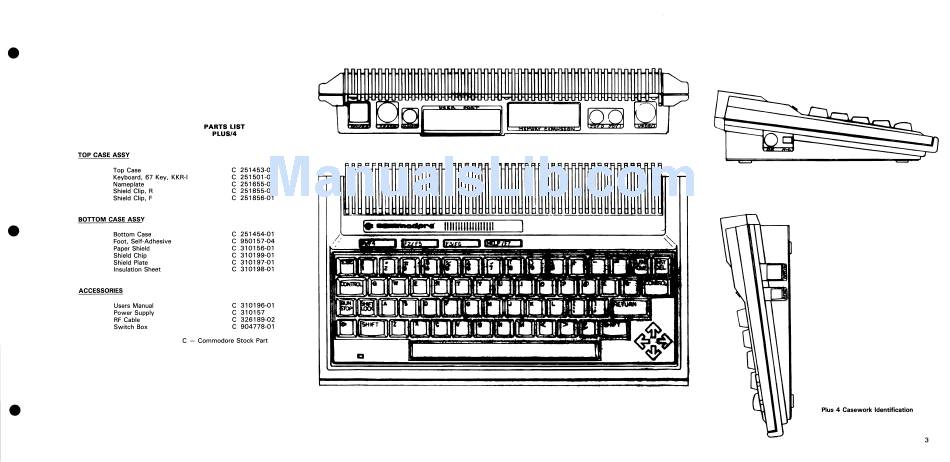

Plus 4 Casework Identification
