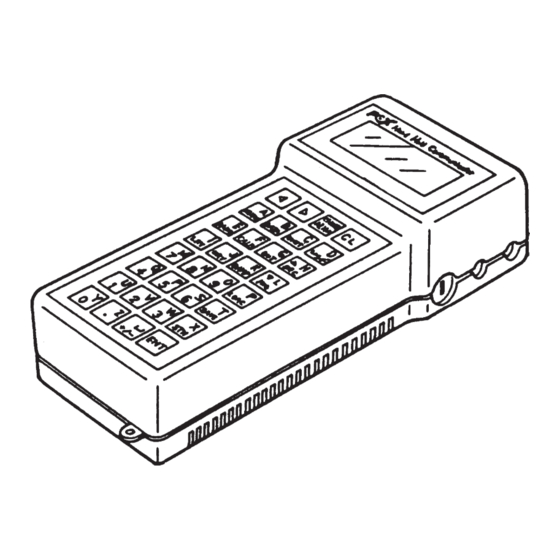

Fuji hand held communicator (hhc) (type : fxw)
Hide thumbs Also See for FCX Series:
Table of Contents

Advertisement

Quick Links

Download this manual

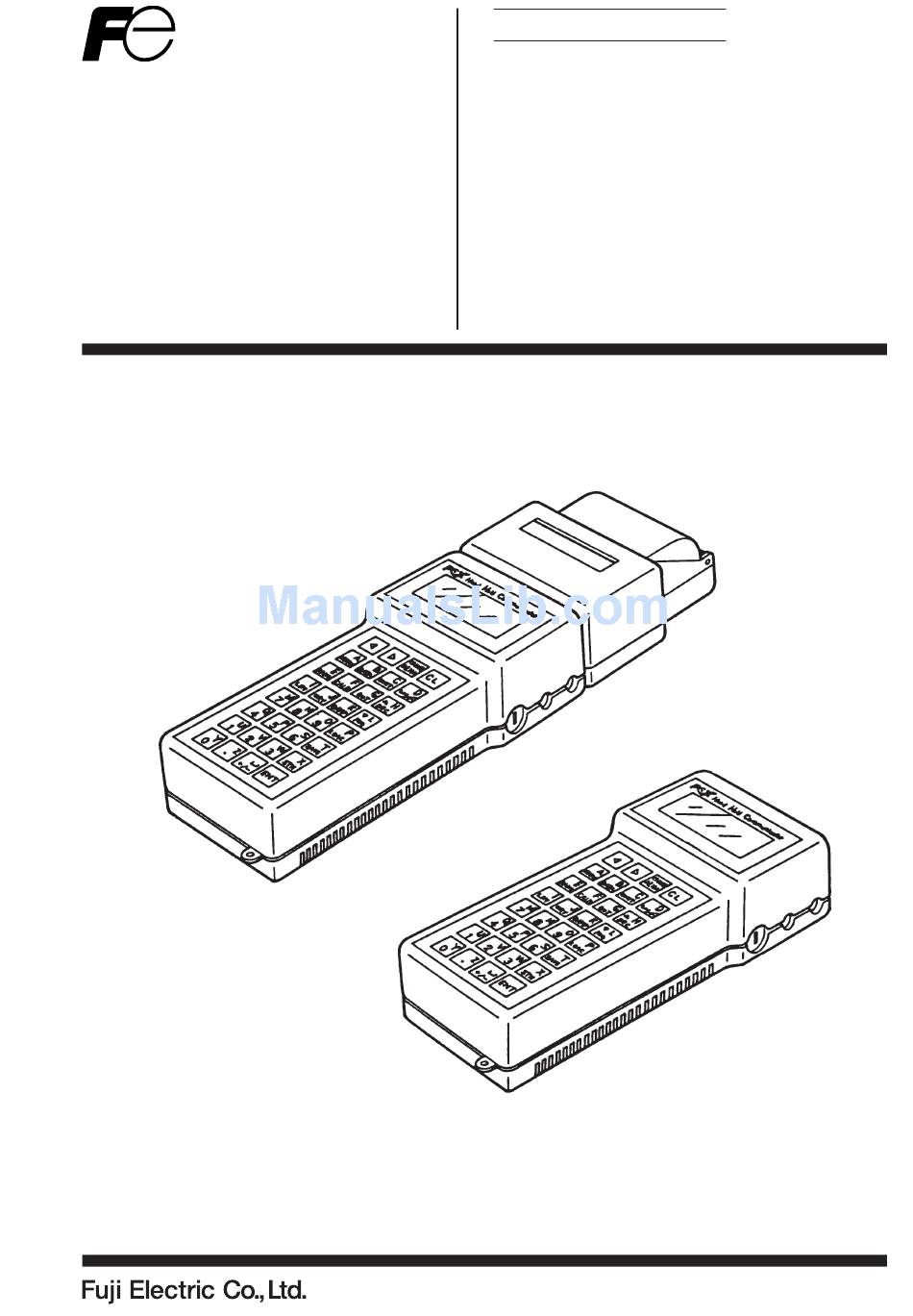

Instruction Manual
FCX SERIES
HAND HELD COMMUNICATOR
(HHC)
TYPE: FXW
INF-TN1FXWi-E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FCX Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fuji Electric FCX Series

Summary of Contents for Fuji Electric FCX Series

  • Page 1 Instruction Manual FCX SERIES HAND HELD COMMUNICATOR (HHC) TYPE: FXW INF-TN1FXWi-E...

  • Page 2: Introduction

    Date of manufacture: Described in nameplate on main frame Product nationality: Japan Request © Fuji Electric Co., Ltd. 1990 Issued in January, 1990 • Transcription of a part or the whole of this manual without Rev. 6th edition June, 1999 permission is prohibited.

  • Page 3: Caution On Safety

    CAUTION ON SAFETY First of all, read this “Caution on Safety” to ensure correct operation of the Hand Held Communicator. • The cautionary descriptions listed here contain important information about safety, so they should be ob- served without fail. Those safety precautions are classified into ranks “DANGER” and “CAUTION”. Wrong handling may cause a dangerous situation, in which there is a DANGER risk of death or heavy injury.

  • Page 4: Table Of Contents

    CONTENTS Page INTRODUCTION ........................i CAUTION ON SAFETY ......................ii 1. GENERAL ..........................1-1 2. PRODUCT CHECK .......................2-1 3. OPERATING PARTS AND DESCRIPTIONS ..............3-1 3.1 Name and description ......................... 3-1 3.2 Descriptions of operating parts ....................3-2 4. CONNECTION ........................4-1 4.1 Connection of HHC ........................4-1 4.2 Power supply and load resistance ....................
  • Page 5 Hand Held Communicator TYPE Power Supply DC1.2Vx5 600mAh Ser. No. Mfd. Fuji Electric Co., Ltd. Made in Japan The following items are shown in this nameplate. Type: Type of unit Power supply: Power source (nickel-cadmium battery) specifications Ser.

  • Page 6: General

    1. GENERAL This instrument is designed for use with each smart type device of FCX series transmitter. Setting changes and adjustments necessary for operation of each device can easily be made during communi- cations with operator. Applicable field devices (1) FCX series transmitter •...
  • Page 7 (5) FCX-AII series transmitter • Differential pressure/flow transmitter (FKC ... 4) • Pressure transmitter (FKG ... 4) • Absolute pressure transmitter (FKA ... 4) • Level transmitter (FKE ... 4) • Remote seal type differential pressure transmitter (FKD ... 4) •...

  • Page 8: Product Check

    2. PRODUCT CHECK Check to make sure that the following products are included. (without printer) Communication cable (about 1 m) Security key (2 pcs) Instruction manual Option HHC with printer Battery charger Roll paper Carrying case 2 - 1...

  • Page 9: Operating Parts And Descriptions

    3. OPERATING PARTS AND DESCRIPTIONS 3.1 Name and description ON/OFF switch Printer (option) Display unit Keyboard Battery charger terminal Communication cable terminal Security key socket * Battery charger terminal: Used to charge battery by using a special battery charger. * Communication cable terminal: Used to connect communication cable.

  • Page 10: Descriptions Of Operating Parts

    3.2 Descriptions of operating parts The operating unit contains 4 kinds of keys; command keys (blue), numeric keys (yellow), ENT key (red) and CL key (green). For the function of these keys, please refer to “5. Operation”. Hand Held Communicator CHNG Command Keys Clear Key...

  • Page 11: Connection

    4. CONNECTION 4.1 Connection of HHC Connect HHC in parallel with the current output of a field device. 1. Connect HHC after holding the transmitter ON for about 10 seconds. Important 2. When connecting HHC, ensure ON/OFF switch is in the OFF position. 3.

  • Page 12: Power Supply And Load Resistance

    4.2 Power supply and load resistance When using HHC, the output load resistance of the transmitter should be within the range shown in Fig. 4-1. (for transmitter) (Ω) (Ω) 1511 1533 Operating Operating range zone range zone 16.6 45 (V) 10.5 16.1 45 (V)

  • Page 13: Operation (For Transmitter)

    5. OPERATION (FOR TRANSMITTER) Cautions prior to operation When changing a set value, make sure the control loop is in manual mode. DANGER 1. Turn ON the power switch. If the battery alarm is displayed, the battery should be Important charged.

  • Page 14: Descriptions Of Displays

    5.1 Descriptions of displays Transmitter information can easily be checked and changed via the HHC using the messages shown on the display. The display is a liquid crystal type shown the following contents in 4 lines with 16 characters. Menu No. Function 6-2 : RANGE CHANGE LRV ±XXX.

  • Page 15: Outline Of Hhc Operation

    In this case, contact our office for ROM version up. A part of the operation of the HHC of version 7.0 or earlier may differ or some items may not be set if the HHC is used for FCX series, FCX-A/C series, FCX-AX series transmitter or FCX-AII/CII series transmitter.

  • Page 16: Operating Procedures

    The following shows the operating procedure of HHC connecting to FCX-AIII series transmitter. A part of the operation of the HHC of version 7.0 or earlier may differ or some items may not be set if the HHC is used for FCX series, FCX-A/C series, FCX-AX series transmitter or FCX-AII/CII series transmitter.
  • Page 17 TYPE TAG No. Type of field device is displayed and 2-1: TYPE CHANGE changed (example of differential pressure FKCS35V5-AAAYY- transmitter). < ENT > < CL > • After TAG NO. is displayed, press the TYPE FKCS35V5-AAAYY- <INC> key to display TYPE image. CHNG 2-1: TYPE CHANGE <...
  • Page 18 Industrial value unit UNIT Available unit for FCX-AII/CII and FCX- AIII UNIT mmH O cmH O mH O < INC > < CHNG > g/cm CHNG kg/cm 4-1: UNIT CHANGE (NEXT MPa) < INC > < ENT > < CL > mbar <...
  • Page 19 Range limit Indicates the maximum measuring range of this transmitter. 5: RANGE LIMIT × × × Range change (LRV, URV) < INC > LRV: Lower range value (0% point) URV: Upper range value (100% point) • When pressing <CHNG> under display RANG ①...
  • Page 20 Damping adjustment DAMP In the case where the process input fluctua- tion is large, the vibration of the installa- CHNG tion site is large, and minute differential DAMPING 7-1: DAMP CHANGE 0.3SEC 0.3SEC pressure is measured, if the output fluctua- tion is large, set appropriate damping time <...
  • Page 21 Output mode LIN/ (DP) GP, AP, LL (Liquid Level) The output mode is used to select the OUTPUT MODE : OUTPUT MODE proportional mode (proportional to input XMTR:DP XMTR:GP OUT=LIN OUT=LIN differential pressure) or square root ex- < INC > < CHANGE > <...
  • Page 22 Burnout direction and value CHNG 9:BURNOUT 9-1: BURNOUT Used for selecting output at occurrence NOT USED < 1 > NOT USED of a fault in the detecting unit. Burnout (HOLD) < 2 > OVER SCALE < INC > < CHANGE > <...
  • Page 23 Zero/span adjustment CALB < Zero adjustment > CALIBRATE A-1: CALIBRATE Zero and span are adjustable by applying ××× ×× ××× × an actual pressure. < INC > < LRV > < URV > < ENT > < CL > When pressing <LRV> under display ① , the screen for zero adjustment ②...
  • Page 24 Calibration of output circuit (D/A) The output circuit (D/A) should be cali- OUTPUT ADJ brated by the following procedure when necessary. < INC > < CHANGE > CHNG When the <LRV> key is pressed at the dis- play of ① , the display ② for 4mA current B-1: OUTPUT SET output and its calibration will appear on the <...
  • Page 25 Indication of measured data DATA The measured value can be indicated. DATA C-1: DATA XXX. X %FLOW XXXXX kPa < INC > < ENT > < CHANGE > < CL > CHNG "FLOW" is displayed C-1: DATA when output mode is XXX.
  • Page 26 [Contents of message] As a result of self-diagnosis with FCX-AIII series transmitters, the message below is appeared on the LCD display of HHC, when there are trouble in the transmitter. For each error, its cause and remedy are suggested. Indication on Cause Remedy Message...
  • Page 27 Lock of adjustment function CHNG The adjustment function by screw at the XMTR EXT. SW F-1: XMTR EXT. SW transmitter body can be locked. < 1 > INHIBIT ENABLE < 2 > ENABLE < INC > < CHANGE > < 1 > < 2 > < CL > When pressing <1>...
  • Page 28 Indication of digital indicator ±YYYYYY=XMTR DISPLAY G : XMTR DISPLAY G : XMTR DISPLAY at 4mA % DISPLAY ±YYYYYY/±ZZZZZZ ±ZZZZZZ=XMTR DISPLAY For digital indicator, either % display or X.XX-XXX.XX%YYYY UUUUUUU Note 1 at 20mA < INC > < CHANGE > <...
  • Page 29 When setting the actual-scale display, first select <2> ACTUAL DISP in ③ . Next, G-2 : DISP. CHANGE LRV: 4mA=±YYYYYY Already set value after setting the actual-scale display value URV: 20mA=±ZZZZZZ of transmitter < LRV >< URV ><CL> ( ⑪ to ⑭ ), perform the actual-scale dis- play unit setting ( ⑯...
  • Page 30 When setting of % Flow in %display or OUT=SQR at Menu No.8 OUT=LIN at Flow unit in actual scale display, low Menu No.8 flow cut point and low flow cut mode are G-8 : LOW CUT G-8 : LOW CUT POINT=XX.XX%FLOW POINT=XX.XX%FLOW displayed (  or  ).
  • Page 31 Programmable linearization function LINEARIZE User can set output compensation against INVALID the input using 14 compensation points, (X < INC > < CHNG > ), (X )…(X ). Each compensa- CHNG tion value between (Xn, Yn) and (Xn+1, CHNG Yn+1) is connected by first order approxi- H-1: LINEARIZE H-2:...
  • Page 32 Change of compensated point for CV H-4: LINEARIZE H-4: LINEARIZE CV1 XXX.XX% CV3 XXX.XX% < INC> < CNG/ENT/CL > < INC> < CNG/ENT/CL > CV14 Next parameter H-4: LINEARIZE H-4: LINEARIZE Important CV2 XXX.XX% CV14 XXX.XX% < INC> < CNG/ENT/CL > <...
  • Page 33 Rerange (Set LRV/URV calibration) RERANGE (application to level measurement) at change < INC > < CHNG > of level (LRV/URV) CHNG Functions of RERANGE can be made with I-1: RERANGE FXW Version 6.0 or upward. When the lower range value (LRV) and up- <...
  • Page 34 Saturation current value and specification SATURATE CUR J-1: SATURATE CUR Saturation current value (Lower limit < 1 > SAT LO Y.YmA SATURATE LO < 2 > SAT HI YY.YmA Y.YmA value=SAT LO, Upper limit value=SATO < 3 > SPEC XXXXXX <...
  • Page 35 Write protect Write protect is settable by setting a PASSWORD When the write protect is ON by this function, the write protect can not be cancelled by 3-push button of local configurator unit with LCD display. Refer to "K Write protect" of Local configurator unit with LCD display for details.
  • Page 36 5 - 24...
  • Page 37 History information Display of ZERO/SPAN adjustment data for users It is displayed by selecting <1> on the display ① . ZERO means ZERO adjustment value. SPAN means SPAN adjustment value. Clear of ZERO/SPAN adjustment data for users It is cleared by selecting <1> on the display ②...

  • Page 38: Printout Format For Smart Transmitter

    5.5 Printout format for smart transmitter The data from FCX-AIII series transmitter that can be printed with HHC printer is shown by the follow- ing printing example. Printed items may differ slightly depending on the type and setting conditions. Date and time D ate and time TAG NO.

  • Page 39: Printer Paper Feed Function

    5.6 Printer paper feed function (1) On the type with printer, PAPER FEED is displayed at (Displayed on the PAPER FEED ? type with printer) power ON. <INC> I NC Paper feed PUSH MENU KEY (2) Print menu After setting day and time, press the key and the data is printed according to “5.5 HHC print- E N T out format for smart type transmitter”.

  • Page 40: Abnormal Display And Countermeasure

    6. ABNORMAL DISPLAY AND COUNTERMEASURE If the following indication appear while using HHC, it means that a fault has occurred. Display Cause Remedy 1 : BAT. ALM • Battery voltage drop alarm Charge the battery Displayed (see “7. Maintenance and inspection”). alternately 1 : TAG NO.

  • Page 41: Maintenance And Inspection

    7. MAINTENANCE AND INSPECTION 7.1 Battery charging Do not attempt to charge the battery in hazardous area. DANGER (1) Continuous operating time The HHC incorporates a built-in rechargeable nickel cadmium battery. Under normal use of HHC (without printer), the continuous operating time with fully charged bat- tery is about 24 hours.

  • Page 42: Battery Replacement

    7.2 Battery replacement Do not attempt to replace the battery in hazardous area. DANGER To replace the battery, use the following procedures. (1) Remove the battery cover from the rear of HHC. (2) Pull out the battery cord using a tweezers. Care should be taken when it is pulled out to prevent damage to the connectors.

  • Page 43: Specification Sheet

    Owing to use of a large LCD (16 digits × 4 lines), setting and its change can easily be made in an inter- active mode. Applicable to every “smart” SPECIFICATIONS This communicator is usable for every “smart” type of FCX series transmitter. Operable online 4 to 20mA DC field signal remains unaffected by connection of this communicator.
  • Page 44 SPECIFICATIONS Functional specifications • Applicable device: Each “smart” type of FCX, FCX-A/C , FCX-AX, FCX-AII/CII series transmitters and FCX-AIII series transmitter. • Transmission signal connection: Exclusive cable of about 1 m with a clip at the end • Transmission line requirements: Line length : 2 km at maximum (0.75 to 1.25 mm...
  • Page 45 • Continuously operable time: Approx. 24 hours (under standard operating conditions after charging the battery fully) In case of intrinsic safety explosion-proof HHC, the operating time is reduced to about a half of the standard time. • Charging time: 5 hours •...
  • Page 46 Construction and material • Material : Polycarbonate • Finish color : Gray • Dimensions (H × W × D) : 55 × 98 × 223 mm (without printer) • Mass : Approx. 500 g (without printer) Remote functions, in case of FCX-AIII series transmitter No.
  • Page 47 CODE SYMBOLS 3 4 5 6 7 8 Description Printer Without With (explosion-proof structure is not applicable) Charger Without 100V AC 50/60Hz 115V AC 50/60Hz 230V AC 50/60Hz Explosion-proof structure for hazardous locations Without Intrinsic safety explosion-proof (ATEX) Carrying case Without With Application...
  • Page 48 OUTLINE DIAGRAM (Unit: mm) CONNECTION (Example: Transmitter) To junction terminal or instrument room Field device (Connect to transmitter "+" and "–" terminals) Instrument room Junction terminal Zener barrier Terminal block DC power supply 16.1 to 45V DC Load resistor 250 or more Note) See “4.2 Power supply and load resistance”.
  • Page 49 APPENDIX 2. HAZARDOUS LOCATION INSTALLATION INFORMATION This appendix contains documents that present installation instruction for the FCX-AIII Series Transmitter in a hazardous location. Refer to these figures or instruction note when installing or servicing a transmitter mounted in a hazardous location. A - 7...
  • Page 50 Table 1 ATEX Certificate numbers of FCX-AII/CII series transmitter Item Certificate number Transmitter INERIS 01ATEX0074X EEx ia Transmitter INERIS 01ATEX3009X EEx nL Transmitter INERIS 03ATEX3006X EEx nAL INERIS 03ATEX0162 EEx ia Transmitter INERIS 02ATEX0038 EEx d Table 2 ATEX Certificate numbers of FCX-AIII series transmitter Item Certificate number Transmitter...

  • Page 51: Explosive Atmosphere

    THE HHC • Any modification of the communicators NEVER REPLACE THE BATTERY without the permission of Fuji Electric is strictly prohibited. Fuji Electric will not bear NEVER CHARGE THE BATTERY any responsibility for trouble caused by such ONLY CLEAN THE HHC WITH a modification.
  • Page 52 1. PRESENTATION Reminder : - “II” means that the equipment has been built FCX series Hand Held Communicators (FXW for use in surface industries (and not in Type) comply with the directive 94/9/EC as they mines endangered by firedamp). have been built, for the group IIC, according to - “1”...
  • Page 53 When connecting the hand held communicator, the switch ON/OFF must be on OFF. The HHC has no polarity, and it cannot be connected on CK+ and CK- terminals of FCX series Before connecting a Hand Held transmitters (FCX-AII/FCX-CII or FCX-AIII).
  • Page 54 3.2. Electrical parameters : 5. EC DECLARATION OF CONFORMITY These instruments must only be connected to Fuji Electric Co., LTD. an [ia] or [ib] certified type equipment intended No.1 Fuji-machi, Hino-city for use in potentially explosive atmosphere; Tokyo, 191-8502 in addition, this association has to be intrinsic Japan safety compatible.
  • Page 55 The product conforms to the requirements of the Electromagnetic compatibility Directive 2004/108/ EC. The applicable standards used to demonstrate compliance are :- EMI (Emission): EN 61326-1: 2006 Group 1 Class 1 Limits Reference standard Frequency range 30 to 230 MHz 40 dB (V/m) quasi peak, measured EN55011 at 10 m distance...

  • Page 56: Setting Of Printer Roll Paper

    APPENDIX 3. SETTING OF PRINTER ROLL PAPER (1) Open the cover of the printer case. (2) Place a roll paper in the printer case. Cut the end of the roll paper to form a triangle for easy setting to the cutting side. (3) Tighten the cover and insert the roll paper through the slit on top of the printer until it reaches the cutting side.

  • Page 57: Parts List

    If you have purchased a part, irrespective of Fuji Electric Co., Ltd. and maintained or repaired your instru- ment, Fuji Electric Co., Ltd. will not be responsible for any resultant defect if the product does not fully dis- play its specified functions.
  • Page 58 CONTENTS BLOCK A BLOCK B BLOCK Name of block Page BLOCK A Main ass’y A-17to A-18 BLOCK B Printer ass’y (Option) A-19 to A-20 A - 16...
  • Page 59 BLOCK A Main ass’y A - 17...
  • Page 60 BLOCK A Main ass’y Item No. Parts No. Part Name Q'ty Remarks ZZPFXW1-A010 Upper case ZZPFXW1-A020 Indicating sheet ZZPFXW1-A030 Make-up board ZZPFXW1-A040 Board 0, 1, P.C.B. ass'y ZZPFXW1-A050 2, 3 0, 1, C, H, J, P.C.B. ass'y ZZPFXW1-A051 2, 3 K, L ZZPFXW1-A060 Down case...
  • Page 61 BLOCK B Printer ass’y (option) (the whole) A - 19...
  • Page 62 BLOCK B Printer ass’y (option) Item No. Parts No. Part Name Q'ty Remarks ZZPFXW1-B010 Cover ZZPFXW1-B020 Printer upper case ZZPFXW1-B030 P.C.B. unit Condenser ass'y ZZPFXW1-B040 ZZPFXW1-B050 Printer down case Paper ZZPFXW1-B060 ZZPFXW1-B100 Printer ass'y A - 20...
  • Page 63 International Sales Div Sales Group Gate City Ohsaki, East Tower, 11-2, Osaki 1-chome, Shinagawa-ku, Tokyo 141-0032, Japan http://www.fujielectric.com Phone: 81-3-5435-7280, 7281 Fax: 81-3-5435-7425 http://www.fujielectric.com/products/instruments/...
