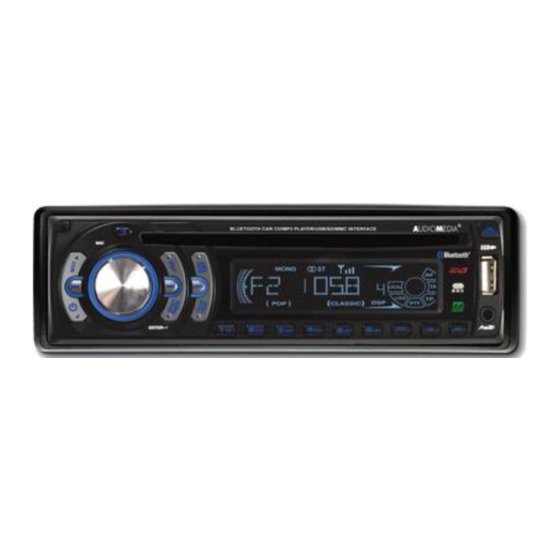

- Page 1 USER’S MANUAL AMD 808BT BLUETOOTH CD/MP3 PLAYER WITH RADIO AM/FM RDS USB-SD/MMC BUILT IN 10R-02 1005...
- Page 2 AMS/ DISPLAY/ FUNCTION PANEL ID3 TAG SELECT EJECT RELEASE TALK MENU INFORMATION BUTTON SLOT BUTTON BUTTON BUTTON BUTTON BUTTON MONO LOCAL LOUD CLASSIC ENTER POWER BAND/ ENCODER DIRECTORY BUTTON BUTTON VOLUME LOUDNESS/ PAUSE SCAN REPEAT SHUFFLE UP/ DOWN BUTTON BUTTON INPUT BUTTON KNOB...
-
Page 3: Handling Compact Discs
HANDLING COMPACT DISCS MOISTURE CONDENSATION On a rainy day or in a very damp area, moisture may condense on the lenses inside the unit. Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for about an hour until the moisture has evaporated. -
Page 4: Installation
INSTALLATION Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and system work properly. Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions. -
Page 5: Din Rear-Mount (Method B)
DIN REAR-MOUNT (METHOD B) Installation using the screw holes on the sides of the unit. Fastening the unit to the factory radio mounting bracket. 1. Select a position where the screw holes of the bracket and the screw holes of the main unit become aligned (are fitted) and tighten the screws at 2 places on each side. -
Page 6: Electrical Connection
ELECTRICAL CONNECTION a. Make sure your car battery is a 12 volt (6 filler caps) negative ground system (if not, a converter will be necessary). b. Before starting wiring connections, disconnect the power supply by removing the fuse from the fuse box. c. -
Page 7: Audio Operations
RESET BUTTON The RESET button is located on the main unit (as shown on the diagram). To press it vertically with a ballpoint pen or metal object will activate it. The reset button is to be activated for the following reasons: Initial installation of the unit when all wiring is completed. - Page 8 AUTO MEMORY STORE/PRESET SCAN BUTTON (AMS) 1.PRESET SCAN: Press AMS button briefly enter Preset Scan mode, it will scan all the preset stations in the memories, you can hear that will stay on each station for about 5 seconds. 2.AUTO MEMORY STORE: Press AMS button long to enter Auto Store mode, this feature will automatically scan the current band and enter up to 6 strongest stations into the 6 preset memories.
-
Page 9: Rds Operations
RDS OPERATIONS AF BUTTON Press this button briefly to switch on or off the AF follow mode, the state of the AF follow mode will be indicated on the LCD by the "AF" icon: Icon Off : AF follow mode off Icon On : AF follow mode on and RDS reception OK Icon Flashing : AF follow mode selected, but no RDS data received... -
Page 10: Overview Of The Rds Function
RDS OPERATIONS OVERVIEW OF THE RDS FUNCTION Radio Data System (RDS) is a broadcasting service that allows FM stations to send additional digital information along with the regular radio program signal. Your car stereo offers you a variety of services. Here are just a few: - PI (Program identification) It is a code that identified RDS stations;... -
Page 11: Ta Seek, Ta Alarm
PROGRAMMABLE OPTIONALS To use this function keep press long SEL Button for few seconds, each time you press this button the mode will move and the functions will shown on the display, turn the encoder volume knob up/ down to set the desires functions ,the function states as following: TA SEEK, TA ALARM To determine what action will the radio take if the newly tuned station does not receive TP information for 5 seconds. - Page 12 MMC/SD CARD & USB DEVICE OPERATIONS START THE USB DEVICE MODE P .1 1.The USB mini socket is accessible as indicated in USB SOCKET picture 1.(P .1) 2.Plug in the USB drive / device completely as indicated in picture 2(P .2) and display will show “USB PLAY” to indicate that the USB drive / device is being plugged in correctly &...
-
Page 13: Start The Sd/Mmc Mode
START THE SD/MMC MODE P .4 1.Press panel release button to release the front panel.(P .4) 2.The SD/MMC card slot is located on top of the front panel as indicated in (P .5). 3. Insert the SD/MMC card into the card slot in the correct direction until a “CLICK”... -
Page 14: Mp3 Operations
MP3 OPERATIONS Notes : - An MP3 directory is shown in this manual as “Directory”, and an MP3 file is shown as “Track”. - Maximum length of file name : 28 characters. - Maximum length of directory : 16 characters. - Maximum number of tracks per disc : 254. - Page 15 ID3 TAG Press DISPLAY button repeatedly to Display ID3 TAG information. If the MP3 file is available with ID3 TAG, pressing the display button repeatedly will show information in the following sequence: SONG TITLE > ARTIST> ALBUM TITLE If any of the ID3-TAG information is not available, pressing the DISPLAY button repeatedly will show information in the following sequence: UNKNOWN SONGNAME>...
-
Page 16: Operation
INSTRUCTION FOR HANDFREE FUNCTION SET UP a. Press panel release button to release the front panel. b. The PAIR button is located on bottom right of the front panel as indicated. c. Press PAIR Button about 4 seconds, the LED indicator twinkle rapidly, and it enters into Pairing Mode (Headset or handsfree profile or both). - Page 17 The Bluetooth symbol (...) and the connected symbol (< / >) on the mobile phone will be different from one to another. Please refer lo the corresponding specification. The LED turns on when an audio connection exists (e.g. talking) or when it is ringing. When the main unit turns on, if there is a call incoming, it will auto switch to talk state.
-
Page 18: Specifications
SPECIFICATIONS CD PLAYER Compact disc audio system System Compact disc Usable disc 44.1KHz Sampling frequency 1bit No of quantization bits 5-20,000Hz Frequency 2 stereo Number of channels 70dB S/N Ration RADIO SECTION Frequency Range 87.5-108 MHz 10.7 MHz Intermediate Frequency Better than 15dB at S/N 30 dB Usable Sensitivity 25 dB at 1KHz... -
Page 19: Troubleshooting
TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom Cause Solution If the power supply is properly connected No power The car ignition is not on.
