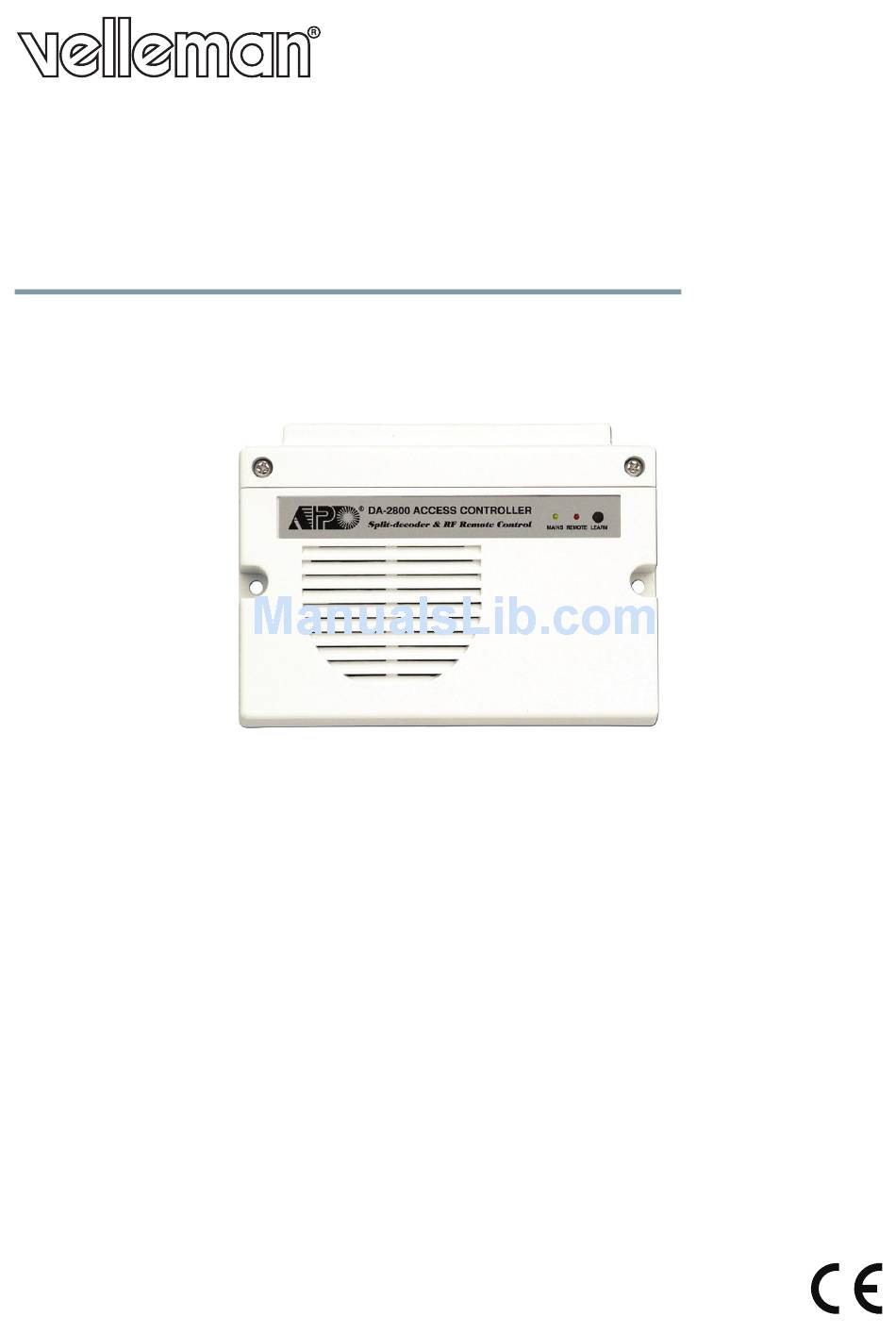

- Page 1 SPLIT-DECODED CONTROLLER FOR HAA28XX SERIES SECURITY KEYPADS HAA2801 Programming & Installation Manual FOR ELECTRIC LOCK, INTER-LOCK AND SECURITY SYSTEM INSTALLATIONS VERSION: 11/2012...
-
Page 2: Table Of Contents
........... 7 Split-Decoded Mode -- (For HAA2800 & HAA2801) . - Page 3 ................3 4 User PIN Entry Mode .
-
Page 4: Introduction
HAA2801 is the simplified version. It is solely a full feature decoder of the HAA28xx series keypad in Split-decoded operation. The HAA2801 has three output relays and a built-in door chime. It is an ideal device for Door Strike, Alarm Arm-disarm control and actuation of Automatic Operator, such as garage door opener. -
Page 5: Specifications
SPECIFICATIONS Operating Voltage: 12V-24V DC, Auto Adjusting Operating Current: 65mA (quiescent) to 100mA (three relays active) Operating Temperature: -20 C to +70 C Environmental Humidity: 5-95% relative humidity non-condensing The Adjustable Timer for Output 1: 1-30 Seconds Power Up Delay: 5 Seconds Tamper Alarm: 3 Minutes... -
Page 6: The Split-Decoded Controller Unit (Figure 1)
THE SPLIT-DECODED CONTROLLER UNIT (Figure 1) CONNECTION LINK-UP TERMINALS JUMPER OFF-->ON-- >OFF CODE LEARNING BUTTON (HAA2800 ONLY) REMOTE INTERNAL CONTROL SIREN SIGNAL & & DOOR CHIME STATUS (HAA2800 ONLY) MAINS THE MAIN CIRCUIT BOARD OF THE CONTROLLER --- (Figure 2) OUTPUT BEEP JUMPER ON OR FUNCTION MODE... -
Page 7: Installation
Check carefully all the wirings are correct before applying power to the system for testing. SPLIT-DECODED MODE -- (for HAA2800 & HAA2801) Split-decoded Mode needs at least one keypad to work with the decoder. The decoder decodes all the commands from the keypad to operate its outputs. -
Page 8: The Necessary Connections For Split-Decoded
THE FUNCTION MODE JUMPER SETTING FOR SPLIT-DECODED -- (HAA2800 ONLY) NOTE: No Function Jumper setting is required for the HAA2801. It is fixed in Split-Decoder mode. 1) Put the “Function Mode Jumper” to position “1” for Split-Decoder. (It is an Ex-factory Setting) The Function Jumper of the HAA2800 has been put on Position 1 at the factory. -
Page 9: The Function Mode Jumper -- (Available On Haa2800 Only)
Example – Change of the Link-up Code ( The Master Code of the Master Keypad) a) Put the Link-up Jumper of the Decoder from OFF to ON b) Set the Master Keypad to Programming Mode EXISTING MASTER CODE c) Set a New Master Code to the Master Keypad NEW MASTER CODE d) Set the Master Keypad to exit from Programming Mode e) The Link-up in the system is done automatically... -
Page 10: Connection Terminals
CONNECTION TERMINALS OUTPUT 1O UTPUT 2O UTPUT 3 NOTE: DRY CONTACT A dry contact means that no electricity is connected to it. It is prepared for free connections. N.C. Normally Closed, the contact is closed circuit at normal state. It is open circuit when active. N.O. - Page 11 1 - 2 : 12-24V DC I/P -- (Power Input Terminal) Connect to a 12-24V DC power supply. The (-) supply and the (-) GND are the common grounding points of the system. The system accepts full input voltage range. 3 : KEYPAD POWER O/P -- (Power Output for External Keypads –...
- Page 12 10 : DOOR SENS N.C. -- (Door Position Sensing Input -- Normally Close) A Normally Closed (N.C.) sensing point referring to (-) ground, with the help of a normally closed magnetic contact monitors the open or close state of the door. It initiates the following functions for the system.
- Page 13 19 - 20 - 21 : OUTPUT 3 -- (Output Relay 3) 1 Amp relay dry contact controlled by the Group 3 User PINs & Cards in Split-decoded mode or by the RF remote key in Stand Alone mode. It is an auxiliary output ideally for controlling of security system or automatic operator.
-
Page 14: The Audible & Visible Signals
THE AUDIBLE AND VISIBLE SIGNALS STATUS AUDIBLE SIGNALS MAINS LED SIGNALS 1) Power-up Delay (5 Seconds) Continuous Beeps Continuous Fast Flashes 2) Power-up Delay (1 Minute)* Continuous Beeps Continuous Fast Flashes 3) System In Standby Mode 1 Flash / Second 4) System In Standby Mode* 5) Keypad In Programming Mode 1 Flash / Second... -
Page 15: Rf Remote Controller -- (Haa2800 Only)
RF REMOTE CONTROLLER -- (HAA2800 ONLY) The HAA2800 RF Remote Controller consists of a built-in receiver and two remote control keys, which has 4 channels to control the Output Relay 1, 2, 3 and the built-in door chime. Two remote keys are supplied and up to 40 remote keys can be accommodated by the system. -
Page 16: Application Examples
APPLICATION EXAMPLES 1) BASIC WIRINGS OF A SPLIT-DECODED DOOR LOCK OUTPUT 1 OUTPUT 2 OUTPUT 3 N.C. N.O. OUTPUT RELAY 1 N.O. Output for Fail-secure Lock N.C. Output for Fail-safe Lock AD-1312 OR AP-960 ELECTRIC LOCK 1N4004 CATHODE DIGITAL KEYPAD N.O. -
Page 17: Basic Wirings Of An Inter-Lock System Using Two Split-Decoded Keypads
2) BASIC WIRINGS OF AN INTER-LOCK SYSTEM USING TWO SPLIT-DECODED KEYPADS - ALARM O/P - KEY ACT O/P - N.O. - COM - N.C. - N.O. - COM - N.C. - N.O. - COM - N.C. - TAMPER - GND(-) - DOOR SENS - O/P 1 INHIB - INT. -
Page 18: Application Hints For The Auxiliary Terminals
APPLICATION HINTS FOR THE AUXILIARY TERMINALS (A) TAMPER N.C. The tamper switch is Normally Closed while the TAMPER SWITCH keypad is secured on the gang box. It is open OF THE KEYPAD when the keypad is removed from the gang box. - Page 19 (D) KEY ACTIVE OUTPUT ALARM ALARM KEY ACT KEY ACT The Key Active Output switches to (-) ground Only one connection option is recommended. for 10 seconds whenever a key is touched. Make sure the sink current does not exceed You may use it to turn ON an LED lamp and the maximum rating of 100mA.
- Page 20 (F) OUTPUT 2 OR OUTPUT 3 ( i ) Shunting an N.C. Zone Use the Normally Open (N.O.) output contact to shunt a Normally Closed (N.C.) protection zone of an alarm system. Set output contact to Start / Stop Mode (Programming Option 52, Output Mode=0). ( ii ) Alarm System Arm-Disarm Control Use the (N.O.) or (N.C.) output contact to make arm-disarm control of an alarm system.
-
Page 21: Programming For Full Features
PROGRAMMING FOR FULL FEATURES --- (Supplementary Information) In the Split-decoded operation mode, the keypad becomes a data entry tool of the system and its Data I/O port always gives full feature data to the decoder. A keypad of simplified version also gives full features in Split-decoded mode. -
Page 22: Direct Access To Programming Mode With The "Dap" Code - 8 0 8 0
DIRECT ACCESS TO PROGRAMMING MODE WITH THE “DAP” CODE – 8 0 8 0 Set System Into Programming Mode With DAP Code In Case Of The Master Code Is Forgotten ! ! The owner requires to apply the following procedures precisely to set the system into programming mode with the DAP code 8 0 8 0. -
Page 23: The Default Values Of The Keypad
REFRESH THE SYSTEM WITH THE “REFRESHING CODE” --- 9 9 9 9 The system can be refreshed to clear all the old data stored and back to its ex-factory default values. IMPORTANT NOTE: Make sure that you really want to clear ALL the OLD data before entering of the Refreshing Code. The keypad will be back with its default values like a new unit. -
Page 24: Feature Programming -- Key In And Store The Desired Values
FEATURE PROGRAMMING -- KEY IN AND STORE THE DESIRED VALUES The feature values can be set and stored into the system one by one with the desired Programming Locations. Programming can be made continuously and it is not necessary to be in sequence order. Just go to the desired programming location and key in the value for the desired feature. -
Page 25: Record A Master Code
Example: User Name Location Function Code User ID PIN/Code Card # Remark 1,000 RECORD A MASTER CODE --For Both Master & Slave Keypads (Location 01) LOCATION MASTER CODE VALIDATION 4 to 8 Digits INDIVIDUAL MASTER CODE Master Code is the authorization code for setting the system to programming mode. It is NOT an User Code operating of the output relays. -
Page 26: Operation And Functions Of The Super User Pin
OPERATION AND FUNCTIONS OF THE SUPER USER PIN 1) Operate Output 1, 2, and 3 The operation of the Super User PIN is just like a normal User PIN. Simply key-in the PIN with a specific output number for the desired Output. The Super User PIN can also be used to reset an operating output timer instantly. -
Page 27: Record-Delete Pins Or Cards For Output 1, 2, & 3
RECORD-DELETE PINS OR CARDS FOR OUTPUT 1, 2, & 3 (Locations 10, 20 & 30) Total of 1,200 User PINs and/or Cards are available for the 3 user groups to control the 3 outputs. 1) 1,000 ---- for Output 1 (Group 1) 2) 100 ------ for Output 2 (Group 2) 3) 100 ------ for Output 3 (Group 3) The Private User PINs and Cards in the 3 user groups MUST be unique. -
Page 28: Examples - Programming And Operation
EXAMPLES – PROGRAMMING AND OPERATION 1) Example 1 -- EM Card Only : i) Programming : 10 1 001 Read Card (a) The card is programmed for operating of the Output 1 (b) The operation is EM Card only (c) Take ID number 001 in Group 1 to store the card, which is one of the IDs in 000-999 (d) Put the card close to the reader to read it, one beep confirms the reading (e) Press # to store the “Card”... - Page 29 4) Example 4 -- EM Card + Common User PIN : i) Programming : 10 4 003 Read Card The card is programmed for operating of the Output 1 The operation is “EM Card + Common User PIN” Take ID number 003 in Group 1 to store the card, which is one of the IDs in 000-999 Put the card close to the reader.
-
Page 30: Visitor Codes (For Output 1 Only)
Operation : (while the system is in the operation mode) Read Card Duress Code Put the EM card close to the reader. One-beep confirms the reading and 30 seconds waiting time is given for the entry of the Duress Code, the Amber LED keeps flashing Key in one of the Duress Codes for the specific output (the Code programmed in “Location 41, 42, or 43”... -
Page 31: Duress Codes (For Outputs 1, 2 & 3)
Example 3: Delete a “Visitor Code” from Vistor ID in the memory 40 02 # (a) Visitor Code Programming, (b) The Visitor ID, (c) Delete Confirmation Example 4: Clear all “Visitor Codes” from Location 40 0999 # (a) Visitor Code Location, (b) The Deletion Command Code, (c) Confirmation, all Visitor Codes are cleared DURESS CODES (FOR OUTPUTS 1, 2 &... -
Page 32: The Operation And Function Of The Duress Code
Example 2: Set a “Duress Code” with the number of “2 3 9 8 0” for Output 2 42 01 23980 # (a) Duress Code Programming for Output 2, (b) Duress Code ID, (c) The Duress Code, (e) Entry Confirmation Example 3: Delete an Output 1 “Duress Code”... -
Page 33: Configuration Of The Output Modes For Output 1, 2 And 3
CONFIGURATION OF THE OUTPUT MODES OF OUTPUT 1, 2 AND 3 (Locations 51, 52 & 53) The three relay outputs of this keypad are programmable for Start/Stop or Timing modes. Apart from the door access control, alarm arm-disarm control, they are also universal timers for automatic operators in industry with their 99,999 seconds (over 24 hours) programmable timer. -
Page 34: User Pin Entry Mode
USER PIN ENTRY MODE – Auto or Manual (Location 70) LOCATION ENTRY MODES VALIDATION INDIVIDUAL USER PIN ENTRY MODES Two modes 1 and 2 are available for User PIN entry options. The EM Card is always in Auto Entry Mode and is not affected by the selection here. --- Auto Entry Mode Auto Entry Mode requires no pressing of the key following the User PIN for code checking. -
Page 35: Status Led Flashing On-Off During Standby
STATUS LED FLASHING ON-OFF DURING STANDBY (Location 73) LOCATION FUNCTION MODES VALIDATION INDIVIDUAL STANDBY FLASHING ON-OFF Some people find the flashing light of the status LED (the amber LED) is annoying during the keypad is on standby, especially at the night time. The standby flashing can be ON-OFF with the setting here. --- Standby Flashing ON -- (Default) The Status LED gives Standby Flashing all the time during the keypad is on standby. -
Page 36: Intelligent Egress Button - An Unique Feature Of A Contemporary Keypad
INTELLIGENT EGRESS BUTTON – AN UNIQUE FEATURE OF A CONTEMPORARY KEYPAD Most of the keypads for access control are just for controlling of “Going In” from outside. It is not enough for today’s access control systems. In fact, controlling of “Going Out” is also very important in many public passage areas. -
Page 37: Egress Delay, Warning And Alarm
EGRESS DELAY , WARNING AND ALARM (Location 90) LOCATION FUNCTION MODES DELAY TIME VALIDATION MASTER CONFIGURATIONS OF THE EGRESS WARNING AND ALARM Key in the number to enable 1 of the 6 configurations described below: --- Momentary Contact Mode without Warning -- (Default) •... -
Page 38: Door Opening Alarm & Timer
EXAMPLES: Example 1: Set Egress Button in Momentary contact 5 seconds with delay & warning beep (a) Egress function programming, (b) Momentary contact with warning, (c) Delay time of 5 seconds to release door, (d) Entry confirmation Example 2: Set Egress Button in Holding contact of 10 seconds with warning beep (a) Egress function programming, (b) Holding contact mode with warning, (c) Holding time of 10 seconds to release door, (d) Entry confirmation Example 3: Set Egress Button in Momentary contact without delay (This is the default setting) -
Page 39: Close The Programming Mode
CLOSE THE PROGRAMMING MODE Always close programming mode with to set system back to normal Operation after programming. button is equivalent to the button in the keypad with bell button. VALIDATION INDIVIDUAL --------------- System is back to normal operation mode THE OPERATION MODES AND THE WIEGAND OUTPUT (Location 94) Four operation modes are available for the selection. -
Page 40: Programming Summary Chart
THE PROGRAMMING SUMMARY CHART --- (Supplementary Information) ENTRY LIMITS & CODE FACTORY CODE ENTRY FUNCTION LOCATION OPTIONS DEFAULT MASTER CODE Master Code 4-8 Digits SUPER USER PIN Super User PIN 4-8 Digits Common User PIN for COMMON USER PIN 1 O/P 1 Common User PIN for COMMON USER PIN 2... - Page 41 FUNCTION MODE / TIME: Mode = 0---OFF 0, Door 1-999 Seconds Forced Door Forced Open FUNCTION / TIME Warning & Time Open Warning Mode = 0, Propped- Propped-up Warning & FUNCTION / TIME Time up Warning CODE 1 - FUNCTION MODE: 1---Momentary, No warning 2---Momentary, with warning 3---Momentary, with warning +...
- Page 42 • tout produit grand public est garanti 24 mois contre tout date of purchase. vice de production ou de matériaux à dater du jour d’acquisition • Velleman® can decide to replace an article with an equiva- effective ; lent article, or to refund the retail value totally or partially when •...
