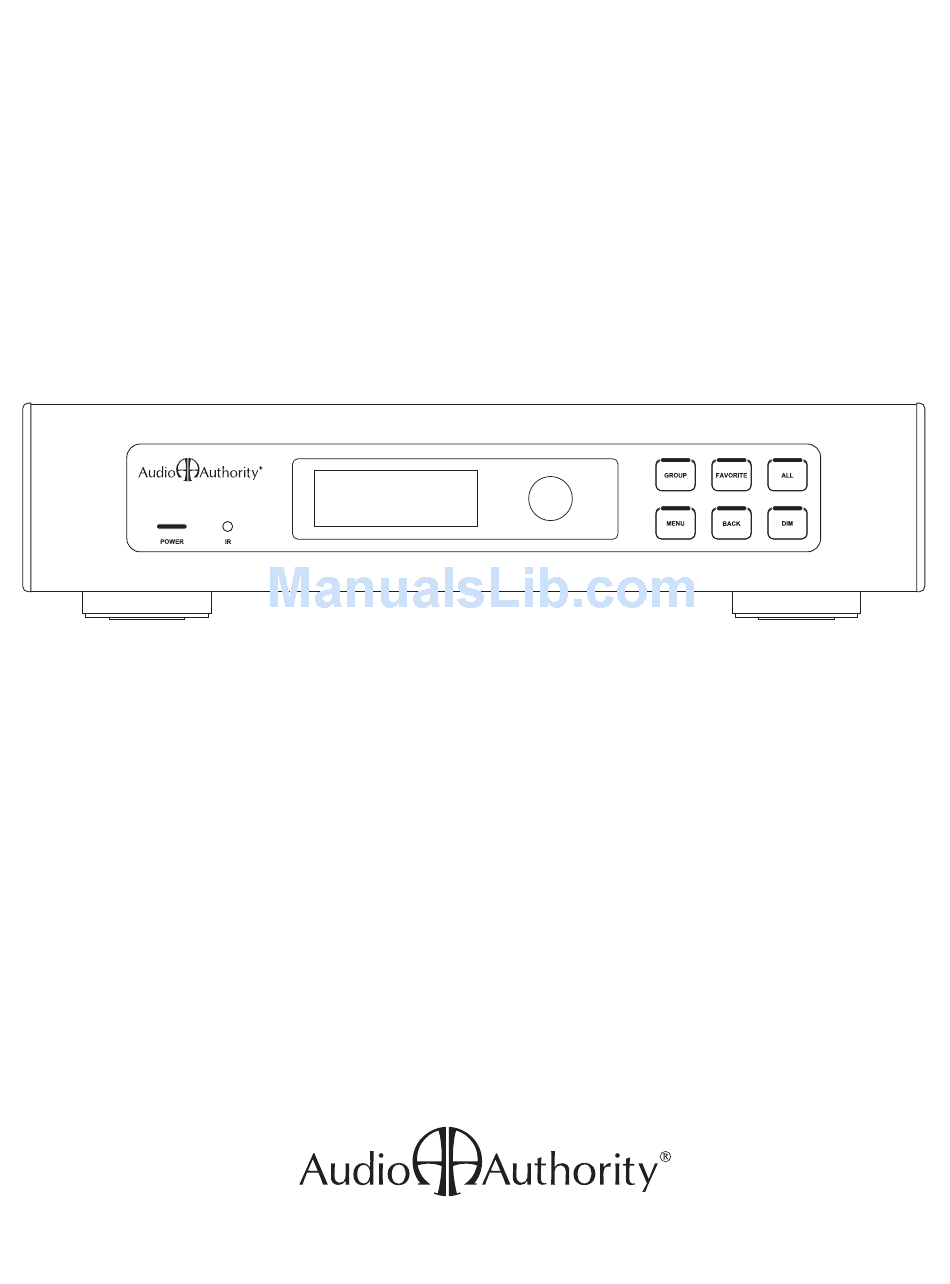

  • Page 1 800-322-8346 • 859-233-4599 www.audioauthority.com OUT TO AMPLIFIER 1- SLEEVE = +12V 18V DC ZONES 9 - 16 2- RING = GROUND POWER RS-232 SERIAL 3- TIP = SIGNAL INPUT 3.5MM ADX Series Audio Matrix Switcher ADX-0808 and ADX-1616 Audio Matrix Systems...
  • Page 2 ADX Serial Number Custom Installer Telephone Number ADX Audio Matrix User Manual...

  • Page 3: Table Of Contents

    Limited Warranty ........24 Audio Authority and the Double-A Symbol are registered trademarks of Audio Authority Corp.

  • Page 4: Introduction

    Key Features • Sixteen source inputs/sixteen zone outputs (ADX-1616) or eight source inputs/eight zone outputs (ADX-0808) • Advanced DSP features per zone output, including 10-band EQ, multiple filters and tone controls (see below) •...

  • Page 5: Panel Descriptions

    ADX Audio Matrix User Manual...

  • Page 6: Getting Started

    2. Connect ADX zone output jacks 1-16 to a multi-channel amplifier OR alternatively, connect the DB-25 audio output to an Audio Authority multi-channel amplifier. (Detailed instructions located in the Installation Section.) 3. Connect the ADX’s power supply to a suitable AC outlet using ONLY the furnished power supply. After a moment, the ADX boots up and is ready to perform switching.

  • Page 7: Installation

    • Telnet Mode - requires a connection via a network or a direct Ethernet connection. 2a. Create A New ADX Configuration: If you are setting up a new ADX, start with “new ADX-0808” or “new ADX-1616”. 2b. Modify An Existing Configuration: If you are modifying an existing setup, import the current setup file.
  • Page 8 Configuration File Page This page provides a quick look at all commands and command descriptions in the existing configuration file, primarily used for diagnostics and troubleshooting. In most cases this information should not be modified. Source/Zone Naming Page This page lists all current Zone and Source Names. To change the names of zones and sources, double click in the appropriate field and type in your changes.
  • Page 9 Zone Audio Controls Page This page includes all software tools required to modify zone-specific DSP settings for the ADX. Below is a summary of each tool: 10-band Zone Equalization (ZQ Mode) 1. Select the zone you wish to adjust 2. Select ZQ Mode from the DSP Mode dropdown menu 3.
  • Page 10 Low-Pass Filter (Low-Pass Mode) This mode is used to turn any zone output into a dedicated mono low- pass output for a subwoofer. Additionally, a low-pass zone output can be grouped with a full range zone output to create a single 2.1 audio zone.
  • Page 11 ADX EQ Presets Page (Continued) Save EQ Preset to an EQ File Occassionaly, it may be desired to save a global preset’s EQ settings to an EQ file so that those settings can be used in future installations. This is accomplished using the following steps: 1.
  • Page 12 Groups Page (Continued) Network Page This page allows you to adjust the following: 1. Network settings (Enable DHCP, IP Address, Network Mask & Gateway). 2. Lockouts (Front Panel Buttons & Front Panel IR). 3. Display brightness. ADX Audio Matrix User Manual...

  • Page 13: Operation

    INPUT OUTPUT ETHERNET LINK OUT TO AMPLIFIER ZONES 1 - 8 SPEED OPERATION Model ADX-1616 Audio Matrix INPUT OUTPUT Front Panel 800-322-8346 • 859-233-4599 www.audioauthority.com OUT TO AMPLIFIER 1- SLEEVE = +12V 18V DC 2- RING = GROUND ZONES 9 - 16 RS-232 SERIAL POWER 3- TIP = SIGNAL...

  • Page 14: Network Settings

    Volume Adjusts the volume level (measured in dB) for each zone output. Displays real-time zone output level meters and source selection. Scroll past 0 db to set a zone output to “fixed.” See page 10 for more information on fixed volume applications. Equalizer (ZQ Mode and EQ Preset Mode) Use to switch between ZQ Mode (10-band zone EQ) or EQ Preset Mode (10 Global EQ presets assignable to any zone).

  • Page 15: Firmware Update

    Display Settings Shows current settings for the front panel display: Sleep timer (screen timeout) and display brightness. The sleep timer can be set to 5, 2 and 1 minute(s) or Disabled. Brightness can be set to 25%, 50%, 75% or 100%. Firmware Versions Displays the firmware versions of the primary firmware and the boot-loader.

  • Page 16: Using Ethernet, Rs-232, And Ir

    USING SERIAL AND ETHERNET (TELNET) Follow the instructions for your Control4, RTI, URC, or other controller to connect to the ADX using the serial settings below, and/or Ethernet settings accessible via the ADX front panel menu. All of the commands listed in Appendix A can be used via telnet or serial connection.
  • Page 17 If the ADX IR codes are available from your remote control company, download and/or activate those files. A CCF file containing the latest codes can be downloaded from the Audio Authority website, www.audioauthority.com/page/ir. Tips for Using Infrared Control • If you are using standard hand-held IR remote controls, ensure correct operation by avoiding sources of light pollution such as Plasma and LCD TVs, direct sunlight, fluorescent light, etc.

  • Page 18: Appendix A: Serial And Telnet Commands

    Appendix A: Serial and Telnet Commands Zone Commands Description Structure Example Reply Result SOURCE SELECT Switch a zone to a source input [CO###I##] [CO1I2] (CO1I2) Zone output 1 is connected to source input 2 Switch all zones to one source [CXI##] [CXI4] (CXI4)
  • Page 19 Zone Commands (Continued) Description Structure Example Reply Result Adjust EQ preset band up/down [EP##B##U] [EP9B1U] (EP9B1L3) EQ preset 9, band 1 increased to +3 dB [EP##B##D] [EP9B1D] (EP9B1L2) EQ preset 9, band 1 decreased to +2 dB Set EQ preset band level [EP##B##L##] [EP2B9L-6] (EP2B9L-6)
  • Page 20 Favorites Description Structure Example Reply Result Connect a favorite [CF##] [CF3] (CF3) Favorite 3 is now connected Add zone/source combination to a [F##AO##I##] [F1AO3I2] (F1AO3I2) Favorite 1 now includes zone 3/source 2 favorite Query a favorite [QF##] [QF10] (F1AO1I3) Query favorite membership and settings. (F1AO3I4) See the favorite adding and naming com- (NF1“Favorite 1...
  • Page 21 Network Settings Adjustment Note: Network settings are stored but not committed until the [EC] command is sent, or ADX power is cycled. The [SAVE] command does not commit network settings. Description Structure Example Reply Result Query current network [QE] [QE] (DHCP1) (IP0.0.0.0) DHCP status, IP address, subnet mask, (Ethernet) settings...

  • Page 22: Appendix B: Upgrading Adx Firmware

    Appendix B: Firmware Update Procedures The latest version of firmware is available for download from www.audioauthority.com/page/firmware. To update version 1.2.0 and later to the latest version: 1. Copy the firmware file (e.g. “adx_v200.s19”) onto a USB drive. 2. Insert the drive in the USB port on the rear panel of the ADX. If you see this screen, make sure the 3.

  • Page 23: Appendix C: Troubleshooting

    • Ensure proper connection and operation of any external IR sensor. If you have applied the above troubleshooting suggestions and are still experiencing difficulties, contact Audio Authority Technical Support by phone at 1-859-233-4599 or toll free within the US at 1-800-322-8346. You can also email Technical Support at support@audioauthority.com.

  • Page 24: Limited Warranty

    Audio Authority guarantees that we will replace the defective product at no cost. Freight charges for the replacement unit will be paid by Audio Authority (Ground service only). A copy of the invoice from an Authorized Reseller showing the item number and date of pur- chase (proof-of-purchase) must be submitted with the defective unit to constitute a valid in-warranty claim.
