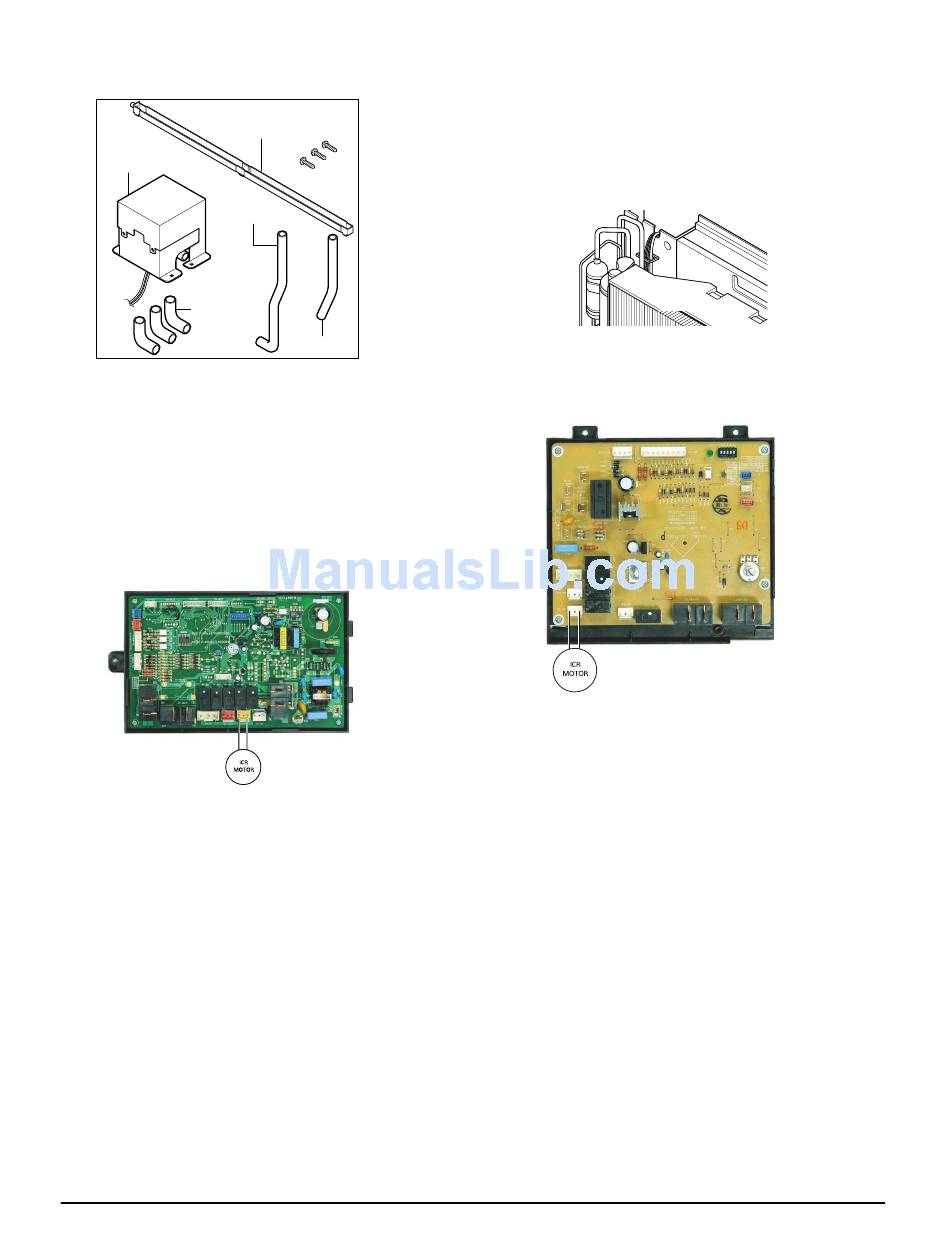

Figure 31
Spraying
Tube
Pump
assembly
Tube #1
Rubber
elbows(3)
14. Connect the condensate pump to the ICR
relay of the terminal of the board as shown
in fig. fig 32 & 34 whichever is applicable
Make sure to fasten the pump wire
through the wire clip on the back side of
the control barrier as shown in fig. 33
Figure 32
BL
Copyright ©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
Tube #2
BL
15. Assembly the unit back following the
reverse order of disassembly.
NOTE: All tube should be inserted into rubber
elbows by at least 1/2 inch
Figure 33
Figure 34
