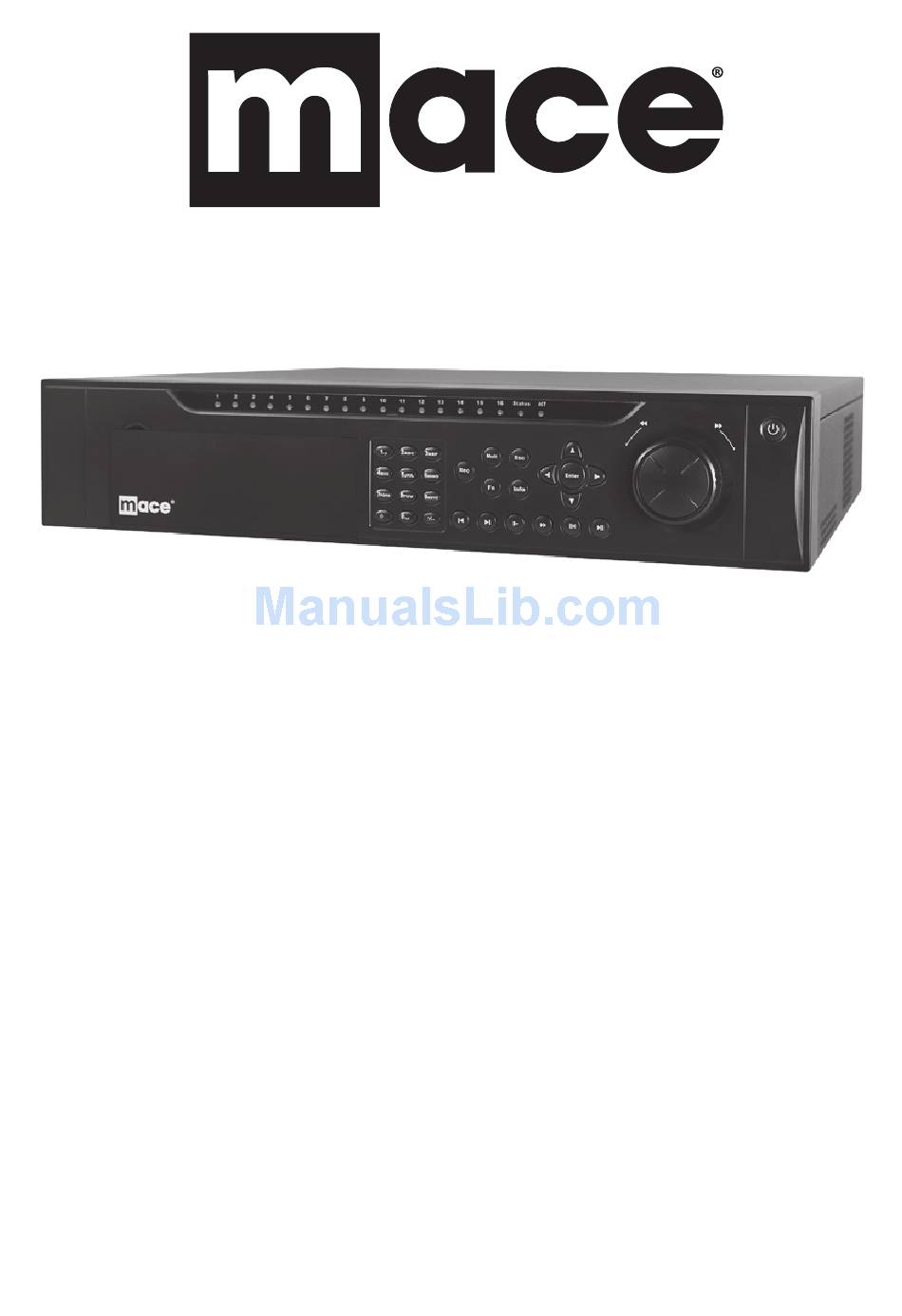

MPR-HQ-800 and MPR-HQ-1600
Thank you for purchasing a MacePro HQ Series DVR. Please read
the instructions completely before installation. Please consult a legal
expert on the proper use of this equipment in accordance with the
law.
Mace Security Products, Inc.
www.macepro.com • (877) 585-6223
Series DVR
Quick Start Guide
Advertisement
Table of Contents
Related Manuals for Mace MPR-HQ-1600 Series
Summary of Contents for Mace MPR-HQ-1600 Series
-
Page 1: Quick Start Guide
Thank you for purchasing a MacePro HQ Series DVR. Please read the instructions completely before installation. Please consult a legal expert on the proper use of this equipment in accordance with the law. Mace Security Products, Inc. www.macepro.com • (877) 585-6223... -
Page 2: Table Of Contents
Table of Contents Hardware Installation and Connection ...........3 Check Unpacked DVR................3 About Front Panel and Real Panel .............3 Rack Installation ................3 Front Panel ..................4 Rear Panel..................6 Connection Sample ................7 Alarm Input and Output Connection ...........8 1.7.1 Alarm Input and Output ..............8 1.7.2 Alarm Input Port .................9 1.7.3... - Page 3 WeLCOMe Thank you for purchasing a MacePro Series Digital Video Recorder. This quick start guide will help you become familiar with our DVR in a very short time. This guide contains information on hardware installation, cable connection and general operations such as system setup, record, search, backup, alarm setup, PTZ operation, as well as web operation instructions.
-
Page 4: Hardware Installation And Connection
HardWare INSTaLLaTION aNd CONNeCTION Note: All the installation and operations here should conform to your local electric safety rules. CHeCk uNPaCked dvr When you receive the DVR from the forwarding agent, please check whether there is any visible damage. The protective materials used for the package of the DVR can protect most accidental clashes during transportation. -
Page 5: Front Panel
FrONT PaNeL The front panel is shown in Figure 1-1 (SQ80 shown). Figure 1-1 Please refer to the following table for front panel button information. Name Icon Function Power Button Power button, press this button for three seconds to boot up or shut down DVR. Input Arabic number Number button Switch channel... - Page 6 Slow play Multiple slow play speeds or normal playback. One-window monitor mode, click this button to display assistant function: PTZ control and image color. Backspace function: in numeral control or text control, press it for 1.5 seconds to delete the previous character before the cursor.
-
Page 7: Rear Panel
rear PaNeL This series DVR rear panel is shown as below. See Figure 1-2. (HQ1600 Shown) Figure 1-2 Please refer to the following table for detailed information Power button Power input port Loop video output 1st to 4th - channel audio input Video input DB25 port (5th to 16th - channel audio input port) -
Page 8: Connection Sample
CONNeCTION SaMPLe Please refer to Figure 1-3 for connection example. Figure 1-3... -
Page 9: Alarm Input And Output Connection
aLarM INPuT aNd OuTPuT CONNeCTION There are two alarm input types for you to select: normal open (NO) and normal close (NC). 1.7.1 aLarM INPuT aNd OuTPuT deTaILS Refer to the following table and Figure 1-4 for alarm input and output information Figure 1-4 In the first line, from the left to the right,: ALARM 1 to ALARM 16. -
Page 10: Alarm Input Port
1.7.2 aLarM INPuT POrT Please refer to the following diagram for more information. • 4/8/16-ch grounding alarm inputs. (Normal open or Normal close type) • Please parallel connect COM end and GND end of the alarm detector (Provide external power to the alarm detector). •... -
Page 11: Overview Of Navigation And Controls
2 OvervIeW OF NavIgaTION aNd CONTrOLS Before operation, please make sure: • You have properly installed HDD and all the cable connections. • The provided input power and the device power are matched. • The external power shall be: AC90~264V 50+2% Hz •... -
Page 12: Main Menu
2.1.2 MaIN MeNu After you logged in, the system main menu is shown as below. See Figure 2-2. There are six icons: search, information, setting, backup, advanced and shutdown. You can move the cursor to highlight the icon, and then double click mouse to enter the sub- menu. -
Page 13: Auto Resume After Power Failure
2.1.4 auTO reSuMe aFTer POWer FaILure The system can automatically backup video and resume previous working status after power failure LIve vIeWINg After logging in, the system is in live viewing mode by default. You can see system date, time and channel name. -
Page 14: Manual Record
Please highlight icon to select the corresponding function. After completing the setup, click the save button. The system will go back to the previous menu. At the bottom of the menu, there are color bars for your reference. GREEN stands for regular recording, YELLOW stands for motion detection and RED stands for alarm recording. -
Page 15: Encode
eNCOde Encode interface is shown as in Figure 2-7. • Channel: Select the channel you want. • Compression: System supports H.264. • Resolution: System supports various resolutions, you can select from the dropdown list. This series main stream supports D1/HD1/BCIF/CIF/QCIF. The channel extra stream supports CIF/QCIF. -
Page 16: Snapshot
2.5.1 SNaPSHOT 2.5.1.1 Schedule Snapshot In the Encode interface, click the snapshot button to input snapshot mode, size, quality and frequency. In the General interface please input upload interval. In the Schedule interface, please enable snapshot function. Please refer to the following figure for detail information. See Figure 2-8. Figure 2-8 2.5.1.2 Snapshot activation... -
Page 17: Image Ftp
2.5.1.3 Priority Please note the activation of snapshot has a higher priority than schedule snapshot. If you have enabled these two types at the same time, the system will activate snapshot when alarm occurs, otherwise system just operates the scheduled snapshot. 2.5.2 IMage FTP In the Network interface, you can set FTP server information. - Page 18 You can search the corresponding images via Web. See Figure 2-12. Select a file and then click here to view image content. Select search engine here. See the results here. double click the file name, to view the image content. There are max 100 files per page.
-
Page 19: Search And Playback
SearCH aNd PLaybaCk Click the Search button in the main menu, Search interface is shown as below. See Figure 2-13. There are three file types: • R: Regular recording file.- • A: External alarm recording file. • M: Motion detection recording file File List Playback Window Select Playback... -
Page 20: Playback Operation
2.6.1 PLaybaCk OPeraTION There are various search modes: video type, channel number or time. The system can max display 128 files in one screen. You can use page up/down button to view if there is more than one page. Select the file name and double click mouse (or click enter button), to view file content. 2.6.1.1 Playback Mode There are two playback modes: 4-ch and all-channel. -
Page 21: Slow Playback And Fast Playback
2.6.7 SLOW PLaybaCk aNd FaST PLaybaCk Please refer to the following table for slow play and fast playback function. button Illustration remarks Fast play button ►► In playback mode, click this button to switch between various fast play modes such as fast play 1,fast play 2 and more. -
Page 22: Network Setup
Note: All the operations here (such as playback speed, channel, time and progress) have relationship with the DVR series. Some series DVR’s do not support some functions or playback speeds. NeTWOrk SeTuP This panel is for the input network information. See Figure 2-15. •... -
Page 23: Pan/Tilt/Zoom
PaN/TILT/ZOOM Please note: • Slight differences may be found in the user’s interface, due to various protocols. • Please make sure the speed dome A/B cables are properly connected to the A/B ports of the DVR. • You have properly set all PTZ information. •... - Page 24 Click Pan/Tilt/Zoom, the interface is shown as below. See Figure 2-18. Set the following items values in this panel: • Step: value ranges from 1 to 8. • Zoom • Focus • Iris Click icon to adjust zoom, focus and iris. Figure 2-18 In Figure 2-18, please click directional arrows (See Figure 2 19) to adjust PTZ position.
-
Page 25: Intelligent Positioning Key
2.8.3 3d INTeLLIgeNT POSITIONINg key In the middle of the eight direction arrows, there is a 3D intelligent positioning key. See Figure 2-20. Please note, this function needs protocol supported and can only be operated by mouse. Click this key and the system goes back to the single screen mode. Drag the mouse on the screen to adjust section size. -
Page 26: Web Operation
3 Web OPeraTION Slightly difference may be found in the interface due to different series. NeTWOrk CONNeCTION Before web operation, please check the following items: • Network connection is set up correctly • DVR and PC network setup is correct. Please refer to network setup (main menu->setting->network) •... -
Page 27: Main Window
MaIN WINdOW After log in, the main window will display. See Figure 3-2. Click the channel name on the left side to view the real-time video. For detailed operation information, please refer to the User’s Manual included in the resources CD. Figure 3-2 Note: •... - Page 28 Mace Security Products, Inc. 5101 NW 21st Ave, Suite 210 • Fort Lauderdale, FL 33309 • (877) 585-6223 v.10.27.10...
