Stealthbox SB-T-TUNCNSL/10W3 Owner's Manual

Jl audio car audio/video owner's manual

Installation of this Stealthbox requires professional installation skills and tools. Please read this installation guide

thoroughly before beginning the project. It will guide you step by step through the installation. It is absolutely

vital that the enclosure be properly mounted to the vehicle according to these instructions. Failure to mount

the enclosure properly presents two problems: 1) The sub-bass performance will suffer due to the movement

of the enclosure and 2) A loose enclosure presents a serious safety hazard in the event of a collision or sudden

deceleration.

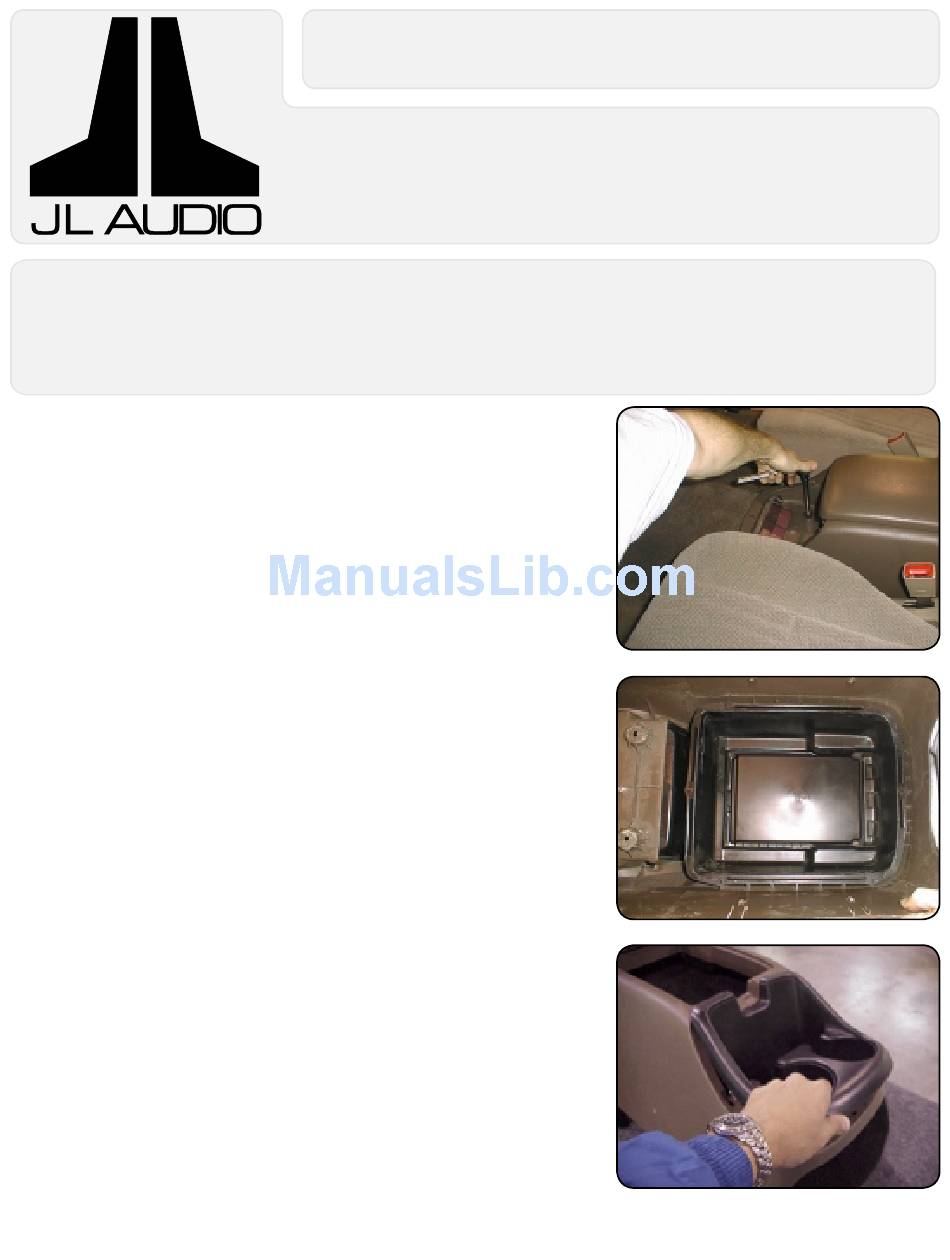

STEP 1: Remove the console's front tray to expose the

front bolts. Remove the bolts.

STEP 2: Open the storage area lid and locate the two bolts

inside the storage area. Remove the bolts.

STEP 3: Remove the console from the vehicle.

STEP 4: With the console out of the vehicle, remove the

bottom half of the storage area. The top half will remain

in place as shown in Picture #2.

STEP 5: Position the console shell over the Stealthbox.

STEP 6: Reinstall the front tray into the console.

Stealthbox SB-T-TUNCNSL/10W3

STEALTHBOX

SB-T-TUNCNSL/10W3

Fits 1999-UP Toyota Tundra with bucket seats/console

Stealthbox 2001

Sheet SKU# 011150

Picture #1

Picture #2

Picture #3

Revision 01/23/01
