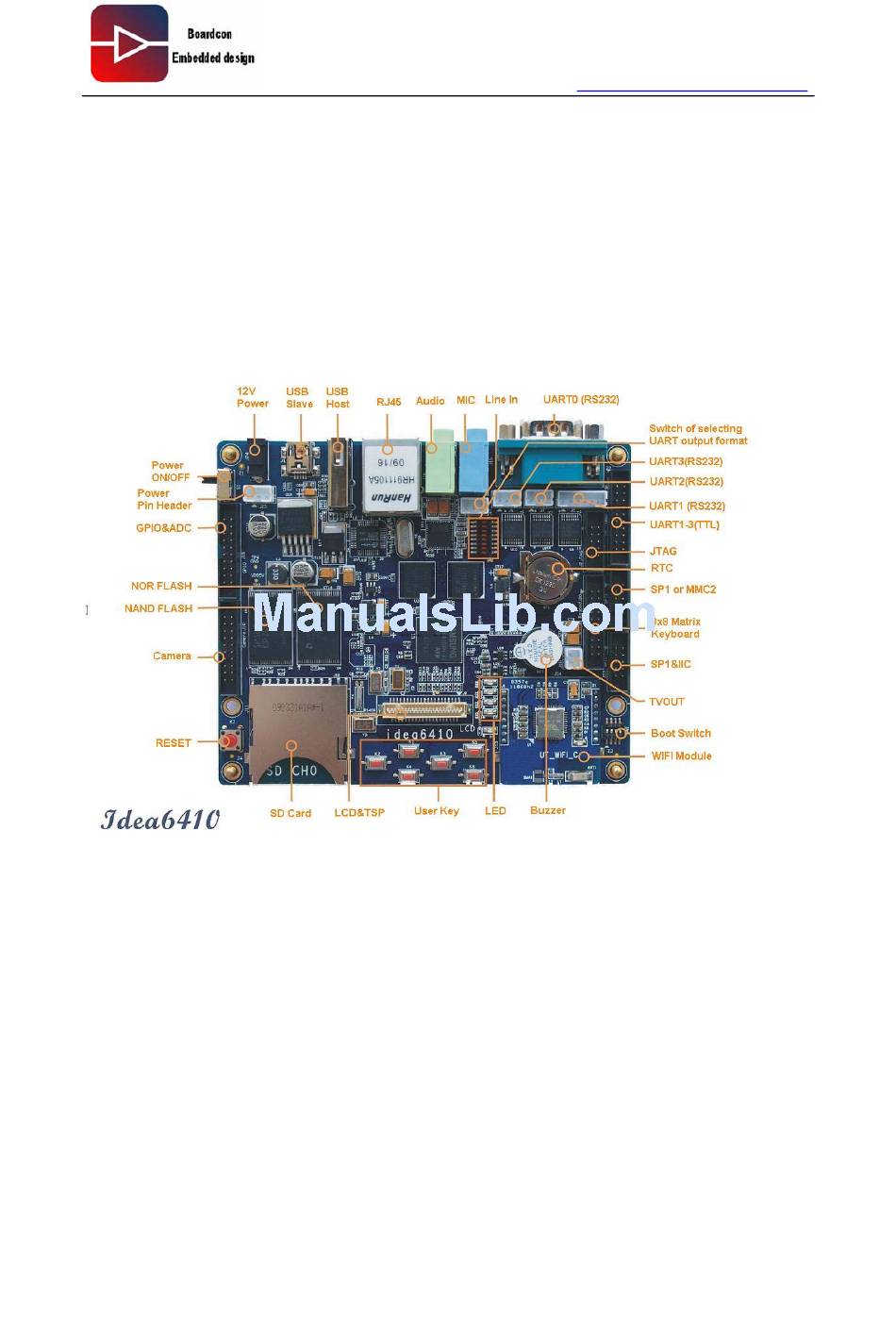

  • Page 1 Idea6410 Single Board Computer Hardware Reference Guide IDEA6410 Hardware Reference Guide...
  • Page 2 Boardcon warrants this product to be free of defects in material and workmanship for a period of one year from date of buy. During this warranty period Boardcon will repair or replace the defective unit in accordance with the following process: A copy of the original invoice must be included when returning the defective unit to Boardcon.

  • Page 3: Table Of Contents

    OWER ELECTRICAL CHARACTERISTICS AND POWER TIME SEQUENCE OF 2.3. IDEA6410 P ................11 OWER UPPLY BLOCK DIAGRAM 2.4. B ................12 OOTLOADER STARTUP CONFIGURATION MODE 3. IDEA6410 HARDWARE DESIGN AND INTERFACES DESCRIPTION ........14 3.1. N ..........................14 LASH 3.2. DDR RAM...........................15 3.3. N ..........................15 LASH 3.4.

  • Page 4: Overview

    Pocket PC's and smartphones, This computer allows easy embedded application development through PC-Compatible tools and methods, while ensuring in-field reliability and ruggedness for end-user systems.Idea6410 run without fans or heat sinks in the temperature range of -20° to +70°C. Other chip-level features include 4 UARTs, SPI, I2C, a real-time clock with a separate power domain, and NAND Flash and DDR memory controllers.
  • Page 5 . SD/MMC interface (supports 3.3V and 1.8V logic voltage) . Camera interface (10x2 pins header, supporting the mode of ITU-R 601/656 8bit) . One 5x2 pins JTAG interface . Seven buttons (Reset, Boot, User defined, On/Off) . TVOUT IDEA6410 Hardware Reference Guide...

  • Page 6: Idea6410 Block Diagram

    1.2. IDEA6410 Block Diagram IDEA6410 Hardware Reference Guide...

  • Page 7: Idea6410 Power Design

    2.1. Power Supply for IDEA6410 2.1.1. Power Supply ways The IDEA6410 power design adopts distributed fabric, adopting absolute power chip to power supply respective for S3C6410 and peripheral devices. The main chip S3C6410 runs on frequency at 533MHz, the CPU board is supplying power for CPU with 1.1V ARM Kernel power VDD_ARM, 1.3V PLL-VCC and startup power of the...

  • Page 8: Voltage Value On Circuit Dot

    Below picture-3 shows the schematic drawing. Picture-3 2.1.3. Voltage value on circuit dot . VDD_5V: 5V, VDD_IO: 3.3V VDD_OTG: 3.3V VDD_OTGI: 1.2V VDD_Alive: 1.2V VDD_INT: 1.3V VDD_ARM: 1.2V VDD_RTC: 3V VDD_ADC: 3.3V VDD_MDDR: 1.8V VDD_AC97:3.3V VDD_WIFI: 3.3V IDEA6410 Hardware Reference Guide...

  • Page 9: Power Electrical Characteristics And Power Time Sequence Of S3C6410

    2.2. Power electrical characteristics and power time sequence of S3C6410 IDEA6410 Hardware Reference Guide...
  • Page 10 IDEA6410 Hardware Reference Guide...

  • Page 11: Idea6410 Power Supply Block Diagram

    2.3. IDEA6410 Power Supply block diagram IDEA6410 Hardware Reference Guide...

  • Page 12: Bootloader Startup Configuration Mode

    Nand 1111 Internal ROM addressing cycle Flash is 4 clock 2048k page size, Nand 1111 Internal ROM addressing cycle Flash is 4 clock 2048k page size, Nand 1111 Internal ROM addressing cycle Flash is 5 clock IDEA6410 Hardware Reference Guide...
  • Page 13 Picture-2.6 On above picture-2.6, “OM0” is chip S3C6410 clock source select signal. It selects “XTIpll “ when “OM0” is “0”, it select “EXTCLK” when “OM0” is “1”. The IDEA6410 uses “XTIpll”. “SELNAND” is a signal of selecting memory type, it is high level when selects NAND Flash, it is low level when selects ONENAND.

  • Page 14: Idea6410 Hardware Design And Interfaces Description

    3. IDEA6410 Hardware Design and interfaces description 3.1. Nand Flash IDEA6410 Single Board Computer selected SLC Nand FLASH K9F2G08 from Samsung, its size is 256M Bytes, mainly for storage Kernel, application, file system and user data. Additionally, may parts that are footprint and functionally compatible with the Nand Flash devices listed above may also be used with the IDEA6410.

  • Page 15: Ddr Ram

    IDEA6410 adopts ARM AM29LV160DB Nor Flash, the chip S3C6410 maximum supports 27 pieces address singals A0-A26, in which A20-A26 is reused with DDR data signals D20-D26. As IDEA6410 adopted 32bit DDR RAM, there are only 19 pieces line A1-A19 for NOR Flash use. Nor Flash addressing range is 1M Bytes.

  • Page 16: Serial Interface

    RS232 level. The user can use switch SW2 to change the output of serial interface into RS232 or TTL level. There is one piece of standard DB9 port at connector J4, which is specially design for debugging and printing debugging message. Below picture shows circuit of UART0 IDEA6410 Hardware Reference Guide...
  • Page 17 UART1, UART2 or UART3 can be set output into RS232 or TTL by adjusting switch SW2. The pin header J6, J7, J8 is corresponding to UART1, UART2, UART3 for selecting RS232 output, pin header J5 is TTL output for UART1, UART2, UART3. Below picture shows those pin header connectors. IDEA6410 Hardware Reference Guide...
  • Page 18 Below picture is circuit drawing of UART1,UAR2,UART3 IDEA6410 Hardware Reference Guide...

  • Page 19: Interface

    4. Interface 4.1. USB Host USB Host interface supports USB2.0 Full speed and its port is A type/ The port supports U-Disk, USB Keyboard, USB Portal Disc, USB Mouse. Below is its circuit drawing of USB Host. IDEA6410 Hardware Reference Guide...

  • Page 20: Usb Otg

    The USB OTG port type is Mini A/B, below picture is its circuit drawing. 4.3. JTAG The IDEA6410 is equipped with a JTAG interface for downloading program code into the external flash, internal controller RAM or for debugging programs currently executing. The JTAG interface extends out to a 5*2 2.0mm pitch pin header J2.
  • Page 21 Below picture shows the circuit drawing of JTAG. IDEA6410 Hardware Reference Guide...

  • Page 22: Sd Card

    CAM_PD/GPP14(GPIO) can replace IIC. Also added CAM_PD/GPP14 for camera device power management like power off, power save management and so on. Boardcon developed a camera module which can directly connect with the board, and its IDEA6410 Hardware Reference Guide...
  • Page 23 1.3M pixels. More information about the Module, please refer to chapter 5.3. Below pictures are about Camera interface: IDEA6410 Hardware Reference Guide...

  • Page 24: Tft Lcd And Touch Screen Interface

    4.6. TFT LCD and Touch Screen interface The default package for the IDEA6410 Single Board Computer contains a piece of LCD Module, the Module is made from one piece of 4.3inch TFT LCD which spec is Innolux AT043TN24, one piece of Touch Screen and one piece of converter board. The module is connected with the board via a 41pin 0.5mm pitch FPC cable at connector J9.
  • Page 25 IDEA6410 Hardware Reference Guide...

  • Page 26: Reset Key

    4.7. Reset key IDEA6410 adopts reset chip MAX811T. IDEA6410 Hardware Reference Guide...
  • Page 27 Below pictures are circuit drawing of reset. IDEA6410 Hardware Reference Guide...

  • Page 28: Audio Interface

    4.8. Audio interface IDEA6410 adopts internal controller AC97 BUS to connect external audio chip WM9714. The board has connectors Line out(J16), Line in(J17) and MIC in(J15). Below pictures are about Audio interface. IDEA6410 Hardware Reference Guide...

  • Page 29: Buzzer

    4.9. Buzzer IDEA6410 has one piece of DC Buzzer. It adopts NPN dynatron SS8050 to amplify the driver current for buzzer. The buzzer is controlled by signal PWM1_GDF15. IDEA6410 Hardware Reference Guide...
  • Page 30 Below is circuit drawing about Buzzer IDEA6410 Hardware Reference Guide...

  • Page 31: 100M Ethernet Interface

    CPU interrupt signal EINT7 On the process of the development, the interface can connect with PC via cross Ethernet line to download WinCE Image, Linux Kernel and File System. Below circuit drawing is about Ethernet interface. IDEA6410 Hardware Reference Guide...
  • Page 32 IDEA6410 Hardware Reference Guide...

  • Page 33: Tvout Interface

    4.12. TVOUT interface The IDEA6410 has a 2-pin 2.0 pitch TVOUT interface at connector J18. Below pictures are about TVOUT interface. 4.11. High Speed SPI, MMC2 and I2C interface The IDEA6410 has two SPI interfaces and one I2C interface. They adopts 2.0mm pitch space biserial dip connector J21 and J23, in which J22 contains SPI1 and MMC2, J23 contains SPI0,IIC and GPIO.

  • Page 34: User Buttons And Leds

    There are 6 pieces of user button, and 4 pieces of LED. User buttons and LEDs are controlled by GPIO, it accepts interrupt mode and query mode.The user can program them according to requirement. LED on indicates high level, LED off indicates low level. IDEA6410 Hardware Reference Guide...

  • Page 35: Gpio And Adc

    S3C6410 has totally 186 GPIO. The GPIO can be set as multiplex use, output port , input port , external interrupt and special function. But this group GPIO K, L, M, N can not be controlled status under sleep mode, about detail please refer to the chapter GPIO in the IDEA6410 Hardware Reference Guide...
  • Page 36 S3C6410. The IDEA6410 provide 24 GPIO to the user, in which 11 GPIO are at biserial 10*2 pin header connector J25, which also contains 4 ADC and 1 DAC, the customer can use them according to the requirement. The main chip S3C6410 totally has 8 ADC, in which 4 ADC ADC4-ADC7 are used to control Touch Screen.

  • Page 37: Rtc

    4.14. RTC The board is equipped with a battery with type of 1220, when no power supply RTC provides power VDD_RTC for S3C6410. Below circuit drawing is about RTC. IDEA6410 Hardware Reference Guide...

  • Page 38: Matrix Keyboard

    4.15. 8x8 Matrix Keyboard The CPU is built up support matrix keyboard, the maximal limited keys is 8x8. IDEA6410 adopts a biserial 10x2 2.0mm pitch pin header connector J20 for matrix keyboard. Boardcon developed a 4x4 matrix keyboard which can directly connects with the connector J20.
  • Page 39 IDEA6410 Hardware Reference Guide...

  • Page 40: Optional Modules

    The camera is OV9650 and its resolution up to 1.3M pixel. The module uses 8bit data mode. The WinCE6.0 and Linux 2.6.24 driver, test program and application are available now. 5.4. 7 inch TFT LCD Module Boardcon provides one piece of 7 inch TFT LCD Module for customer choice convenient, IDEA6410 Hardware Reference Guide...

  • Page 41: 4*4 Matrix Keyboard And Usb_Hub Module

    41pin 0.5mm pitch FPC cable at connector J9. 5.5. 4*4 Matrix Keyboard and USB_HUB Module Boardcon developed 4*4 Matrix Keyboard and USB_HUB Module for the customer choice and use conveniently. Both devices are connected with the board via a biserial 20-pin 2.0 pitch pace pin header connector.
