HP ProLiant DL140
Generation 2 Server
Installation Sheet
Read instructions completely before beginning
installation procedure
© Copyright March 2005 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only
warranties for HP products and services are set forth in the express warranty
statements accompanying such products and services. Nothing herein should be
construed as constituting an additional warranty. HP shall not be liable for technical
or editorial errors or omissions contained herein.
Intel is a registered trademark of Intel Corporation or its subsidiaries in the
United States and other countries.
HP ProLiant DL140 Generation 2 Server Installation Sheet
Second Edition (March 2005)
Part Number 381739-002

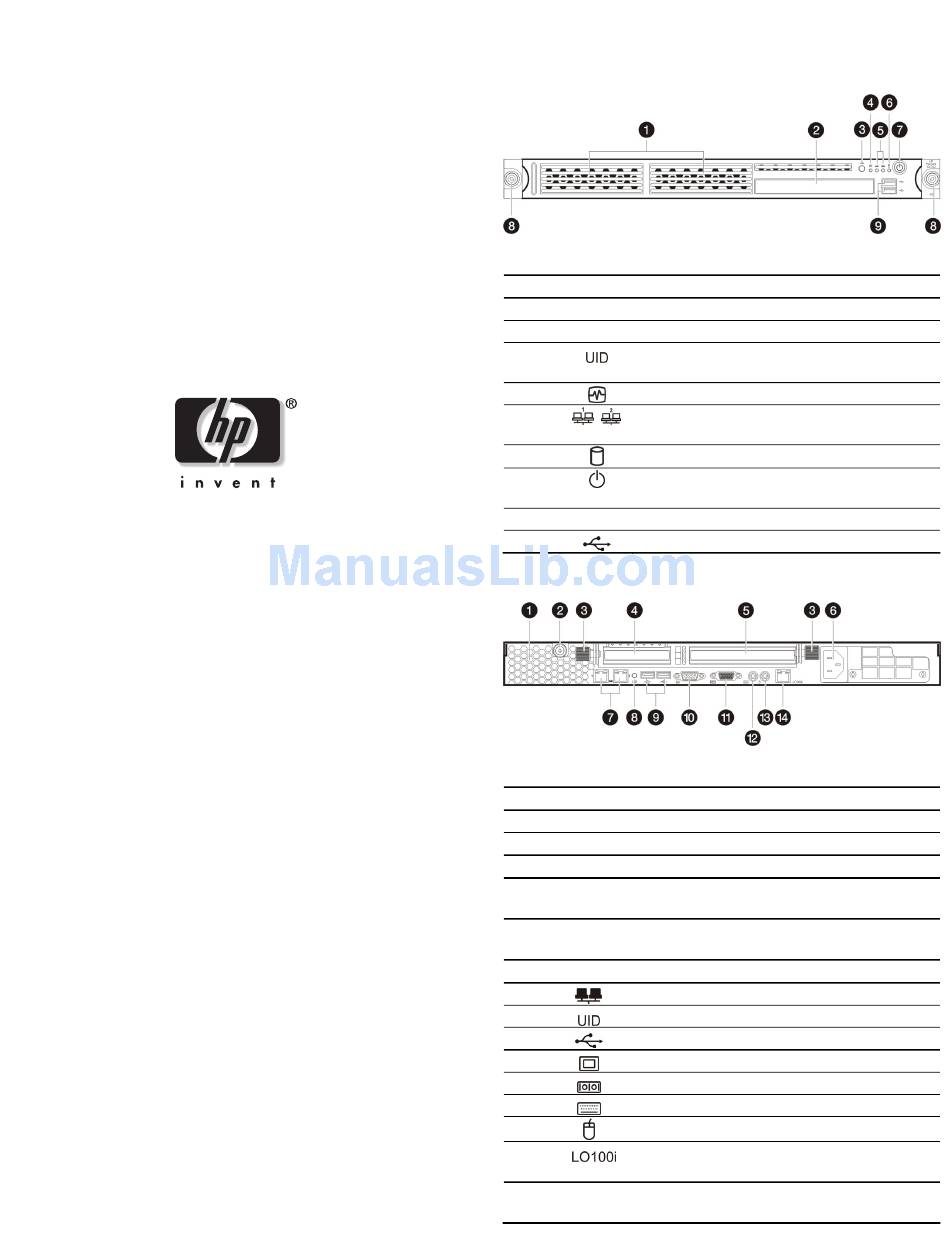

Identifying Server Components

Front Panel Components

Table 1: Front Panel Components
Item
Icon
Component
1
Hard disk drive (HDD) bays
2
Optical media device bay
3
Unit identification (UID) button with LED
indicator (blue)
4
System health LED indicator (amber)
5
Activity/link status LED indicators for NIC 1 and
NIC 2 (green)
6
HDD activity LED indicator (green)
7
Power button with LED indicator
(bicolor: green and amber)
8
Thumbscrews for the front bezel
9
USB 2.0 ports

Rear Panel Components

Table 2: Rear Panel Components
Item
Icon
Component
1
Ventilation holes
2
Thumbscrew for the top cover
3
Thumbscrews for the PCI riser board assembly
4
Low profile 64-bit/133 MHz PCI-X riser board slot
cover
5
Standard height/full-length 64-bit/133 MHz PCI-X
riser board slot cover
6
Power supply cable socket
7
GbE LAN ports for NIC 1 and NIC 2 (RJ-45)
8
UID button with LED indicator (blue)
9
USB 2.0 ports (black)
10
Video port (blue)
11
Serial port (teal)
12
PS/2 keyboard port (purple)
13
PS/2 mouse port (green)
14
10/100 Mbps LAN port for IPMI management
(RJ-45)
NOTE: The three LAN ports each has its own LED indicators for
activity/link status and network speed.
