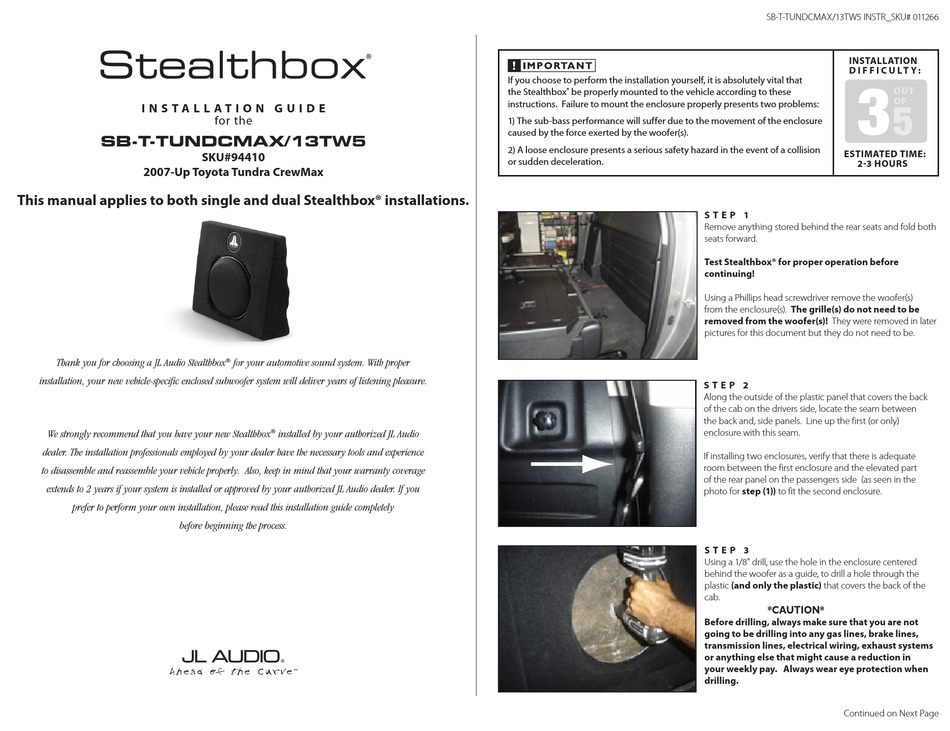

Stealthbox SB-T-TDCMAX/13TW5 Installation Manual

I n s t a l l a t I o n G u I d e
SB-T-TUNDCMAX/13TW5
2007-up toyota tundra CrewMax
this manual applies to both single and dual stealthbox® installations.
Thank you for choosing a JL Audio Stealthbox
installation, your new vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox
dealer. The installation professionals employed by your dealer have the necessary tools and experience
to disassemble and reassemble your vehicle properly. Also, keep in mind that your warranty coverage
extends to 2 years if your system is installed or approved by your authorized JL Audio dealer. If you
prefer to perform your own installation, please read this installation guide completely
before beginning the process.
for the
sKu#94410
® for your automotive sound system. With proper
® installed by your authorized JL Audio
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
SB-T-TUNDCMAX/13TW5 INSTR_SKU# 011266
InstallatIon
d I F F I C u l t Y :
3
estIMated tIMe:
2-3 HouRs
s t e P 1
Remove anything stored behind the rear seats and fold both
seats forward.
test stealthbox® for proper operation before
continuing!
Using a Phillips head screwdriver remove the woofer(s)
from the enclosure(s). the grille(s) do not need to be
removed from the woofer(s)! They were removed in later
pictures for this document but they do not need to be.
s t e P 2
Along the outside of the plastic panel that covers the back
of the cab on the drivers side, locate the seam between
the back and, side panels. Line up the first (or only)
enclosure with this seam.
If installing two enclosures, verify that there is adequate
room between the first enclosure and the elevated part
of the rear panel on the passengers side (as seen in the
photo for step (1)) to fit the second enclosure.
s t e P 3
Using a 1/8" drill, use the hole in the enclosure centered
behind the woofer as a guide, to drill a hole through the
plastic (and only the plastic) that covers the back of the
cab.
*CAUTION*
Before drilling, always make sure that you are not
going to be drilling into any gas lines, brake lines,
transmission lines, electrical wiring, exhaust systems
or anything else that might cause a reduction in
your weekly pay. always wear eye protection when
drilling.
Continued on Next Page
