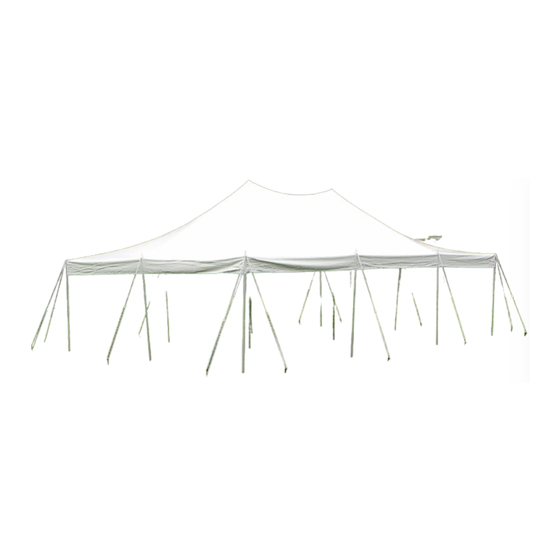

- Page 1 TECHNICAL INSTRUCTION MANUAL: TRADITIONAL PARTY CANOPIES TRADITIONAL PARTY CANOPY Instruction Manual 10'x10' 15'x15' 20'x20' 20'x30' 20'x40' 30'x40' Oval 30'x60' Oval www.eurekapartytents.com ©2014 Johnson Outdoors Gear, Inc. Rev. H - May 2014...
- Page 2 TECHNICAL INSTRUCTION MANUAL: TRADITIONAL PARTY CANOPIES STOP Prior to installing any tent, always make sure you check for overhead and underground obstructions! For safe assembly, we recommend: • Steel Toe Safety Shoes • Hard Hats/Helmets • Safety Gloves • Utility Aprons • Step Ladders • Drop Cloths • Cleaning Supplies • Sledge Hammer ALWAYS READ THE TECHNICAL INSTRUCTION MANUAL COMPLETELY BEFORE BEGINNING. IF YOU HAVE ANY QUESTIONS, PLEASE CONTACT YOUR SALES REPRESENTATIVE OR THE MANUFACTURER BEFORE YOU BEGIN.
- Page 3 TECHNICAL INSTRUCTION MANUAL: TRADITIONAL PARTY CANOPIES Assembly (20'x20' Shown) 1. Inspect the site and make sure the area is level, free of underground utilities and any overhead obstructions. Unload poles and tent bundles. 2. Lay the canopy out, on a ground cloth, with the top side up. Stretch and square the fabric to remove slack. Pull the guy ropes out from the canopy. 3. If this is the first time using your tent, you may need to put the sliders on each rope. To do so, thread a guy rope through one hole in the rope slider. Then, thread the rope through the remaining hole in the rope slider. For the slider to work properly, the guy rope must enter the slider from the same direction/side each time - as illustrated in the picture. Tie a knot in the end of the rope. Repeat with remaining guy ropes and sliders. **Can't find the sliders? Check inside the vinyl tent top bag. FROM SAME DIRECTION 4. Drive the stakes 4' out and at a slight angle away from the canopy. Stake the corners first, using two stakes placed at 90˚ from each corner. Continue staking until all guy ropes are at 4'. Be sure to leave enough slack in the guy ropes to raise the poles. www.eurekapartytents.com ©2014 Johnson Outdoors Gear, Inc. Rev. H - May 2014...
- Page 4 TECHNICAL INSTRUCTION MANUAL: TRADITIONAL PARTY CANOPIES 5. If using sectional aluminum poles, assemble them and make sure each snap button is secured. NOTE: Side poles are two equal length pieces. The top piece has the pin and the bottom piece has a black end cap. Center poles will have a top (pin) piece, middle pieces that are open on top and bottom and a bottom piece with a black end cap. 6. Next, install the side poles from the underside of the canopy. Insert pole pins up through both the grommet and D-ring. 7. Stand the poles up at a 60˚ angle with their base toward the center of the tent. Set the corner poles first, then the side poles. 8. With the all of the side poles set, walk under the tent and insert center pole pin into the grommet at the top of the canopy. With this pin in place, lift and push the pin end skyward and the center pole base toward center of tent to raise the pole and canopy. www.eurekapartytents.com ©2014 Johnson Outdoors Gear, Inc. Rev. H - May 2014...
- Page 5 TECHNICAL INSTRUCTION MANUAL: TRADITIONAL PARTY CANOPIES 9. If your tent has multiple center poles, the first pole base should be angled at 45˚ to center. Raise the remaining center poles. When you have reached the 45˚ angles, you can put a stake at the base of the pole so that it does not slip. Once all center poles are in place, return to the first center pole and adjust to almost vertical. Adjust the other poles to almost vertical until all center poles are raised and adjusted. 10. With all center poles almost vertical, bring them into line. Have someone stand at one end of the tent. Align each center pole as directed by that person. Then align each center pole from the sides of the tent. After all center poles are aligned, go around and straighten all side poles. ** If the center or side poles sink into soft ground, try using small wooden "coasters" under each pole to help prevent it from sinking. 11. If the top of the center pole appears to be leaning toward one end, try these helpful hints: • Tighten guy ropes and straighten side poles, at the end opposite of the lean, to pull the top of the center pole back to vertical. • Straighten and adjust the guy ropes at the other end. Be careful not to pull the center pole out of alignment. HELPFUL • When center poles appear vertical, adjust opposing end side poles simultaneously to HINT avoid drawing the entire tent toward one side. After ends are adjusted and guy ropes are secure, repeat down length of the tent. Again, avoid pulling or drawing entire tent to one side or the other. 12. Once all poles are vertically aligned, secure the center pole by driving a stake into the ground near the base. Tie a jump rope around the center pole and to the stake. If using sidewalls, clip the sidewalls to the sidewall rope on the inside of the valance. Sidewalls overlap approximately 2'. Buckle the ends to insure complete enclosure. NOTE: Severe weather can damage tents. If severe weather is expected, take down the tent and store in a safe area.
- Page 6 TECHNICAL INSTRUCTION MANUAL: TRADITIONAL PARTY CANOPIES 10'x10' PLAN W/STAKES Note: Plan shows suggested staking. Additional stakes will be necessary in soft soil conditions or whenever stakes pull up from the ground. END/ SIDE 2'6" www.eurekapartytents.com ©2014 Johnson Outdoors Gear, Inc. Rev.
- Page 7 TECHNICAL INSTRUCTION MANUAL: TRADITIONAL PARTY CANOPIES 15'x15' 7'6" PLAN W/STAKES Note: Plan shows suggested staking. Additional stakes will be necessary in soft soil conditions or whenever stakes pull up from the ground. END/ SIDE 3'6" www.eurekapartytents.com ©2014 Johnson Outdoors Gear, Inc. Rev.
- Page 8 TECHNICAL INSTRUCTION MANUAL: TRADITIONAL PARTY CANOPIES 20'x20' 7'6" PLAN W/STAKES Note: Plan shows suggested staking. PLAN W/STAKES Additional stakes will be necessary in soft soil conditions or whenever stakes pull up from the ground. END/ SIDE 3'6" 5' 6" END/ SIDE 5'6"...
- Page 9 TECHNICAL INSTRUCTION MANUAL: TRADITIONAL PARTY CANOPIES 20'x30' PLAN W/STAKES 5'6" Note: Plan shows suggested staking. 5'6" Additional stakes will be necessary in soft soil conditions or whenever stakes pull up from the ground. SIDE SIDE 12'6" 12'6" www.eurekapartytents.com ©2014 Johnson Outdoors Gear, Inc. Rev.
- Page 10 TECHNICAL INSTRUCTION MANUAL: TRADITIONAL PARTY CANOPIES 20'x40' PLAN W/STAKES Note: Plan shows 5'6" suggested staking. Additional stakes will be necessary in soft soil conditions or whenever stakes pull up from the ground. SIDE 12'6" www.eurekapartytents.com ©2014 Johnson Outdoors Gear, Inc. Rev. H - May 2014...
- Page 11 TECHNICAL INSTRUCTION MANUAL: TRADITIONAL PARTY CANOPIES 30'x40' OVAL PLAN W/STAKES Note: Plan shows suggested staking. Additional stakes will be necessary in soft soil conditions or whenever stakes pull up from the ground. SIDE www.eurekapartytents.com ©2014 Johnson Outdoors Gear, Inc. Rev. H - May 2014...
- Page 12 TECHNICAL INSTRUCTION MANUAL: TRADITIONAL PARTY CANOPIES 7'6" 30'x60' OVAL PLAN W/STAKES Note: Plan shows suggested staking. Additional stakes will be necessary in soft soil conditions or whenever stakes pull up from the ground. SIDE www.eurekapartytents.com ©2014 Johnson Outdoors Gear, Inc. Rev. H - May 2014...
