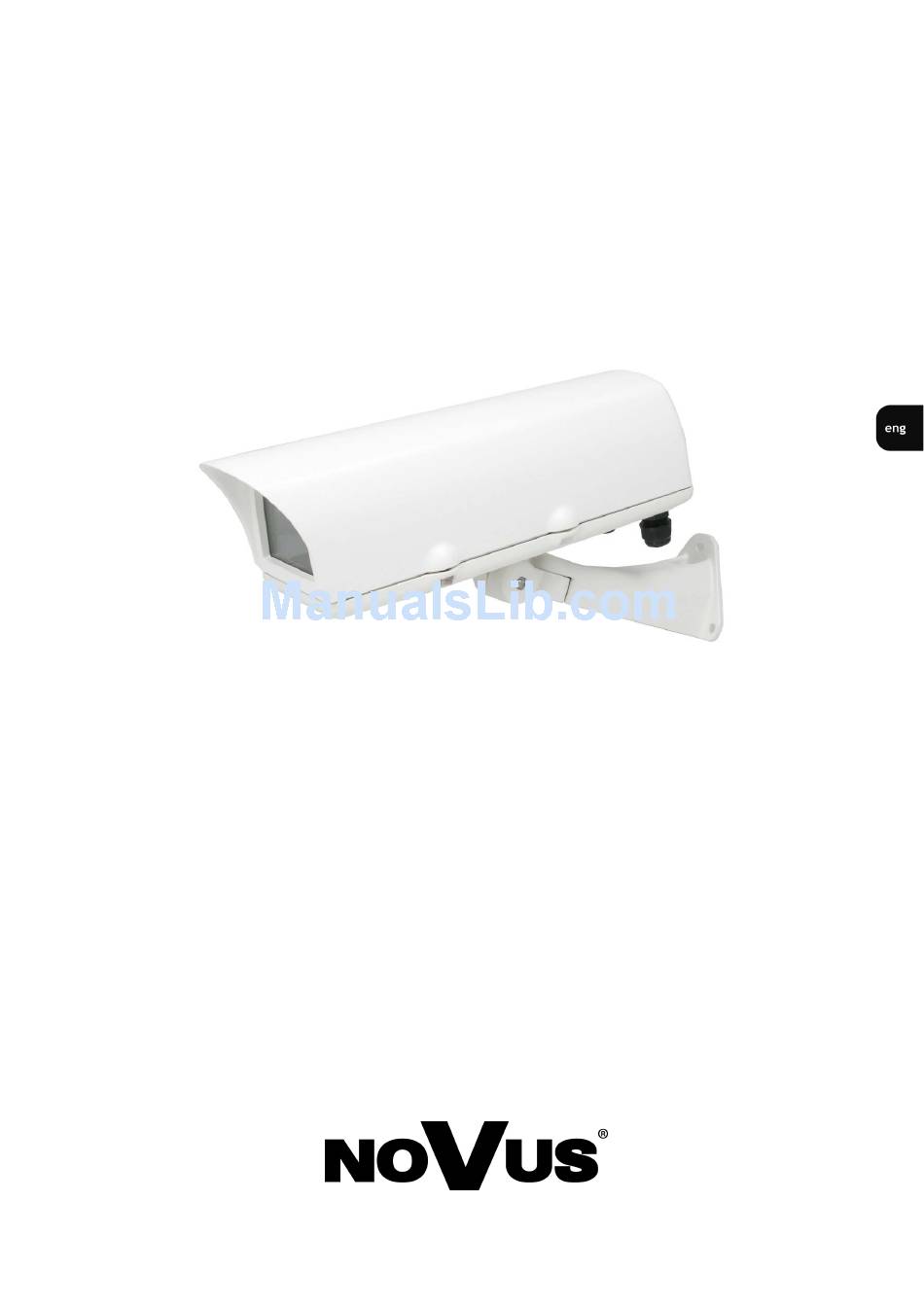

- Page 1 U s e r ’s m a n u a l NVH-200H/230 NVH-200H/12/24...
- Page 2 NVH-200H 2.2 version — User’s manual INFORMATION EMC (2004/108/EC) and LVD (2006/95/EC ) Directives CE Marking Our products are manufactured to comply with requirements of following directives and national regulations implementing the directives: - Electromagnetic compatibility EMC 2004/108/EC. - Low voltage LVD 2006/95/EC with further amendment. The Directive applies to electrical equipment designed for use with a voltage rating of between 50VAC and 1000VAC as well as 75VDC and 1500VDC WEEE Directive 2002/96/EC...
-
Page 3: Important Safeguards And Warnings
STARTING THE DEVICE. THE MANUAL SHOULD BE KEPT FOR FUTURE USE. CAUTION! ALL REPAIRS CAN BE EXECUTED ONLY BY QUALIFIED STAFF OF THE AUTHORISED NOVUS SERVICE. CAUTION! PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT PROVISIONED FOR THE GIVEN PRODUCT IN ITS USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE... - Page 4 Data included in the following user’s manual is up to date at the time of printing. Novus Security Sp z o.o. holds exclusive rights to modify this manual. The producer reserves the rights for device specification modification and change in the design without prior notice.
-
Page 5: Main Characteristics
Torx L-Wrench 1 pcs If the equipment has been damaged during transport or is incomplete, the contents of the package should be packed back to the original box. Contact the local NOVUS distributor for further assistance. 3. SPECIFICATIONS Housing model and type... -
Page 6: Specifications
NVH-200H 2.2 version — User’s manual SPECIFICATIONS 3.1 Dimensions details Wszelkie prawa zastrzeżone © AAT Holding sp. z o.o. - Page 7 NVH-200H 2.2 version — User’s manual SPECIFICATIONS 3.2. Housing elements Main parts of NVH-200H housing: Bracket Bottom Unscrew 3 screws and open the housing. After disconnecting GND wire it is possibile to demount housing top part. See picture below for parts lacation. Mounting base Additional Thermostat board...
- Page 8 NVH-200H 2.2 version — User’s manual SPECIFICATIONS 3.3. Electrical elements Housing is equipped with a heater controlled by a thermostat. The heater task is to avoid steam condensation on glass window. That’s why heater is located next to the glass window. Depending on housing model, the heater operates with 230 VAC or 12VDC and 24 VAC.
- Page 9 NVH-200H 2.2 version — User’s manual MOUNTING 4. Mounting camera in housing Select suitable mounting location and lead all cables near the bracket. Mark mounting position and drill 3 holes for plastic anchors. Screw on bracket to the wall using 3 tapping screws witch plastic anchors. Unscrew 3 screws connecting parts of the housing with Hex L-wrench.
