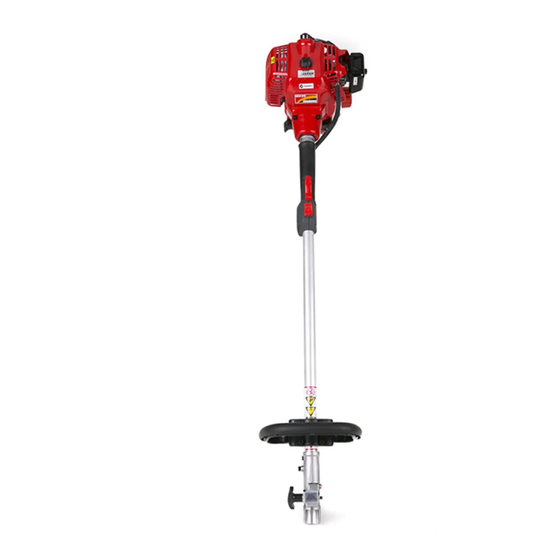

Shindaiwa M230 Owner's/Operator's Manual

Multipurpose tool carrier
Hide thumbs Also See for M230:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

SHINDAIWA OWNER'S/OPERATOR'S MANUAL
M230 MULTIPURPOSE
TOOL CARRIER
■
Read this manual and familiarize yourself with its contents.
■
This machine is designed for cutting grass, weeds and brush. Use only for
designated purpose.
■
Minimize the risk of injury to yourself and others.
■
Always wear eye protection when operating this machine.
WARNING!
■
Do not operate or service this machine unless you clearly understand
this manual.
■
Keep this manual available at all times so that you can reference it
whenever you have a question about the use of this unit.
M230
Part Number 65028-94310 Rev. 8/07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M230 and is the answer not in the manual?

Questions and answers

Related Manuals for Shindaiwa M230

Summary of Contents for Shindaiwa M230

  • Page 1 SHINDAIWA OWNER’S/OPERATOR’S MANUAL M230 MULTIPURPOSE TOOL CARRIER M230 ■ Read this manual and familiarize yourself with its contents. ■ This machine is designed for cutting grass, weeds and brush. Use only for designated purpose. ■ Minimize the risk of injury to yourself and others.

  • Page 2: Table Of Contents

    Safety tip shoes or boots with IMPORTANT! time of publication. non-slip sole should be worn. A statement preceded by the word Shindaiwa Inc. reserves the right to make “IMPORTANT” is one that possesses This product conducts electricity. changes to products without prior notice, special significance.

  • Page 3: Safety Instructions

    Never allow the influence of alcohol, drugs, medi- Shindaiwa for use on this unit. a person without training or instruction to cation or any other substance that operate this unit! could affect your ability or judgement.

  • Page 4: Product Description

    Maximum power output .................................. 0.8 kW/1.1 hp Engine speed at idling ................................2,750 rpm (min Fuel tank capacity ...................................554 cc/18.7 oz. Fuel/oil ratio ............................50:1 with Shindaiwa 2-cycle Mixing Oil Carburetor ......................................Walbro WYL Ignition ............................. One piece electronic, transistor-controlled Spark plug ......................................

  • Page 5: Assembly And Adjustments

    Assembly and Adjustments Connect the Handle to the Outer Tube. Position the handle on the outer tube as Throttle Assembly shown. See Figure 3. Socket-head Capscrews Install the mounting bracket with the socket-head screws. Tighten the screws finger-tight ONLY at this time. Locate the handle in the best position for operator comfort (usually about 10 Handle...

  • Page 6: Mixing Fuel

    Oil is a registered JASO FC classified oil and also meets or exceeds ISO-L-EGD performance requirements. Shindaiwa One is recommended for use in all Shindaiwa low emissions engines. Shindaiwa One also includes a fuel stabilizer. Filling the Fuel Tank ■...

  • Page 7: Starting The Engine

    Starting the Engine IMPORTANT! When the engine starts, slowly move Set the choke lever to the CLOSED the choke lever to the “OPEN” position. Engine ignition is controlled by a two position if engine is cold. (If the engine stops after the initial position switch mounted on the throttle start, close the choke and restart.) housing labeled, “I”...

  • Page 8: Stopping The Engine

    If the attachment rotates when the procedure described here, return the engine is at idle, reduce the idle speed trimmer to your Shindaiwa dealer for by turning the idle adjustment screw inspection. counter-clockwise. See Figure 12.

  • Page 9: Maintenance

    General Maintenance Muffler WARNING! WARNING! This unit must never be operated with a Before performing any main- Non-standard parts may not faulty or missing spark arrester or mufler. tenance, repair or cleaning work on operate properly with your unit and Make sure the muffler is well secured and the unit, make sure the engine and may cause damage and lead to...
  • Page 10 ■ from service until it can be inspected or Use a hooked wire to extract the fuel Hooked repaired by a Shindaiwa-trained service filter from inside the fuel tank. See Wire technician. Figure 15.

  • Page 11: Long Term Storage

    Reassemble the spark arrester screen and engine cover in reverse order. Spark Arrestor IMPORTANT! Retaining Screw If you note excessive carbon buildup, consult with an authorized Shindaiwa servicing dealer. Spark Arrestor Screen Figure 16 Long Term Storage ■ ■...

  • Page 12: Troubleshooting Guide

    87 or higher mixed grade? with 50:1 Shindaiwa Premium 2-cycle mixing oil or with an equivalent high quality 2-cycle mixing oil. Is fuel visible and moving in the return Check for clogged fuel filter and/ Replace fuel filter or vent as required.
  • Page 13 Troubleshooting Guide (continued) LOW POWER What To Check Possible Cause Remedy Operator is overworking the unit. Cut at slower rate. Carburetor mixture is too lean. Consult with an authorized servicing Is the engine overheating? dealer. Improper fuel ratio. Refill with clean fresh unleaded gasoline with a pump octane of 87 or higher, mixed with Premium 2-cycle mixing oil at a 50:1 gasoline/oil ratio.
  • Page 14 Troubleshooting Guide (continued) ADDITIONAL PROBLEMS What To Check Possible Cause Remedy Clogged air filter. Clean or replace the air filter. Clogged fuel filter. Replace the fuel filter. Poor acceleration. Lean fuel/air mixture. Consult with an authorized servicing dealer. Idle speed set too low. Adjust: 2,750 (±250) min-1.
  • Page 15 NOTES...
  • Page 16 Head Office: Part Number 65028-94310 Tualatin, Oregon 97062 6-2-11, Ozuka-Nishi Revision 7/07 Telephone: 503 692-3070 Asaminami-Ku, Hiroshima Shindaiwa is a registered trademark of Shindaiwa, Inc. Fax: 503 692-6696 731-3167, Japan Specifications subject to change without notice. www.shindaiwa.com Telephone: 81-82-849-2220 Fax:...
  • Page 17 Manual Del ProPietario / oPeraDor ShinDaiwa M230 Porta herraMienta MultiPle M230 ■ Reduzca al mínimo el riesgo de lesiones, tanto a usted mismo como a otras personas. ■ Lea detenidamente este manual y familiarícese con su contenido. ■ Protéjase los ojos y los oídos siempre que trabaje con esta unidad.
  • Page 18 Mantenimiento ......... 9 distribuidor Shindaiwa, quien le atenderá Almacenamiento de Largo Plazo ... 11 con gusto. También puede comunicarse Guia Diagnostico ........12 con Shindaiwa Inc. a la dirección que apa- rece en la contra portada de este manual.
  • Page 19 No use accesorios no malusadas o abusadas. Nunca permita que zada si está cansado o si está bajo la aprobados por Shindaiwa en esta influencia de alcohol, drogas o medica- una persona sin entrenamiento o instrucción unidad.
  • Page 20 Especificaciones Nombre del modelo ......................................M230 Modello de motor ......................................S230 Tipo de motor .......................... 2 tiempos, cilindro vertical, refrigerado por aire Peso seco (sin accesorios para cortar) .............................4,2 kg/9,4 lb Cilindrada ....................................
  • Page 21 ensamblaje y ajustes Conecte el mango al tubo exterior Posicione el mango sobre el tubo Ensamblaje del exterior como se demuestra. Consulte acelerador Tornillos de la figura 3. cabeza hueca Instale la abrazadera de montaje con los tornillos de cabeza hexagonal. En este Mango momento, apriete los tornillos con los dedos solamente.
  • Page 22 JASO FC clasificado y tambien cumple o excede los requisitos de rendimiento de ISO-L-EGD. Shindaiwa One es recomen- dado para el uso en todo los motores Shindaiwa de baja emisión. Shindaiwa One tambien incluye el estabilizador de combustible.
  • Page 23 arranque del motor ¡iMPortante! Cuando arranque el motor, mueva Posicione la palanca del cebador en la despacio la palanca del cebador a la El encendido del motor está controlado posición CLOSED (cerrado) si el motor posición “OPEN” (abierto). Consulte la está...
  • Page 24 Shindaiwa para inspección. de ajuste de marcha mínima en el sentido contrario a las agujas del reloj. ¡iMPortante! Consulte la figura 12.
  • Page 25 Mantenimiento General Silenciador ¡aDVertenCia! ¡aDVertenCia! Esta máquina nunca debe ser operada con Antes de efectuar Los repuestos no estándar un guardachispas o silenciador defectuoso mantenimiento, reparación o limpieza puedan que no operen propiamente o faltante. Cerciórese de que el silenciador de la máquina, cerciórese de que con su máquina y pueden causar esté...
  • Page 26 Gancho de reparada por un técnico de servicio combustible. alambre entrenado por Shindaiwa. Antes de reinstalar el filtro, inspeccione la condición de todo los componentes del sistema de combustible (manguera de alimentacion, manguera del ventilador, ventilador, tapa y tanque).
  • Page 27 ¡iMPortante! Si nota acumulación excesiva de carbón, consulte con su centro de servicio o Guardachispas distribuidor autorizado Shindaiwa. Figura 16 almacenamiento de largo Plazo ■ ■ Cada vez que la máquina no va a Antes de almacenar la máquina, repare...
  • Page 28 Guia Diagnostico el Motor no arranCa Qué revisar Posible causa remedio Arrancador autorretráctil defectuoso. Consulte a un agente de servicio de Shindaiwa. ¿Arranca el motor? Líquido en el cárter. Daños internos. SÍ Bujía suelta. Apriete y pruebe otra vez. Consulte con un ¿Hay buena compresión?
  • Page 29 Rellene con gasolina sin plomo, reciente y limpia inapropiada. con un octanaje de 87 o superior, mezclada con aceite Premium de Shindaiwa para motores de dos tiempos en una proporción gasolina/aceite de 50:1. Ventilador, tapa del ventilador o aletas del Limpiar, reparar o sustituir en caso cilindro sucios o dañados.
  • Page 30 Guia Diagnostico (continuación) otros problemas Qué revisar Posible causa remedio Filtro de aire obstruido. Limpie o reemplace el filtro de aire. Filtro de combustible obstruido. Cambie el filtro de combustible. Deficiente aceleración. Mezcla de combustible/aire muy pobre. Consulte con un agente de servicio autorizado.
  • Page 31 NOTES...
  • Page 32 Head Office: Part Number 65028-94310 Tualatin, Oregon 97062 6-2-11, Ozuka-Nishi Revision 7/07 Telephone: 503 692-3070 Asaminami-Ku, Hiroshima Shindaiwa is a registered trademark of Shindaiwa, Inc. Fax: 503 692-6696 731-3167, Japan Specifications subject to change without notice. www.shindaiwa.com Telephone: 81-82-849-2220 Fax:...
