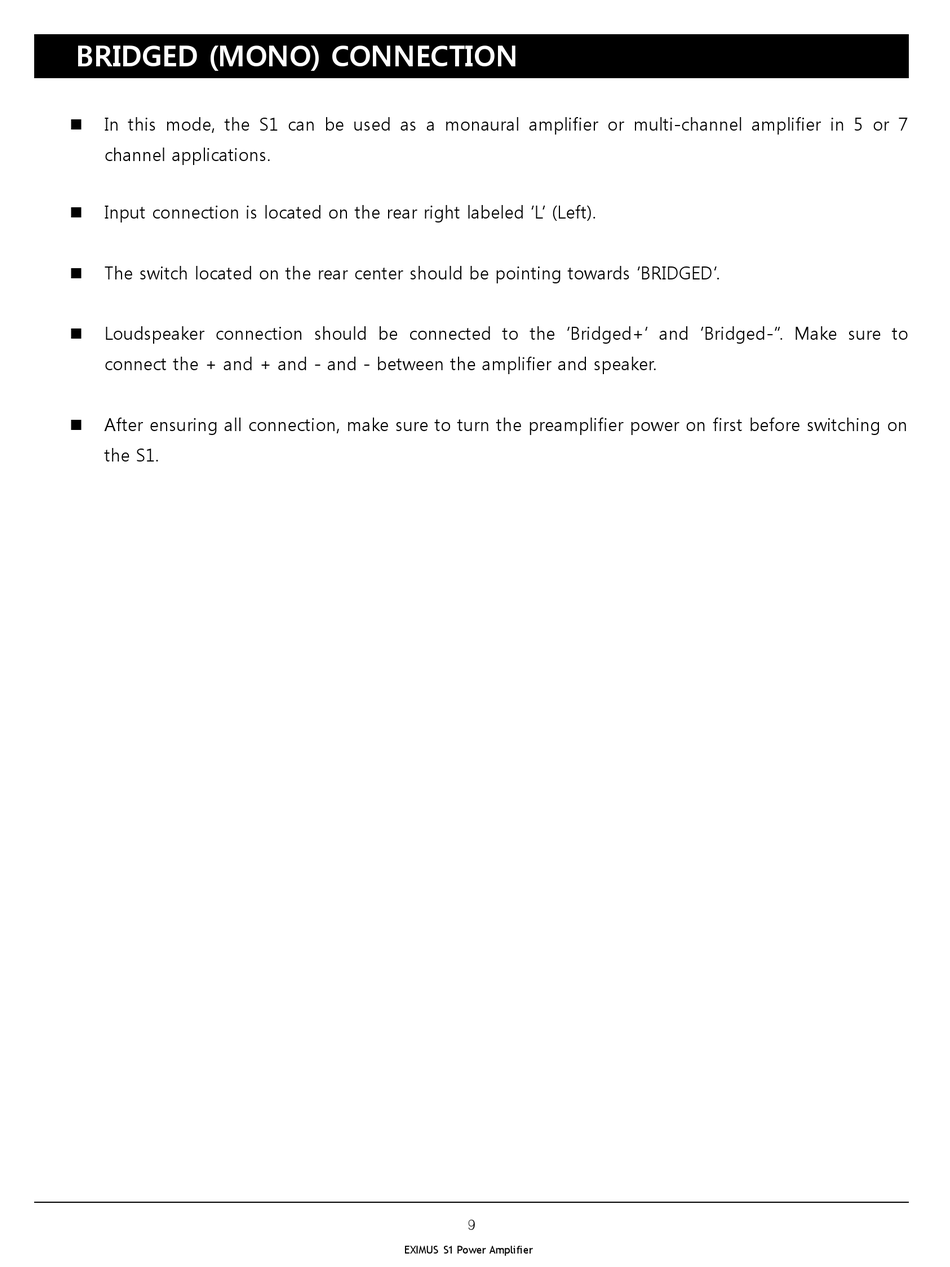

동 BRIDGED (MONO) CONNECTION
In this mode, the S1 can be used as a monaural amplifier or multi-channel amplifier in 5 or 7

channel applications.
Input connection is located on the rear right labeled 'L' (Left).

The switch located on the rear center should be pointing towards 'BRIDGED'.

Loudspeaker connection should be connected to the 'Bridged+' and 'Bridged-". Make sure to

connect the + and + and - and - between the amplifier and speaker.
After ensuring all connection, make sure to turn the preamplifier power on first before switching on

the S1.
