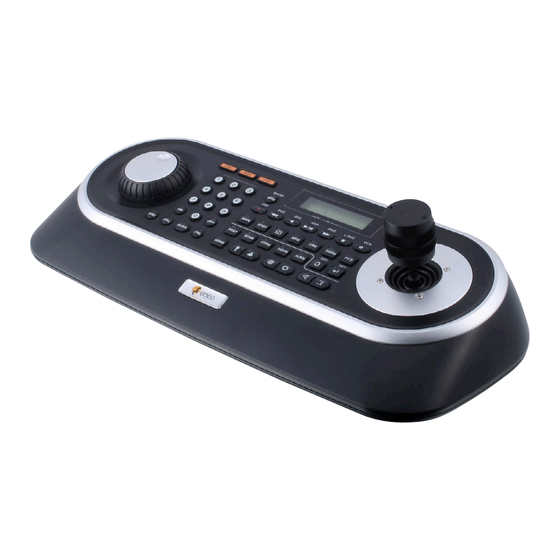

System keyboard with joystick and jog shuttle, 12vdc/230vac
Hide thumbs
Table of Contents

Advertisement

Quick Links

Installation and Operating Manual
System Keyboard with Joystick and Jog Shuttle, 12VDC/230VAC
KBD-2


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KBD-2 and is the answer not in the manual?

Questions and answers

Related Manuals for Eneo KBD-2

Summary of Contents for Eneo KBD-2

  • Page 1 Installation and Operating Manual System Keyboard with Joystick and Jog Shuttle, 12VDC/230VAC KBD-2...

  • Page 2: Table Of Contents

    Contents Safety Instructions ............................................3 Introduction ...........................................3 Features ..........................................3 Package Contents ........................................4 Required Installation Tools ....................................4 Connectors ..........................................4 Installation and Configuration ......................................5 Basic Configuration of Fastrax Dome System ...............................5 Configuration with DVR ......................................6 Configuration with MUX .......................................7 Configuration of Master and Slave Keyboards ..............................8 Termination ..........................................9 Dip Switch Setting ......................................0 Multiplexer Configuration ....................................0...

  • Page 3: Safety Instructions

    Safety Instructions • Read these safety instructions and the operation manual first before you install and commission the unit. • Keep the manual in a safe place for later reference. • Protect your unit from contamination with water and humidity to prevent it from permanent damage. Never switch the unit on when it gets wet. Have it checked at an authorized service center in this case.

  • Page 4: Package Contents

    Multiplexer up to 8 alarm inputs (Sensor) up to 4 (Siren) alarm outputs (Flashing light) up to 54 cameras including 64 alarm modes Figure : Typical System Configuration 1.2 Package Contents The package contains the following: Keyboard controller Instruction manual VDC Power supply (SMPS) Power Cord 1.3 Required Installation Tools...

  • Page 5: Installation And Configuration

    2. Installation and Configuration 2.1 Basic Configuration of Fastrax Dome System J-Box Dome RS-485(+) DOME  + RX+ (TX+) RS-485(-) DOME  - RX- (RX-) Power 4VAC STP AWG # Alarm output - Alarm input -4 Sensor Power 4VAC Alarm input up to 8 Dome  + Siren...

  • Page 6: Configuration With Dvr

    2.2 Configuration with DVR J-Box Dome RS-485(+) DOME  + RX+ (TX+) RS-485(-) DOME  - RX- (RX-) Power 4VAC STP AWG # Alarm output - Alarm input -4 Sensor Power 4VAC Alarm input up to 8 Dome  + Siren Dome  –...

  • Page 7: Configuration With Mux

    2.3 Configuration with MUX J-Box Dome RS-485(+) DOME  + RX+ (TX+) RS-485(-) DOME  - RX- (RX-) Power 4VAC STP AWG # Alarm output - Alarm input -4 Sensor Power 4VAC Alarm input up to 8 Dome  + Siren Dome  –...

  • Page 8: Configuration Of Master And Slave Keyboards

    2.4 Configuration of Master and Slave Keyboards J-Box Dome RS-485(+) DOME  + RX+ (TX+) RS-485(-) DOME  - RX- (RX-) Power 4VAC STP AWG # Slave K/B control connection Rear Rear Master Slave Keyboard controller Keyboard controller DIP SW  = ON DIP SW  = OFF DIP SW  = ON DIP SW 8 = ON...

  • Page 9: Termination

    2.5 Termination The first and last devices in an installation (dome and keyboard controller) must have the data line terminated by setting the DIP switch. Without proper termination, there is potential for control signal errors. Total length of the cable for communication should not exceed .km. Cable for communication Termination ON Termination ON...

  • Page 10: Dip Switch Setting

    2.6 Dip Switch Setting Termination and Master/Slave: Set the switches according to your configuration. SETTING DESCRIPTION DOME Termination Figure 7: Keyboard DIP switches DOME Termination J-Box Data Termination (Reserved) DOWNLOAD ON DOWNLOAD OFF Slave Master 2.7 Multiplexer Configuration Duplex Setup: NOTE: Multiplexers to be controlled by the keyboard controller require a new ROM version.

  • Page 11: Keyboard Setup

    3. Keyboard Setup To setup the keyboard controllers, the user needs to setup the network, passwords and perform special tasks such as Uploading and Downloading program- med data from the dome cameras. To enter the Keyboard menu, press and hold CTRL and press MENU expressed as CTRL+MENU in the manual. You will see the following menu.

  • Page 12: Network

    3.2 Network . J-BOX Set: OFF Select to use the optional Junction Box or not. . Set Port Select the baud rate and the connected unit’s protocol. 3. MUX Config Set the multiplexer configuration. 4. Set Slave KBD Select to use the slave keyboard or not. Save and exit Save the changed settings and return to the previous menu Set Port...
  • Page 13 Com Ports Com Ports Com Ports . DOME: DOME . DOME: DOME . DOME: NONE  D/DVR: NONE 3. RS3: NONE 3. ALARMPC: NONE Save and Exit 4. MUX/KBD: NONE 5. DVR/AUX: NONE Save and Exit J-BOX :OFF J-BOX :ON J-BOX: OFF DOME1 400~38400...
  • Page 14 Set MUX A Cam<- 000 This menu is for assignment the first level (A level) of MUX. Cam: Dome camera ID MUX: MUX ID Input of MUX Out: Spot Output number of the MUX (0: master keyboard, 0: slave keyboard , 03: slave keyboard , 04: slave keyboard 3) .
  • Page 15 Multiplexer Configuration Examples Example 1: Multi/Single user system with 16 Cameras and Example 2: Multi/Single user system with 28 Cameras and 1 Multiplexer 2 Multiplexers MUX A MUX A MUX B Dome ID Mux 0 Dome ID Mux 0 0 –> Cam  0 –>...
  • Page 16 Example 3: Multi/Single user system with 32 Cameras and Example 4: Multi/Single user system with 48 Cameras and 3 Multiplexers 4 Multiplexers MUX A MUX B MUX A MUX B Mux 0 Dome ID Mux 0 Dome ID Cam  <–...
  • Page 17 Example 5: Multi/Single User system with 64 Cameras and 5 Multiplexers MUX A MUX B Mux 0 Dome ID Cam  <–  Cam  <–  Cam 3 <– 3 Dome ID Mux 0 Cam 4 <– 4 7 –> Cam  Cam 5 <–...
  • Page 18 Set Slave Keyboard Set Slave Kbd . Slave KBD: . MUX cont: 3. DVR cont: 4. Dome Menu: 5. Slave KBD Unit Save and Exit This screen allows you set up Slave KBD controller, how many the slave KBD controller and Mux menu controllability and DVR menu controllability, etc. .

  • Page 19: Camera

    The DVR4 protocol is designed to allow the domes to be controlled directly via the RS-485 interface of the recorder, and not from the KBD-2 keyboard. If one wishes to control the domes via the keyboard, then the DVR2 protocol should be used.

  • Page 20: Alarm

    3.5 ALARM ALARM . Check: . Beep: Save and Exit . Alarm Check When set to ON, the KBD controller will check alarm signal and each port can be connected 3 dome cameras. When set to OFF, it will not check alarm signal and each port can be connected 8 dome cameras. .

  • Page 21: Initialization

    3.8 Initialization To initialize the keyboard, select Initialization. MAIN MENU After Initialization, the keyboard returns it to the factory value. 8. Initialization Are you sure? ENTER OR ESC 3.9 HOLD TIME MAIN MENU 9. Hold time: 005s When the dome ID of the master keyboard is the same as the slave keyboard or the one from AUX IN mode (dome port), during the hold time after the master keyboard control the dome, the slave keyboard and the unit from the AUX IN mode (dome port) cannot control the dome.

  • Page 22: Install With Dvr Series

    3. Press CTRL + MENU. Set the Slave ID to 0. Configuration MAIN MENU . Configuration . Key Beep: . Network . Key Lock: 3. LCD 3. Chg User PW 4. Initialization 4. Chg Admin PW Exit(ESC) Save and Exit Network .
  • Page 23 . Connect RS-3 cable between RS-3 Port of DVR and RS-3 of the Keyboard. (This connection enables DVR control remotely from KBD controller) . How to setup the KBD controller. A. Turn the Keyboard ON B. Input password (Factory setting is 9 9 9 9 ) C.
  • Page 24 C. Select „Camera” on the Device menu. Unit ID should be  up to 99. Unit ID is not allowed number „0”. D. Set „PTZ Device” and „ID” of the dome camera. Select RS3/RS485 after PTZ is installed, and then set-up as below table. RS-232/RS-485 Baud Rate Parity...

  • Page 25: Install With Pc Dvr Series

    5.2 Install with PC DVR Series If user wants to connect with PC DVR, please proceed as the following order. STP AWG # Wire Connection DOME JUNCTION BOX R(T)X+ DOME + R(T)X– DOME – CONVERTER JUNCTION BOX TX+(RS-485) DOME + TX-(RS-485) DOME –...
  • Page 26 3. How to setup DVR A. Switch the PC DVR on. B. If press setup button on the above screen, the below screen will be appeared. C. Select camera input number that dome camera connected. Then install as below to select set-up PTZ after checking PTZ box. D.
  • Page 27 5. How to PC DVR Remote setup A. If selects Setup on main menu, the below screen will be appeared. B. After selecting System and checking Remote control box, please install as below to select Setup remote control. Device ID is not allowed number „0”. C.

  • Page 28: Operation

    6. Operation 6.1 Keyboard Lock/Unlock (Hidden command) When the user leaves the control desk, he may wish to lock the keyboard controller to prevent unauthorized use. Pressing 777 + ENTER will lock the keyboard controller. Pressing 777 + ENTER while the keyboard is locked will open the password screen. If the correct password is entered, the keyboard controller will return to normal operation.

  • Page 29: Summary Of Keyboard Controls

    6.3 Summary of Keyboard Controls Key operation example CTRL + MENU : Press and hold down CTRL Key and press MENU Key. 1 + CAM : Press 1 Key, CAM Key sequentially. CTRL + JOYSTICK : Press and hold down CTRL Key while manipulate Joystick Handle. ENTER + JOYSTICK : Press and hold down ENTER Key while manipulate Joystick Handle.

  • Page 30: Keys For Dome Cameras

    6.3.1 Keys for Dome Cameras Function Key Label Descriptions Displays the selected camera on the spot out of the multiplexer and allows the camera to be controlled by the keyboard controller, if the selected camera is a dome camera. No. + Camera selection Function number selection with function keys.

  • Page 31: Keys For Multiplexer

    6.3.2 Keys for Multiplexer Function Key Label Descriptions Select MUX ID Select Multiplexer (e.g. 1 or 2 + MUX) Full Screen Puts the multiplexer in Full-Screen Mode of the selected camera No. No. + Picture-in-Picture mode  by  Display Displays view of four cameras.
  • Page 32 6.3.3.1 Keys for DVR (DVR 1 ~ 4, PC-DVR) Function Key Label Descriptions DVR ID Selection (e.g. 1 or 2 + DVR) ID Selection Enter the Quick Setup screen. You will need to enter the administrator password to access the Quick MENU MACRO Setup.
  • Page 33 Function Key Label Descriptions [PC-DVR] No. + Cam Selection Select the camera and change the camera in the full-screen mode. CTRL + 1 ~ CTRL + 9 [PC-DVR] Change screen mode. Display Mode Go last [PC-DVR] Go last Go last [PC-DVR] Go last 1 ~ 9 + X times Forward play...
  • Page 34 6.3.3.2 Example for Key Operation in PC- DVR Descriptions Function Key Label Live (Guard) Mode Playback Mode MENU No action MACRO Record Record ON/OFF Recall Preset No. + Recall Preset Search Go to playback mode Stop Rewind No action Rewind one image 1 ~ 9 + X times Backward play No action...

  • Page 35: Dvr5 Protocol For The Dvr For The Version 3..0 And Over Installation Of The Dvr5 Protocol When One Dvr Is Used

    6.4 DVR5 protocol for the DVR for the version 3.1.0 and over Installation of the DVR5 protocol when one DVR is used. NOTE: When you set the protocol to DVR5, the keyboard operates as the DVR’s keyboard only you must install domes to the DVR only. RS-3 When you control the PTZ camera by the DVR, follow as below.

  • Page 36: Operation Of The Keyboard

    6.4.1 Operation of the keyboard When the PTZ camera is installed on the DVR, you should select the number of the input channel not the ID number of the PTZ camera. For example, when the PTZ camera with the 5 ID number is installed the number  of the input jack of the DVR, to control the camera, you select 1 + CAM not 5 + CAM.

  • Page 37: Installation Of Dvr5 Protocol When May Dvr Is Use

    6.4.2 Installation of DVR5 protocol when many DVR is use RS-3 to RS-485 converter RS-3 to RS-485 converter When you control PTZ cameras on many DVRs, you need RS-232 to RS-485 converter. PTZ cameras are connected to RS-3 to RS-485 converter by the RS-3 port of the DVR and the keyboard is connected through the RS-485 port of the DVR. Follow as below.
  • Page 38 6.4.2.1 Keys for Dome Cameras Function Key Label Descriptions 1 ... 16 + Camera selection Displays the selected camera number. Cancels current inputs. Cancel Exits from currently running functions or menu, error status, etc. Alarm No action Immediately calls Home function. Home Deletes selected value or function in programming mode Pressing PRST will bring up the preset programming menu.
  • Page 39 6.4.2.2 Keys for DVR (DVR5) See the DVR’s manual to know in detail. Function Key Label Descriptions DVR ID Selection (e.g. 1 or 2 + DVR) DVR Selection Open a Pan/Tilt/Zoom screen which allows you to control properly configured cameras. Play/Pause Play recorded data / Pause playing.

  • Page 40: Troubleshooting

    7. Troubleshooting If problems occur, verify the installation of the camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. Problem Possible Solution Joystick can’t control system.

  • Page 41: Short Cut Key

    8. Short Cut Key Short Cut Key Function PRST Pop up preset setup menu TOUR Pop up guard Tour setup menu PTRN Pop up Pattern setup menu SCAN Pop up Auto Scan setup menu No.+ PGM+PRST Store the current view at the selected number Short Cut Key Function Short Cut Key...

  • Page 42: Specifications

    9. Specifications Model KBD-2 Art. No. 74149 Operation Mode Single operation or  Master / 3 Slaves max. Joystick 3-axis proportional joystick for manual control of variable speed Multiplexer/camera control up to 508 cameras Site control (direct mode operation) Keys select cameras and monitors, operate presets, patterns, auxiliaries, and sequences. Camera functions: pan,...

  • Page 43: Dimensional Drawings

    10. Dimensional Drawings Dimensions: mm...
