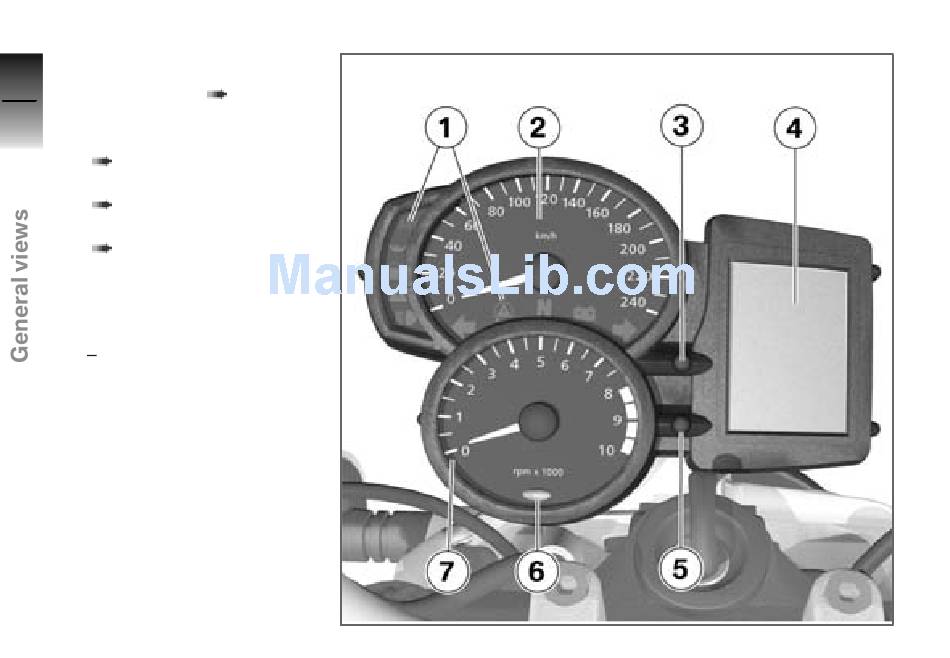

Instrument cluster

2
1 Telltale lights (
2 Speedometer
18
3 Operation of the clock
( 44)
4 Multifunction display
( 22)
5 Operating the odometer
( 44)
6 Ambient-light brightness
sensor (for adapting the
brightness of the instrument
lighting)
z
with anti-theft alarm
Anti-theft alarm telltale light
(see the instructions for use
for the anti-theft alarm)
7 Rev. counter
22)
