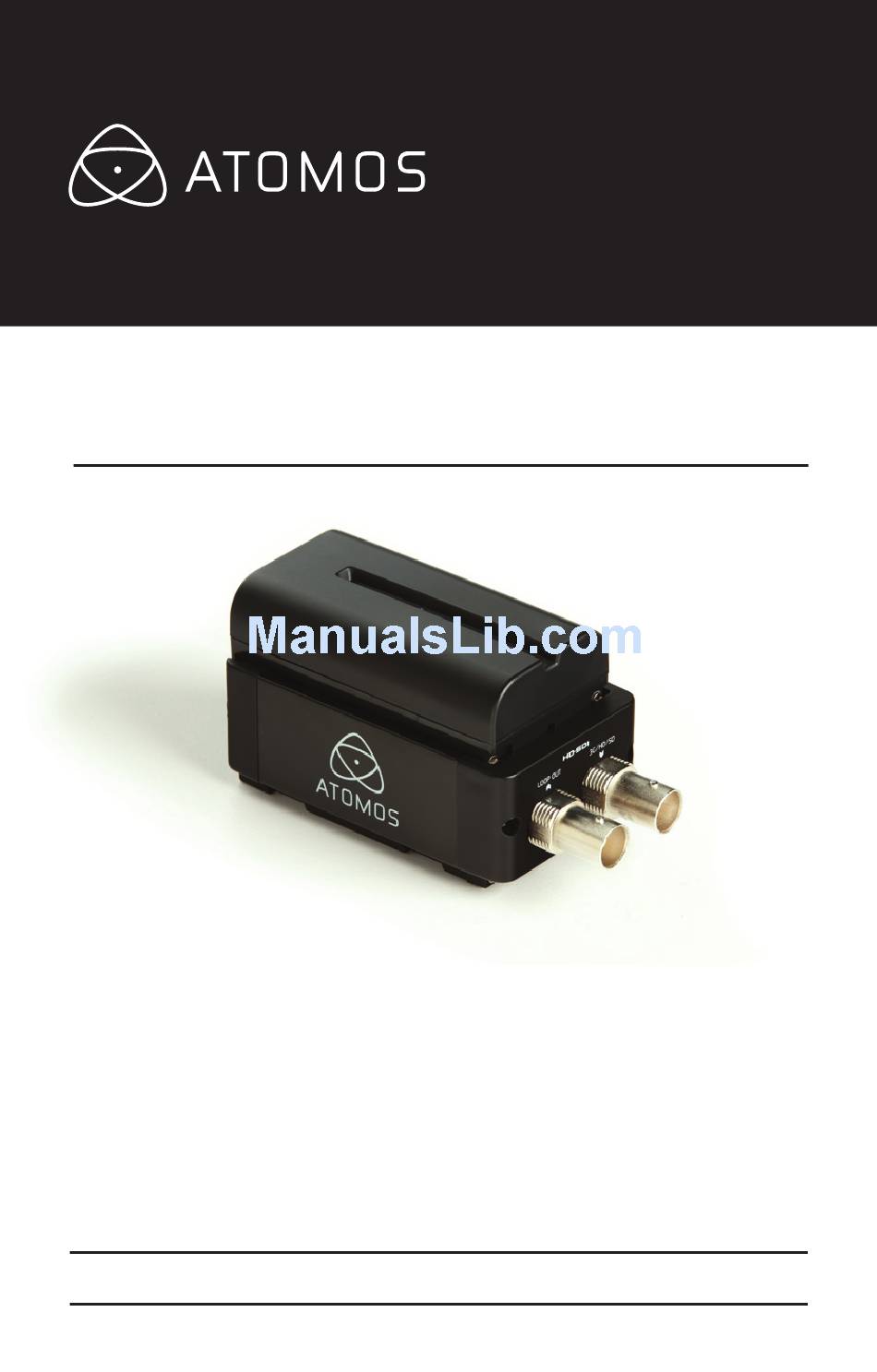

Atomos Connect
Connect S2H & H2S User Guide

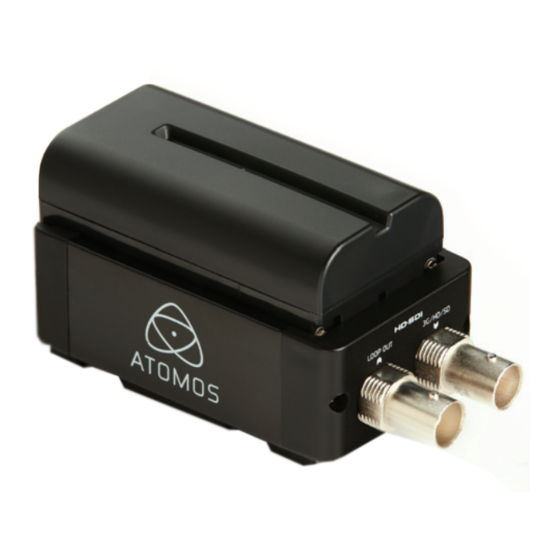

Congratulations on purchasing your Connect
converter and Test Pattern Generator. You
are now the proud owner of an extremely
compact and versatile converter that can
run standalone for up to 10 hours from the
battery supplied – no AC cables required!
Of course, as is our custom at Atomos, we
have included a comprehensive selection
of accessories, including a 9V AC power
adaptor, AC battery charger and a 12V DC
travel adaptor too.
www.atomos.com | Sales: sales @ atomos.com | Support: support @ atomos.com
The built-in Test Pattern Generator has
multiple patterns, in both SD and HD, the
latter including 1080p50 and 60 – true 3G
modes. The modes are indicated by coloured
LEDs, which are explained in this QuickStart
Guide. Learn the colour sequences, learn
the modes for fast and easy operation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Connect S2H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Atomos Connect S2H

  • Page 1 9V AC power adaptor, AC battery charger and a 12V DC travel adaptor too. www.atomos.com | Sales: sales @ atomos.com | Support: support @ atomos.com...
  • Page 2  AC Battery Charger HDMI IN HDMI OUT/TPG OUT 2 x HD-SDI OUT/TPG OUT LOOP OUT/TPG OUT HD-SDI IN NOTE: This User Guide pertains to both Connect units. Each Connect box contains 1 converter only. Atomos Connect. User Manual V1.0...
  • Page 3: Unit Description

    1. POWER/BATTERY 2. MODE There are 4 modes of operation indicated by LEDs. 3. USB port (Firmware updates only) 4. HDMI port (H2S in / S2H out) MODE LED COLOUR 5. LED DISPLAY CONVERTER MODE (ext. bat.) 6. SDI CONNECTOR (int.
  • Page 4: Getting Started

    NOTE: Connect Converters utilise the aluminium side panels to dissipate heat. Do not be alarmed if the sides of the product are warm or hot to touch, this is deliberate and normal heat dissipation operation. Atomos Connect. User Manual V1.0...
  • Page 5: Power Management

    GREEN indicates the internal battery is in use This will go to solid RED when under 50% power remaining. When the internal battery is critically low, the LED will show flashing RED. INTERNAL BATTERY INTERNAL BATTERY LOW <50% CRITICAL > CHANGE BATTERY Atomos Connect. User Manual V1.0...
  • Page 6: Powering Other Devices

    AC power, at the same time as being charged from it. POWERING OTHER DEVICES You can attach to, and power, Atomos Ninja, Ninja-2 and Samurai field recorders. The status level will be indicated for a few seconds and then return to the previous mode of operation.
  • Page 7: Modes Of Operation

    TPG Mode and the Rx LED illuminating 1080i59.94 1080psf23.98 RED or GREEN for Converter Mode. 1080i50 720p60 NOTE: Connect S2H converts SDI to HDMI 1080p30 720p59.94 and Connect H2S converts HDMI to SDI when in Converter Mode. 720p50 1080p29.97 1080p25 486i59.94...
  • Page 8 NOTE: If the input signal is not interlaced, INPUT OUTPUT the PDR function is disabled. 23.98psf > 23.98p Pressing the MODE button a third time turns 24psf > off the pulldown. 25psf > 29.psf > 29.97p 30psf > Atomos Connect. User Manual V1.0...
  • Page 9 TPG Mode ON (Home) outputs. After TPG Mode has been activated, Connect S2H outputs on both the HDMI and pressing the MODE button at any time will the LOOP OUT SDI outputs TPG. utilise all four LEDs to indicate the current video output mode, as per the following indicators.
  • Page 10 TPG Mode, have activated the TPG Video Format Indicator and while in this mode press the PWR/BAT button. To return back to Converter Mode, press and hold the MODE button for more than 2 seconds. Atomos Connect. User Manual V1.0...
  • Page 11: Technical Specifications

    (S/S). SDI TC will operation. be converted to HDMI TC on S2H and HDMI TC will be converted to SDI TC on H2S. This To turn the flashlight off, press either button, MODE or PWR/BAT.
  • Page 12: Warranty & Conditions

    > Register at atomos.com/support DEALER / DISTRIBUTOR www.atomos.com | Sales: sales @ atomos.com | Support: support @ atomos.com © ATOMOS Global Pty. Ltd. trading as ATOMOS under license October 2012. All trademarks are the property of their respective owners.
