Matrixing System
3
If you press one of the BUS selections a second time, a second drop-down menu will appear. This menu
lists all of the independent sources within each group. For example, press the PGM L/R button and you
will see each output (L and R) separately. (See Figure 21)
4
To complete the patching, press an OUTPUT button in the center of the screen to assign the selected bus
to that physical output connector. For example, press the PGM L button, and then press Aux Send 1.
The left PGM bus output will now appear at the physical Aux Send 1 output connector. (See Figure 22)
1-18
Chapter 1 Getting Started

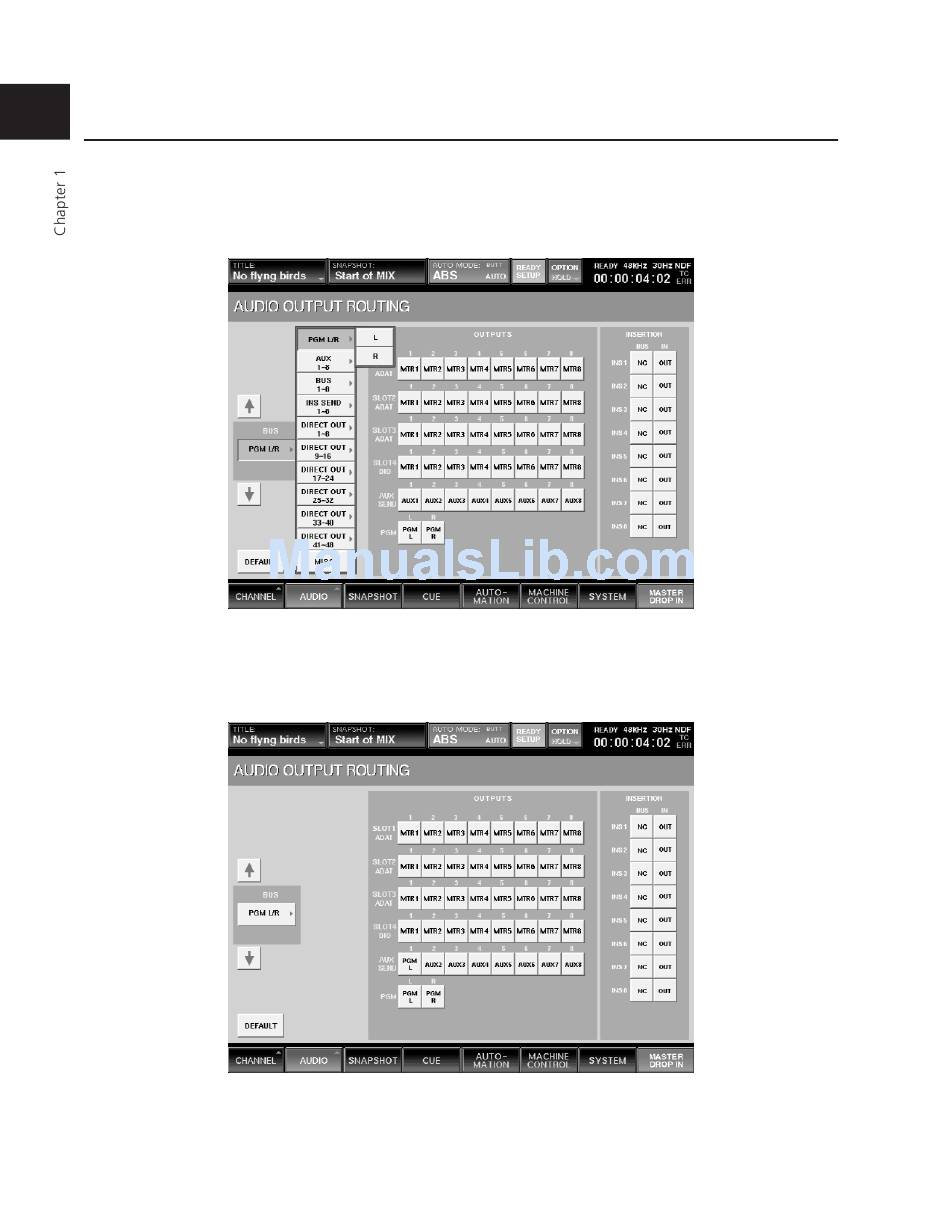

Figure 21
Figure 22
