Toro TR50XT Series Instruction Manual

TR50XT
SERIES ROTOR
Instruction Guide

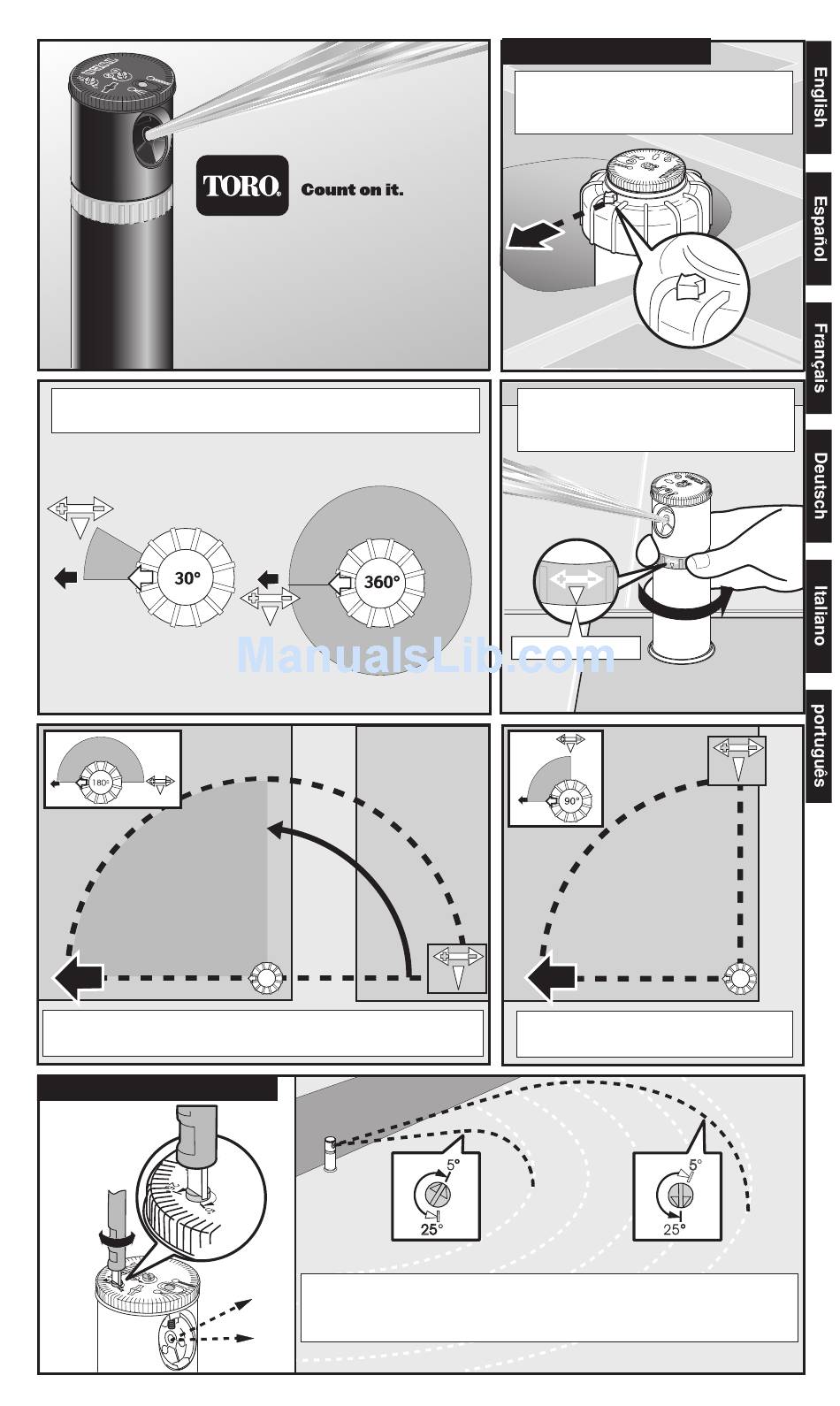

The watering area can be adjusted between 30° and 360°.
When set to 360°, the nozzle does not reverse direction.
The watering area is between the cap arrow and the right stop
arrow on the arc adjustment ring. This example is set to 180°.

Nozzle Trajectory Adjustment

The nozzle trajectory angle can be adjusted between 5° and 25°.
Turn the adjustment screw right to decrease the angle and shorten
spray radius, or left to increase the angle and lengthen spray radius.

Watering Arc Adjustment

Align the cap arrow with the left side
of the watering area. This is the non-
adjustable side of the watering arc.
Turn the arc adjustment ring to align
the white arrow to the right side of
the watering arc.
Right Stop Arrow
Align the right stop arrow to the right
side of the watering arc.
