Summary of Contents for Spectra Studehaker SB6051
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET REFER SERVICING TO QUALIFIED PERSONNEL ONLY. THE CAUTION MARKING IS LOCATED AT THE BACK OF THE UNIT THE RATING PLATE IS LOCATED AT THE BACK OF THE UNIT CAUTION:... - Page 3 7. DO NOT BLOCK ANY OF THE VENTILATION OPENINGS. INSTALL IN ACCORDANCE WITH THE MANUFACTURER’S INSTRUCTIONS. 8. DO NOT INSTALL NEAR ANY HEAT SOURCES SUCH AS RADIATORS, HEAT REGISTERS, STOVES, OR OTHER APPARATUS (INCLUDING AMPLIFIERS) THAT PRODUCE HEAT. 9. DO NOT DEFEAT THE SAFETY PURPOSE OF THE POLARIZED OR GROUNDING – TYPE PLUG. A POLARIZED PLUG HAS TWO BLADES WITH ONE WIDER THAN THE OTHER.
-
Page 4: Fcc Notice

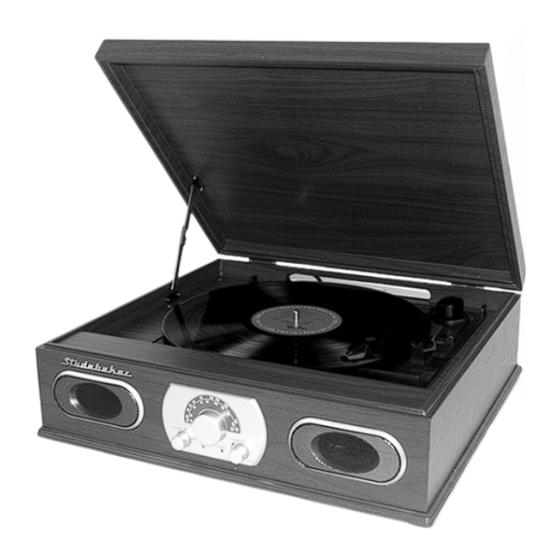

FCC NOTICE THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A RADIO RECEIVER, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE IN A RESIDENTIAL INSTALLATION. - Page 5 1) DUST COVER 2) LEFT SPEAKER 3) DIAL SCALE 4) TUNING KNOB 5) FUNCTION SELECTOR (PHONO/AM/FM/FM STEREO) 6) FM STEREO INDICATOR 7) RIGHT SPEAKER 8) POWER ON/OFF AND VOLUME CONTROL 9) POWER LED INDICATOR 10) 45 RPM ADAPTOR 11) 33/45/78 RPM SPEED SELECTOR 12) TONE ARM CLAMP 13) AUTO STOP SWITCH 14) LINE OUT SOCKET...
- Page 6 EXPERIENCE THIS DURING PLAYBACK, SET THE AUTO-STOP SWITCH (13) LOCATED ON THE BACK OF THE UNIT TO THE “OFF” POSITION. THE TURNTABLE WILL NOW RUN TO THE END OF THE RECORD BUT WILL NO LONGER STOP AUTOMATICALLY. TO STOP THE TURNTABLE YOU WILL NEED TO EITHER SET THE FUNCTION SELECTOR (5) TO ANOTHER POSITION OTHER THAN PHONO OR RETURN THE AUTO-STOP SWITCH (13) TO THE “ON”...
-
Page 7: Stylus Replacement
LINE OUT OPERATION FOR BETTER PLAYBACK SOUND, YOU CAN CONNECT THE SB6051 TO AN EXTERNAL AUDIO AMPLIFIER VIA THE RCA LINE OUT JACKS LOCATED ON THE BACK PANEL. PLEASE PROCEED AS FOLLOWING: CONNECT THE “L” & “R” LINE OUT JACKS AND THE AUX IN OF YOUR AUDIO AMPLIFIER. (CONNECTION CABLE IS NOT INCLUDED). -
Page 8: Troubleshooting Guide
TROUBLESHOOTING GUIDE SHOULD YOU EXPERIENCE DIFFICULTIES IN THE USE OF THIS PLAYER PLEASE REFER TO THE FOLLOWING CHART OR CALL 1-800-777-5331 FOR CUSTOMER SERVICE. PROBLEM • THE UNIT IS DISCONNECTED FROM THE AC OUTLET THE UNIT WILL NOT PLAY • THE AC OUTLET HAS NO POWER POOR AM OR FM •... - Page 9 90 DAY LIMITED WARRANTY AND SERVICE SPECTRA MERCHANDISING INTERNATIONAL, INC. warrants this unit to be free from defective materials or factory workmanship for a period of 90 days from the date of original customer purchase and provided the product is utilized within the U.S.A. This warranty is not assignable or transferable. Our obligation under this warranty is the repair or replacement of the defective unit or any part thereof, except batteries, when it is returned to the SPECTRA Service Department, accompanied by proof of the date of original consumer purchase, such as a duplicate copy of a sales receipt.
