Related Manuals for Pioneer Athletics BRITE STRIPER 1100
Summary of Contents for Pioneer Athletics BRITE STRIPER 1100

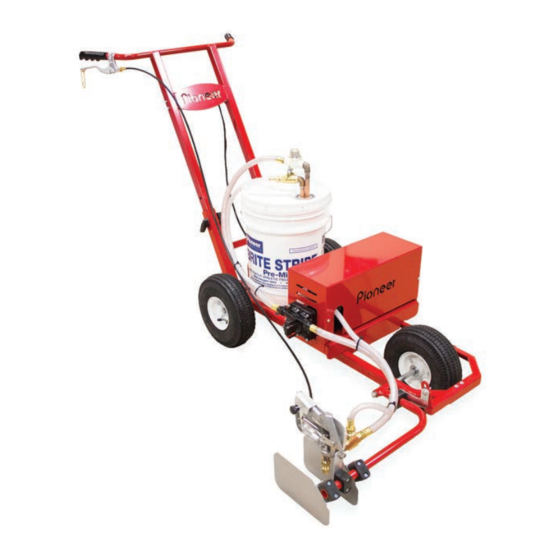

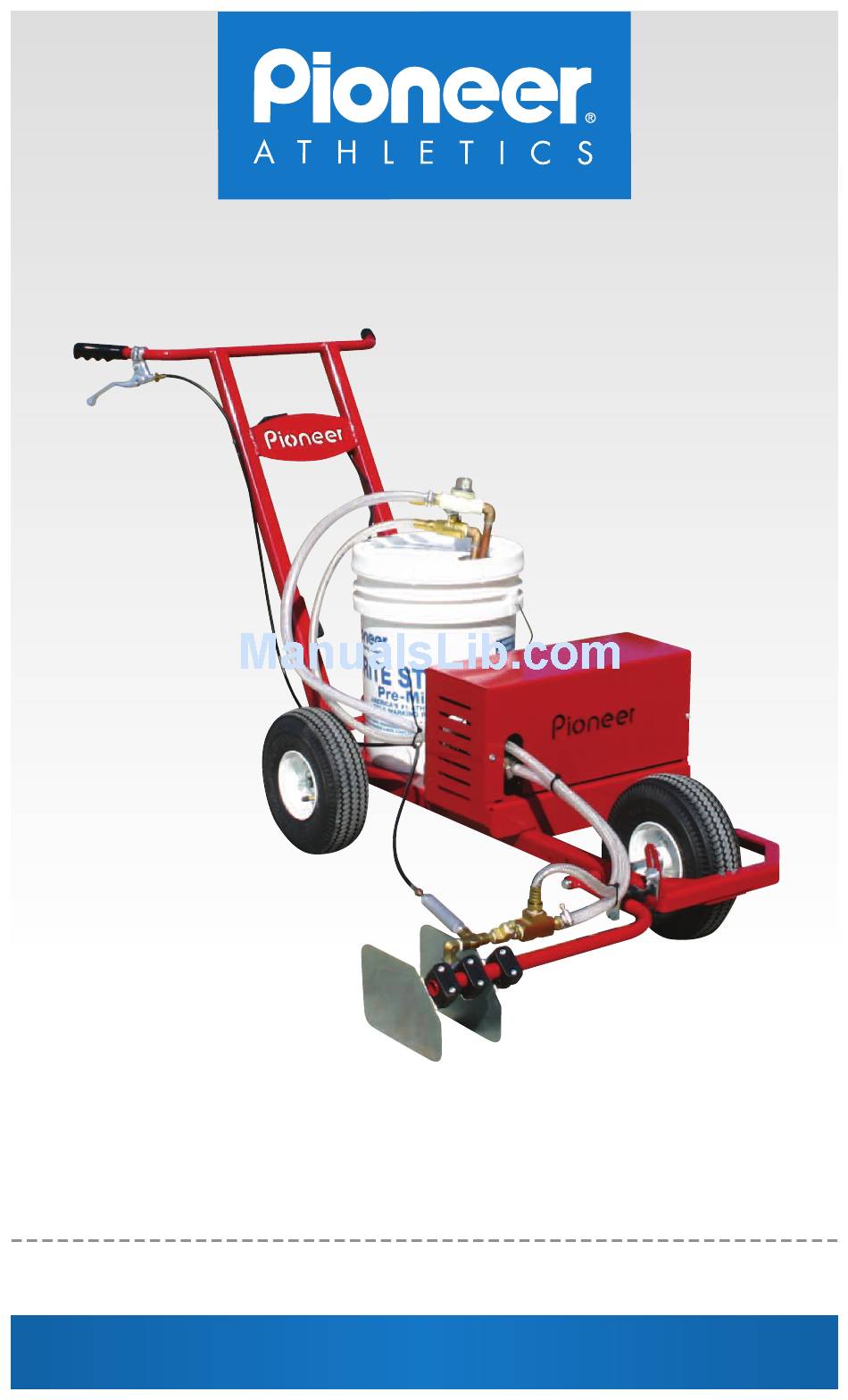

- Page 1 BRITE STRIPER 1100 INSTRUCTION MANUAL AND PARTS LISTING 800-877-1500 | www.pioneerathletics.com...
- Page 2 Congratulations on your Looking for more purchase of a new Brite information to help Striper 1100! you stripe your field? Check out our website: Turn your new and versatile electric field marking machine into a truly pioneerathletics.com green package with Pioneer’s Brite...
-
Page 3: Table Of Contents
Charging Instructions ................. 3 Indicator Light Instructions ..............3 Operation & Care Before Starting ................... 2 Operation of the Brite Striper 1100 ............ 4 Striping Tips ..................4 Clean-Up Process ................5 How to Store ..................5 Normal Wear ..................5 Pump Precautions ................ -
Page 4: Tools Necessary For Assembly
Do not over- tighten side plates. Before Starting: The Brite Striper 1100 is shipped as a ready to use striper, complete with a premium, sealed battery and charger. Before operating, follow these directions. -
Page 5: Charging Instructions
CHARGING Charger Operation: Intitialization: Red Light On, Green Light Off: Monitor Circuit verifies appropriate battery voltage levels and good electrical continuity. Bulk Charge: Red Light On, Green Light Off: Constant Current at Full Power. Switch to Absorption at 75%-80% full recharge. Absorption Charge: Red Light On, Green Light Flashing: Constant Voltage at Absorption Level. -
Page 6: Operation Of The Brite Striper 1100
OPERATION | STRIPING TIPS Machine Operation: 1. The Brite Striper 1100 needs to be charged completely before you can use it. The striper is shipped with an automatic charger. 2. Once charged, test-run the machine with water to see how it operates. -
Page 7: Clean-Up Process
MAINTENANCE AND STORAGE Clean-Up Process: 1. All parts of your Pioneer Brite Striper, except those enclosed in the component box, should be cleaned immediately after each use. We recommend Pioneer P.H.D. Cleaner. A clean, lint-free rag should be used to wipe dry the machine. 2. -
Page 8: Trouble Shooting & Parts Parts List & Parts Explosion Drawing
PARTS LIST Brite Striper Model 1100: KEY# PART# DESCRIPTION KEY# PART# DESCRIPTION 1503 1541 Hand Grip Nozzle Assembly 1621 Handle with 9508 Tip 1513 1625 Frame Male X Female Elbow 0116 1600 Nozzle Body Nut & Bolt Kit 1110 0115... - Page 9 PARTS LIST Brite Striper Model 1100:...
-
Page 10: Pump Precautions
PUMP | PRESSURE SWITCH Pump Precautions: CAUTION “Intermittent Duty” is defined as; operated and/or frequently start- ed within a period of time that would cause the motor to reach its maximum thermal limits. Once the maximum thermal limit is obtained, the motor must be allowed to return to ambient temperature before resuming operation. -
Page 11: Trouble Shooting
TROUBLESHOOTING STRIPER DOES NOT STRIPE A FULL LINE 1. Was paint strained? 2. Check paint level. 3. Check the screens for clogs. Clean as needed. 4. Check the suction tube strainer for clogs. Clean as needed. 5. Check nozzle tip for proper alignment - horizontal. 6. - Page 12 TROUBLESHOOTING CHECK IF MACHINE WILL NOT PRIME (no discharge/motor runs) 1. Out of product 2. Strainer for debris 3. Inlet tubing/plumbing for severe vacuum leak 4. Inlet/Outlet tubing severely restricted (kinked) 5. Debris in pump inlet/outlet valves 6. Proper voltage with the pump operating (±10%) 7.
-
Page 13: Customer Service
CUSTOMER SERVICE Call our Customer Service Reps From 8:00am - 4:45pm (EST) 1-800-877-1500 Call us with any questions you may have concerning the care,assembly, operation, or maintenance of this product. Before you call be sure that unsatisfactory operation is not due to inadequate care or cleaning, abuse, or neglect. -
Page 14: Limited Warranty Information
LIMITED WARRANTY For a period of three years from date of purchase, PIONEER MANUFAC- TURING COMPANY will replace for the original PURCHASERS, any part or parts* of the line Striper (a five (5) year limited warranty against rust-out on stainless steel tanks), found upon examination by a PIONEER FACTO- RY-trained representative, to be defective in material or workmanship or both;... - Page 15 North America because Brite Stripe delivers an MVP performance every time. Brite Stripe is just another of many examples that to Pioneer Athletics, Ingredients Matter. GameDay Ultra-Friendly When it’s All on the Line. An exclusive formula for exclusive excellence.
- Page 16 Visit our website or call us for more information on the following athletic field and facility products: ULTRA-FRIENDLY ZERO-VOC PAINTS | SYNTHETIC TURF FIELD MARKING PAINTS AEROSOL AND BULK FIELD MARKING PAINTS | FIELD MAINTENANCE FACILITY MAINTENANCE | STENCILS, MATS, WALLPADS AND WINDSCREENS FIELD LAYOUT GUIDES | SPORTS ACCESSORIES | FIELD MARKING EQUIPMENT Phone: 800-877-1500 Check out our Blog!
