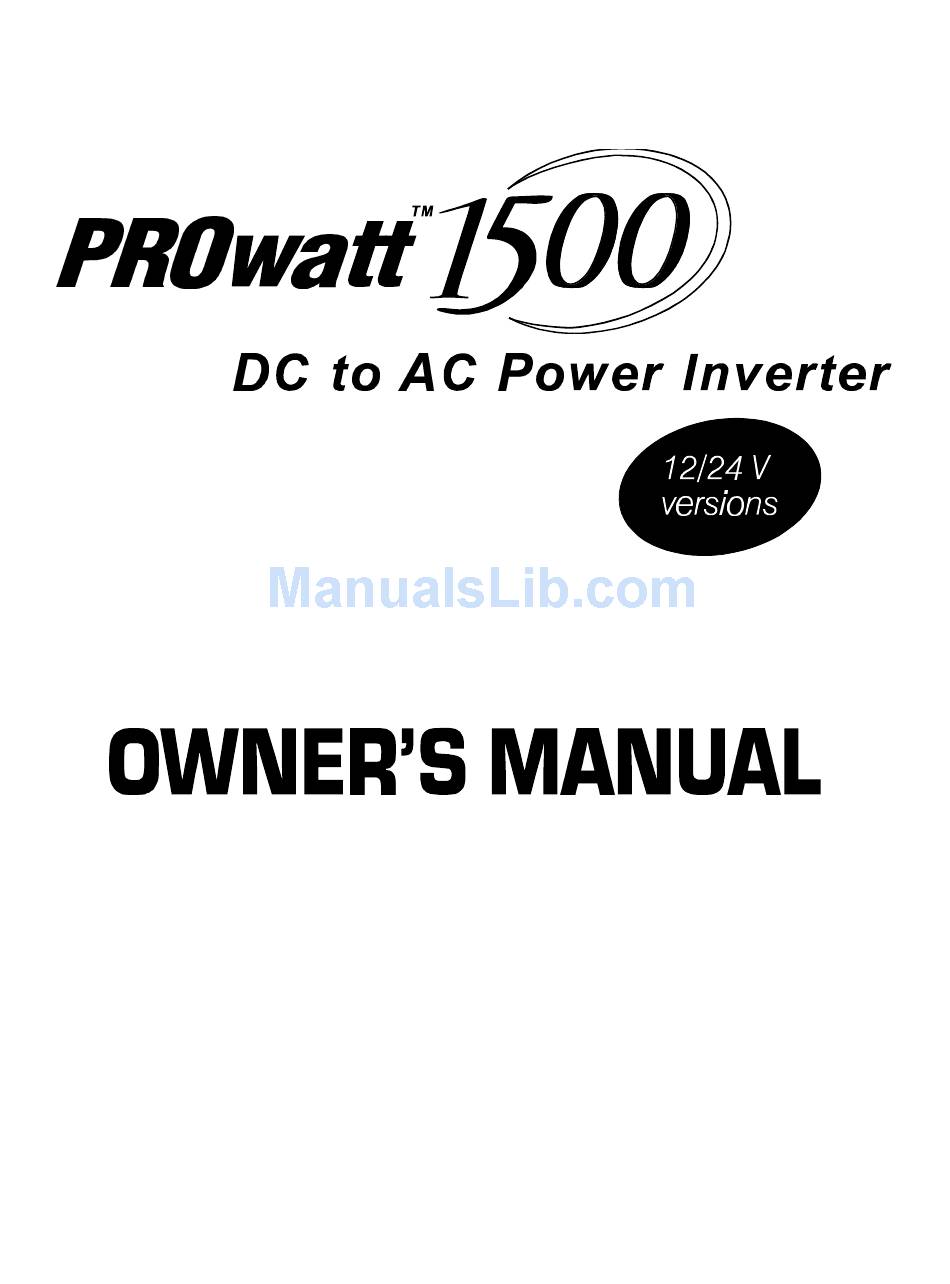

Statpower PROwatt 1500 Owner's Manual

12/24 v dc to ac power inverter
Hide thumbs Also See for PROwatt 1500:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROwatt 1500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Statpower PROwatt 1500

Summary of Contents for Statpower PROwatt 1500

  • Page 3: Table Of Contents

    6.1 Common Problems ..........................20 6.2 Troubleshooting Guide..........................21 7 Maintenance................................22 8 Warranty................................22 9 Specifications ..............................24 9.1 Electrical Performance ..........................24 9.2 Dimensions............................24 PROwatt is a trademark of Statpower Technologies Corporation. Copyright © 1996, 1997, 1998, 1999 Statpower Technologies Corporation. All rights reserved.

  • Page 4: Introduction

    1 Introduction Your new PROwatt 1500 inverter is a member of the most advanced line of dc to ac inverters available today. It will give you years of dependable service in your boat, RV, service vehicle or remote home. To get the most out of your PROwatt 1500, it must be installed and used properly. Please read the installation and operating instructions in this manual carefully before installing and using your PROwatt 1500.

  • Page 6: Prowatt 1500 Output Waveform

    2.2 PROwatt 1500 Output Waveform The AC output waveform of the PROwatt 1500 is called a "quasi-sine wave" or a "modified sine wave". It is a stepped waveform that is designed to have characteristics similar to the sine wave shape of utility power. A waveform of this type is suitable for most AC loads, including linear and switching power supplies used in elec- tronic equipment, transformers, and motors.

  • Page 7: Quick Checkout

    We recommend #2 AWG (#4 AWG on PW1500/24) stranded copper cable that is no longer than 4 ft (1.2 m) if you want to test the PROwatt 1500 to its maximum ratings. For short term testing at reduced power levels, the...

  • Page 8: Test Loads

    3.4 Connections Follow the connection sequence described below. STEP 1 Ensure that the ON/OFF switch on the PROwatt 1500 is in the OFF position. If the power source is a DC power supply, switch it off as well. STEP 2 Connect the cables to the power input terminals on the rear panel of the PROwatt 1500. The red termi- nal is positive (+) and the black terminal is negative (-).

  • Page 9: Installation

    PROwatt 1500. Leave the test load switched off. STEP 8 Set the PROwatt 1500 ON/OFF switch to the ON position and turn the test load on. The PROwatt 1500 should supply power to the load. If it does not, refer to the troubleshooting section of this manual. If you plan to measure the output voltage of the PROwatt 1500, refer to Section 2.2 of this manual.

  • Page 10: Battery

    4.2 Battery The battery you use strongly affects the performance you can expect from your PROwatt 1500. It is important to connect the PROwatt 1500 to the correct size and type of battery. The following information will help you select the appropriate batteries for your application.

  • Page 11: Battery Sizing

    This can normally be found on a label on the product. If only the current draw is given, multiply the current draw by 115 to get the power consumption in watts. STEP 2 For each piece of equipment you will be operating from the PROwatt 1500, estimate how many hours it will operate between battery charging cycles.

  • Page 12: Using Multiple Batteries

    INVERTER BATTERY SIZE OUTPUT BCI GROUP SIZE: 20NF DUAL 8D's POWER TYPICAL LOAD RESERVE CAPACITY 90 MINUTES 140 MINUTES 180 MINUTES 400 MINUTES 900 MINUTES (WATTS) AMP-HRS: OPERATING TIME: STEREO SYSTEM 9 HOURS 14 HOURS 20 HOURS 40 HOURS 80 HOURS OPERATING TIME: 19"...

  • Page 13: Battery Tips

    Figure 8. Recommended Battery Configuration for Heavy-Duty Applications Note: PW1500/24 model inverter only: 24 Volt systems typically have 2 x 12 Volt batteries connected in series. Battery Tips 1. Lead-acid batteries may emit hydrogen and oxygen gases, and sulfuric acid fumes when recharging. Vent the battery compartment to prevent accumulation of these gases, and do not install electronic or electrical equip- ment in the battery compartment.

  • Page 14: Alternators And Charging Systems

    When possible, recharge your batteries when they are about 50% discharged. This will give you much longer battery cycle life than recharging when the batteries are almost completely discharged. The Statpower TRUEcharge family of battery chargers are designed to maximize your batteries’ performance and useful life (see your Statpower dealer for more details).

  • Page 15: Cables

    WARNING! 115 Volt AC power is potentially lethal. Do not work on AC wiring while the wiring is connected to the PROwatt 1500 (even if it is switched off) unless the DC power source is physically disconnected from the...
  • Page 16 Connect the ground lead of your AC cable to the internal ground lug on the rear panel of the PROwatt 1500. Strip the hot and neutral leads of your AC cable 1/4 inch (6mm) and connect to the AC output terminal blocks on the PROwatt 1500 circuit board (labeled "...
  • Page 17 2. Do not connect the PROwatt 1500 and another AC source (such as a generator or utility power) to the AC wiring at the same time. The PROwatt 1500 will not operate if its output is connected to AC voltage from another source and potentially hazardous or damaging conditions may occur.

  • Page 18: Ground Wiring

    The PROwatt 1500 has a screw terminal on the rear panel labeled Chassis Ground. This is to connect the chassis of the PROwatt 1500 to ground. The ground terminal in the AC outlet on the front panel of the PROwatt 1500 is connected to the chassis.

  • Page 19: Dc Wiring

    STEP 5 Connect the cable from the positive (red) terminal of the PROwatt 1500 to the positive terminal of the battery Main Fuse, or to the battery selector switch, if you are using one. Make a secure connection.

  • Page 20: Remote Panel

    STEP 6 If you are using a battery selector switch, switch it to select one of the batteries. Set the ON/OFF switch on the PROwatt 1500 to the ON position. Check the meters and indicators on the front panel of the PROwatt 1500.

  • Page 21: Operation

    When the switch is in the OFF position, the PROwatt 1500 draws no current from the battery. When the switch is in the ON position but no power is being supplied to the load, the PROwatt 1500 (12 and 24 volt) draws less than 500 milliamperes from the battery.

  • Page 22: Operating Limits

    10.7 volts (21.5V for PW1500/24), an audible low battery warning will sound and the voltage indi- cator will be in the lower red zone. The PROwatt 1500 will shut down if the input voltage drops below 10 volts...

  • Page 23: Troubleshooting

    Operation of the PROwatt 1500 can interfere with television reception on some channels. If this situation occurs, the following steps may help to alleviate the problem: 1. Make sure that the chassis ground lug on the back of the PROwatt 1500 is solidly connected to the ground system of your vehicle, boat, or home.

  • Page 24: Troubleshooting Guide

    6.2 Troubleshooting Guide Problem and Symptoms Possible Cause Solution Low output voltage Using average reading Use true RMS reading meter. (96 VAC to 104 VAC) voltmeter See section 2.2 of manual Low output voltage and Overload Reduce load. current indicator in red zone. No output voltage and voltage Low input voltage Recharge battery, check...

  • Page 25: Maintenance

    You must obtain a Return Authorization Number from Statpower before returning a product directly to Stat- power. Do not return a product to Statpower without first obtaining a Return Authorization Number. When you contact Statpower to obtain service, be prepared to supply the serial number of your product and its date of pur- chase.
  • Page 26 If you are returning a product from the USA, follow this procedure: 1. Obtain a Return Authorization Number from Statpower. 2. Package the unit safely, preferably using the original box and packing materials. Include the Return Authori- zation Number, a copy of your dated proof of purchase, a return address where the repaired unit can be shipped, a contact telephone numbers, and a brief description of the problem.

  • Page 27: Specifications

    9 Specifications 9.1 Electrical Performance PW1500/12 PW1500/24 Output Power 30 minutes: 1800 watts 1800 watts 10 minutes: 2000 watts 2000 watts Continuous: 1500 watts 1500 watts Output voltage: 115 VAC RMS ± 5% 115 V AC RMS ± 5% Output waveform: Modified sine wave, Modified sine wave, phase corrected...
  • Page 28 7725 Lougheed Highway Burnaby, BC Canada, V5A 4V8 Tel: (604) 420-1585 Fax: (604) 420-1591 www.statpower.com Part No. 445-0077-01 Rev. 1...
