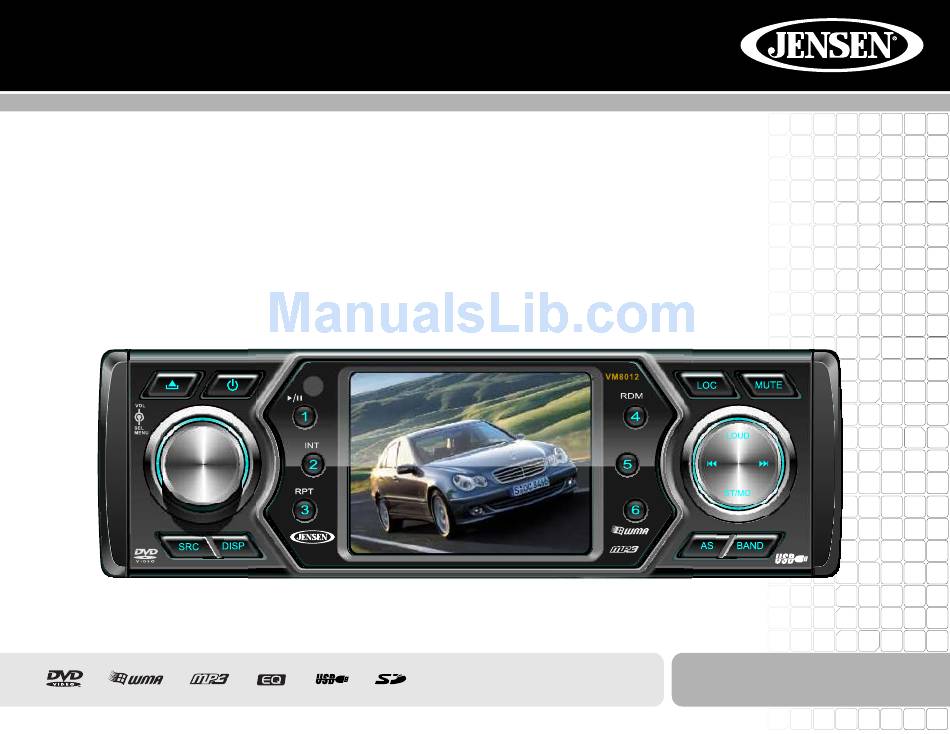

- Page 1 VM8012 Installation and Operation Manual Watts Peak Watts en Crête Vatios el Máximo 40W x 4...
-
Page 3: Table Of Contents
VM8012 TABLE OF CONTENTS Introduction ...1 Installation ...1 Wiring ...3 Front Panel Release ...4 Remote Control ...5 Operation ...6 Tuner Operation ...8 Disc/MP3/WMA Playback ...9 System Setup Menu ...11 USB/SD Operation ...13 Care and Maintenance ...16 Troubleshooting ...17 Specifications ...18... - Page 4 VM8012...
-
Page 5: Introduction
1. Disconnect Battery Before you begin, always disconnect the battery negative terminal. NOTE: If the VM8012 is to be installed in a car equipped with an on- board drive or navigation computer, do not disconnect the battery cable. If the cable is disconnected, the computer memory may be lost. -
Page 6: Reconnect Battery
Technical Assistance If you require assistance, contact Technical Support at 1-800-323-4815 from 8:30am to 7:00pm EST Monday through Friday and from 9:00am to 5:00pm EST on Saturday. VM8012... -
Page 7: Wiring
VM8012 WIRING NOTE: The amplifier in this radio is only designed for use with four speakers. Never combine (bridge) outputs for use with two speakers. Never ground negative speaker leads to chassis ground. Failure to wire exactly as shown may cause electrical damage to the radio. -
Page 8: Front Panel Release
1. With the panel laying flat (in the “open” position), insert the left side of the panel in place until correctly engaged. 2. Gently press the right side of the panel until the mechanism locks it into place. 3. Lift upward to close the panel. VM8012... -
Page 9: Remote Control
VM8012 REMOTE CONTROL The remote control will allow you to control the advanced functions of the VM8012. 1. ZOOM (DVD, VCD only) 2. TITLE (DVD only) 3. Power On/Off 4. SETUP: Access DVD Setup 5. Menu Navigation 6. ENTER 7. PROG: Enter Programmed Playback mode. -
Page 10: Operation
When the equalizer function is activated, the most recently selected bass/ treble levels cannot be adjusted. When the equalizer function is not active, the unit will return to the most recently selected bass and treble levels. VM8012 MUTE LOUD ST/MO... - Page 11 VM8012 BEEP The beep tone feature allows the selection of an audible beep tone to be heard each time the menu is accessed. “ON” is the default setting. Turn the rotary encoder to select “OFF”. 12 / 24 MODE This option allows selection of a 12 hour or 24 hour clock format. “24 HOUR”...
-
Page 12: Tuner Operation
When using the AUTO PRESET feature, the new stations replace any stations already stored in preset memory. NOTE: You can stop the AUTO PRESET function at any time by pressing the AS button again. VM8012 PRESET NUMBER EQUALIZER INDICATOR... -
Page 13: Disc/Mp3/Wma Playback
VM8012 DISC/MP3/WMA PLAYBACK DISP Insert and Eject Disc Press the button (4) to flip the front panel down. Insert a disc, label side up, into the disc slot (18). To stop disc play and eject the disc, press the panel down and then press the eject button (1). -
Page 14: Programmed Playback
If this does not solve the problem, pressing the RESET button (22) may help, but will erase the time and preset memory. If the suggested measures do not solve the problem, contact an approved warranty station near you for further assistance. VM8012... -
Page 15: System Setup Menu
VM8012 SYSTEM SETUP MENU During disc play, press the SETUP button on the remote control to access the SYSTEM SETUP menu. SYSTEM LANGUAGE VIDEO VIDEO FORMAT SCREEN SAVER ASPECT RATIO PASSWORD RATING DEFAULT EXIT SETUP Use the cursor buttons to choose between SYSTEM, LANGUAGE, or VIDEO setup options. - Page 16 (if available) Turn subtitles off Select the default lan- guage in which you would like the DVD menu (if applicable) to be displayed. Use the cursor but- tons to set the video out- put options VM8012...
-
Page 17: Usb/Sd Operation
Many types of software are available for converting audio files into MP3/ WMA formats. Jensen recommends Nero or Roxio Easy CD Creator. This unit can play MP3 (MPEG1, 2, 2.5 Audio Layer 3). However, the MP3 recording media and accepted formats are limited. When writing MP3/ WMA, pay attention to the following restrictions. - Page 18 Folder Search, File Search or Folder Select as shown below. The VM8012 player will only recognize three folder levels and does not display folders containing only other folders. In the example above, the unit will display folders 3, 4, 6, and 8, but not 2 and 7 since they do not contain any tracks directly.
- Page 19 VM8012 File Playback When a disc or device (SD, USB) containing individual music, video and/or photo files is inserted, the following screen appears: Folder Name File Name Folder List Category List The category, folder or file list is displayed on screen with the name of the file/folder being played displayed on top.
-
Page 20: Care And Maintenance
5. Carefully wipe fingerprints, dust and dirt from the disc’s playing surface with a soft cloth. Wipe in a straight motion from the inside to the outside of the disc. 6. Do not stick paper, tape or disc labels on disc surfaces, as internal damage may occur. or NERO burning VM8012... -
Page 21: Troubleshooting
VM8012 TROUBLESHOOTING Problem Cause Does not operate (dis- No power to yellow wire; no play does not light) power to red wire Fuse blown No power to unit Fuse blown No/low audio output Improper audio output connec- tion Volume set too low... -
Page 22: Specifications
DIN Chassis Dimensions..... 7" X 7" X 2" (178mm x 178mm x 50mm) *Specifications subject to change without notice. VM8012... -
Page 23: Limited Warranty
Limited Warranty CD or Multimedia Radios/Headunits Audiovox Electronics Corporation (“the Company”) is committed to quality and customer service, and are pleased to offer you this Warranty. Please read it thoroughly and contact the Company at 1-800- 323-4815 with any questions. Who is covered? The Company extends this warranty to the original retail purchaser of products purchased through an authorized Audiovox retailer in the U.S.A., Puerto Rico or... - Page 24 Audiovox Electronics Corporation Hauppauge, NY 11788 Technical Assistance: 1-800-323-4815 www.jensen.com © 2007 Audiovox Ver. 033007 Printed in China...
