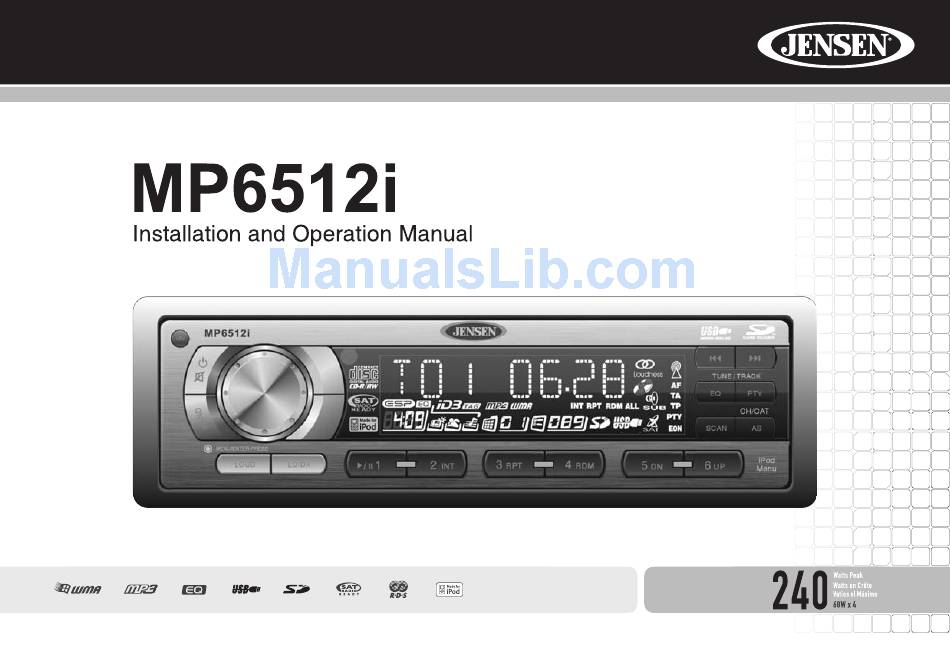

Jensen MP6512i Installation And Operation Manual
Mobile receiver
Hide thumbs
Also See for MP6512i:
- Service manual (11 pages) ,
- Installation and operation manual (30 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Service Manual
Advertisement
Table of Contents
Related Manuals for Jensen MP6512i
Summary of Contents for Jensen MP6512i
-
Page 3: Table Of Contents
MP6512i TABLE OF CONTENTS Introduction ...1 Installation ...2 Wiring ...5 Front Panel Release ...6 Operation ...7 Tuner Operation ...10 CD Player Operation ...12 MP3/WMA Operation ...13 Satellite Radio Operation ...17 iPod Operation ...19 Remote Control ...20 Care and Maintenance ...21 Troubleshooting ...22... - Page 4 MP6512i...
-
Page 5: Introduction
MP6512i INTRODUCTION Congratulations on your purchase of the Jensen MP6512i Mobile Receiver. It’s a good idea to read all of the instructions before beginning the installation. We recommend having your Jensen MP6512i installed by a reputable installation shop. Features CD / MP3 / WMA •... -
Page 7: Installation
MP6512i CAUTION: For proper operation of the CD player, the chassis must be mounted within 20° of horizontal. Make sure the unit is mounted within this limitation. Place the radio in front of the dashboard opening so the wiring can be brought through the mounting sleeve. -
Page 8: Removing The Radio
MP6512i Removing the Radio To remove the radio after installation, remove the trim ring by lifting in the center and pulling it off from either side. Insert the removal keys straight back until they lock, then pull the radio out. If removal keys are inserted at an angle, they will not lock properly and will not release the unit. -
Page 10: Front Panel Release
Position the right side of the panel in place until correctly engaged, then lightly press the left side of the panel until the mechanism locks it into place. MP6512i... -
Page 11: Operation
MP6512i OPERATION Power Press the power button (2) to turn the unit on. Press and hold the power button again to turn the unit off. NOTE: LCD panels may take longer to respond when subjected to cold temperatures for an extended period of time. In addition, the visibility of the numbers on the LCD may decrease slightly. -
Page 12: Loudness On/Off
Loudness On/Off When listening to music at low volume levels, this feature will boost the bass and treble ranges to compensate for the characteristics of human hearing. To change the loudness setting, press the LOUD button (5) to MP6512i... -
Page 13: Menu Operation
MP6512i select “OFF”, “LOW”, “MID” or “HIGH”. When activated, “LOUDNESS” appears on the display panel. Local/Distant Reception (LO/DX) When the Local function is on, only radio stations with a strong signal are played. To activate Local reception mode, press the LO/DX button (6). -
Page 14: Tuner Operation
TUNER OPERATION The MP6512i allows you to receive channels in U.S.A. or EUROPE mode. See “Frequency Spacing (AREA SET)” on page 9 to learn how to change the tuner options. MP6512i READY Select a Band Press the BAND button (3) to change between three FM and two AM bands. - Page 15 MP6512i • Language • Religious Music • Religious Talk • Personality • Public • College • Weather • Emergency Test • Emergency To search for stations in a PTY category: Press the PTY button (17) to view the current PTY category.
-
Page 17: Mp3/Wma Operation
(or optional remote control) as described below. Many types of software are available for converting audio files into MP3/WMA formats. Jensen recommends Nero or Roxio Easy CD Creator. Depending on the media type and recording method, some CD-R/ RWs may be incompatible with this unit. -
Page 18: Loading An Sd Card
Folder Search, File Search or Folder Select as shown below. The MP6512i player will only recognize three folder levels and does not display folders containing only other folders. In the example above, the unit will display folders 3, 4, 6, and 8, but not 2 and 7 since they do not contain any tracks directly. -
Page 19: Track Select
MP6512i MP6512i READY Pause Press the pause >/|| button (8) to suspend play. Press the pause >/|| button again to resume play. Accessing the ID3 Tag Press the DISP button (21) repeatedly during MP3/WMA play to access the ID3 information manually. The display will show any of the following information that is programmed on the source: Folder Name, File Name, Track Title, Artist Title, Album Name. - Page 20 MENU button to access the file (if a match is found). If only two characters are entered and there is more then one file that begins with these characters, turn the rotary encoder to navigate the files or folders. Press MENU to confirm and play the file. MP6512i...
-
Page 21: Satellite Radio Operation
MP6512i SATELLITE RADIO OPERATION ® Listeners can subscribe to XM Radio on the Web by visiting www.xmradio.com, or by calling (800) 967-2346. Customers should have their Radio ID ready (see “Displaying the Identification (ID) Code”). Customers can receive a limited number of free-to-air channels without activation. -
Page 22: Display Modes
Press the DISP button (21) to change the mode to the following options in the order listed. • Channel Name • Genre (News, Sports, Hits, Kids, etc.) • Artist name • Song Name If the selected channel name, artist, or title exceeds eight characters, the display information will scroll upon selection. MP6512i... -
Page 23: Ipod Operation
MP6512i IPOD OPERATION Accessing iPod Mode Press the SRC button (7) to change to iPod playback mode. iPod playback begins automatically when an iPod is connected. MP6512i READY Selecting a Track Press the TUNE/TRACK >>| or |<< button (19) to select a track. -
Page 24: Remote Control
REMOTE CONTROL The remote control will allow you to control many functions of the MP6512i. MUTE MENU CH/CAT SCAN BAND DISP Operating Range The remote control sensor (20) is located to the right of the SRC button. The remote control can operate within a distance of 3~5m. -
Page 25: Care And Maintenance
MP6512i CARE AND MAINTENANCE CD Player The following guidelines will help you extend the life of your CD player: When cleaning the vehicle interior, do not get water or cleaning fluids on the unit. The CD player will not operate properly in extreme hot/cold or under damp conditions. -
Page 26: Troubleshooting
Blows fuses Power wire shorting to Make sure wire is not pinched ground Speaker wires shorting Make sure wire is not pinched to ground Incorrect fuse; fuse too Install fuse of correct rating small Corrective Action MP6512i... -
Page 27: Specifications
MP6512i SPECIFICATIONS CEA Power Ratings Power Output ....18 watts RMS X 4 channels into 4-ohms @ < 1% THD+N Signal to Noise Ratio....70dBA below reference (reference: 1 watt, 4-ohms) Frequency Response . - Page 28 MP6512i...
-
Page 29: Limited Warranty
CD or Multimedia Radios/Headunits Audiovox Electronics Corporation (“the Company”) is committed to quality and customer service, and are pleased to offer you this Warranty. Please read it thoroughly and contact the Company at 1-800- 323-4815 with any questions. Who is covered? The Company extends this warranty to the original retail purchaser of products purchased through an authorized Audiovox retailer in the U.S.A., Puerto Rico or Canada. - Page 30 Audiovox Electronics Corporation Audiovox Electronics Corporation Hauppauge, NY 11788 Hauppauge, NY 11788 Technical Assistance: 1-800-323-4815 Technical Assistance: 1-800-323-4815 www.jensen.com www.jensen.com © 2007 Audiovox © 2007 Audiovox Ver. 052107 Ver. 013007 Printed in China Printed in China...
