G 2600 PC
English
Español
Français
9.800-499.0 01/10A
2
16
31

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G 2600 PC and is the answer not in the manual?

Questions and answers

Related Manuals for Kärcher G 2600 PC

Summary of Contents for Kärcher G 2600 PC

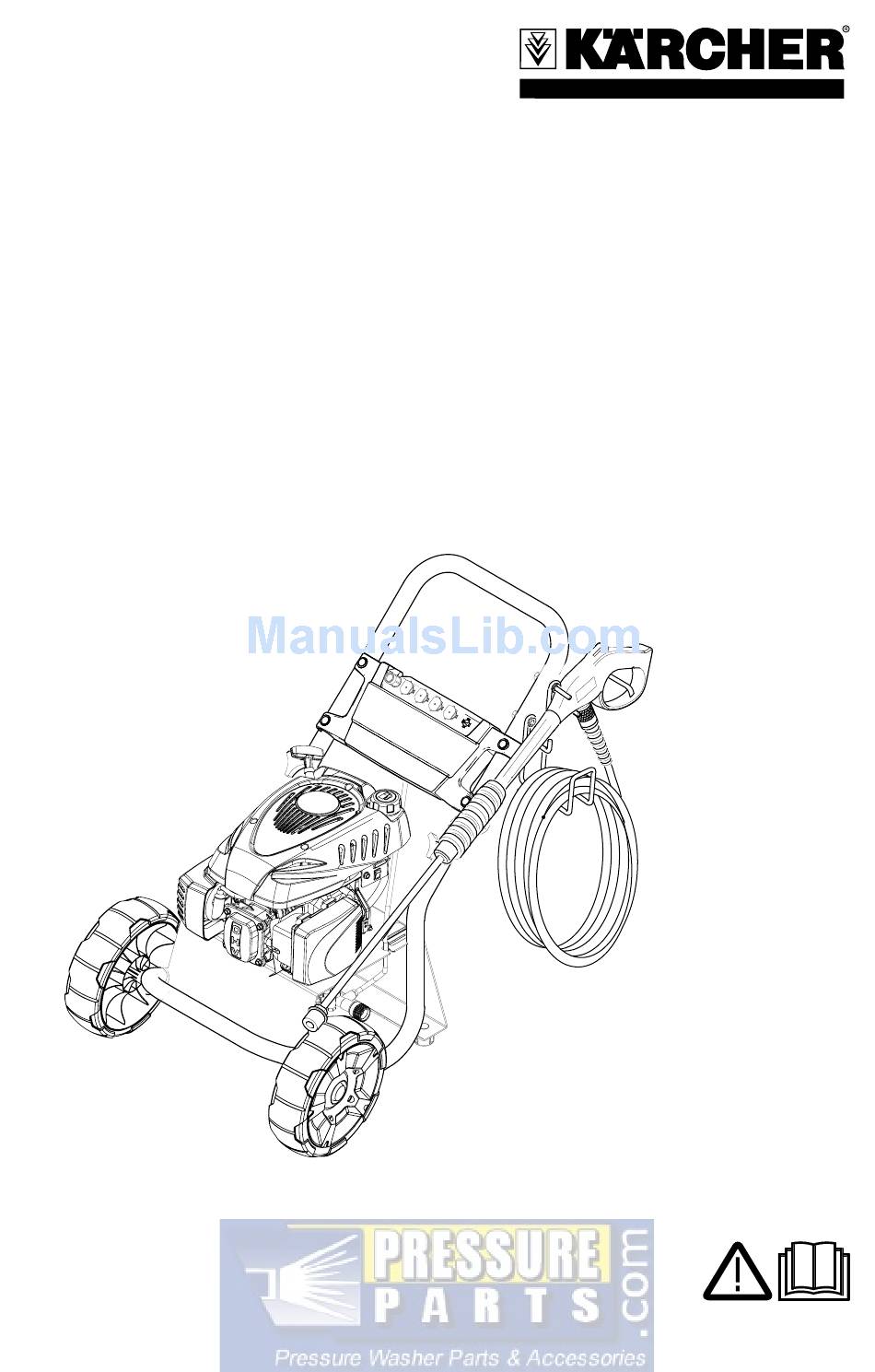

  • Page 1 G 2600 PC English Español Français 9.800-499.0 01/10A...

  • Page 2: Table Of Contents

    0.15 - 0.20 GPM technical support and product assistance. Engine 173cc Please take a moment to register your product online at www.karcher-register.com. Be sure to Part No. G2600 PC 1.107-111.0 save your purchase receipt, it will be required for Serial no.

  • Page 3: Model Overview

    MODEL OVERVIEW 1 Handle 9 Quick connect high pressure outlet 2 Trigger gun 10 Detergent suction tube with filter 3 Trigger gun safety lock 11 Quick connect nozzles 4 High pressure hose 12 Water intel filter 5 Gas tank For engine details see engine manual. 6 Spray wand 7 Dipstick 8 Water inlet with garden hose connector...

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS ■ Read the operating instructions of the engine WARNING Gun Kicks Back – Hold with both hands. manufacturer before start-up and follow the ■ safety instructions carefully. The Trigger Gun Safety Lock prevents the trigger from accidentally being engaged. WARNING When using this product basic precautions should This safety feature DOES NOT lock trigger...

  • Page 5: Water Supply

    WATER SUPPLY (Cold Water Only) ■ CAUTION Flow rate of water supply must not fall When connecting the water inlet to the water below 2.5 GPM (gallons per minute). ■ supply mains, local regulations of your water Flow rate can be determined by running the company must be observed.

  • Page 6: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Assembling STEP 5: STEP 1: Attach the wand to the spray gun. Attach the handle to the frame of the pressure washer. Align holes, insert bolts, and tighten with knobs. STEP 6: Pull the spring-loaded collar of the wand back to STEP 2: insert your choice of quick connect nozzle.
  • Page 7 STEP 8: Pull back the springloaded collar at the spray gun and insert the high pressure hose. Release the collar and push the high pressure hose until the collar clicks WARNING High pressure in quick connect area. Risk of injury caused by improperly locked high pressure hose.

  • Page 8: Operating Instructions

    OPERATING INSTRUCTIONS CAUTION WARNING Engine shipped without oil. Before starting engine, fill High pressure in quick connect area. with oil. Do not over-fill. Do not run the engine with a Risk of injury caused by improperly locked high or low oil level as this can cause engine damage. high pressure hose.

  • Page 9: Using The Accessories

    USING THE ACCESSORIES Quick connect nozzles The color-coded quick connect nozzles provide a wide array of spray widths from 0° to 65° and are easily accessible when placed in the convenient nozzle holder. 0° spray angle = Red nozzle For particularly stubborn accumulation of grime. Not recommended for soft materials like sid- ings, decks, painted surfaces, cars.

  • Page 10: Working With Detergents

    STEP 2: www.soappac.com Fill a container (not included) with Kärcher de- www.karcher-usa.com/home tergent. Place the filter end of detergent suction tube into the container. Kärcher detergents available: – All Purpose & Vehicle Cleaner – Exterior House Cleaner –...

  • Page 11: Taking A Break ..Five Minutes Or More

    TAKING A BREAK ..five minutes or more STEP 1: STEP 2: Move the engine stop switch to the OFF position. Release trigger and engage gun safety lock. For engine details see engine manual. SHUTTING DOWN & CLEAN-UP STEP 1: Remove detergent suction tube from container and insert into 1 gallon of fresh water.

  • Page 12: Winterizing And Long-Term Storage

    Kärcher-Authorized operating instructions provided by engine Service Center for repair. (You can locate a ser- manufacturer. vice center in your area online at www.karcher- residential.com) CLEANING TIPS Deck Cleaning House Siding (with or without detergent).

  • Page 13: Optional Accessories

    Cement Patios, Brick and Stone Patio & Lawn Furniture (with or without detergent). Pre-rinse cleaning (with or without detergent). Pre-rinse furniture surface with fresh water. If using detergent or and surrounding area with fresh water. If using Degreaser, apply to surface at low pressure. detergent, apply to surface at low pressure.

  • Page 14: Troubleshooting

    TROUBLESHOOTING CAUTION Remove the spark plug cable to prevent ac- cidental ignition of the engine before making any repair. Symptom POSSIBLE CAUSE SOLUTION Engine will not start No gasoline Fill gas tank Choke is not in the correct position. Slide choke lever out to closed position. Water pressure built up in the ma- Squeeze the trigger to release the pressure.
  • Page 15 Do not run pump for more than 5 minutes without spraying. Oil Drip. Oil seals are damaged or worn. Call Customer Support If you encounter any additional difficulties not listed, please call for help or visit our website. USA / Canada: 1-800-537-4129 www.karcher-help.com Mexico: 01-800-024-13-13 www.karcher.com.mx English...
