120/240 Volt AC, 20 Amp Locking
Receptacle
Use a NEMA L14-20 plug with this receptacle. Connect a
4-wire cord set rated for 250 Volts at 20 Amps (or greater)
(Figure 9). You can use the same 4-wire cord if you plan to
run a 120 Volt load.

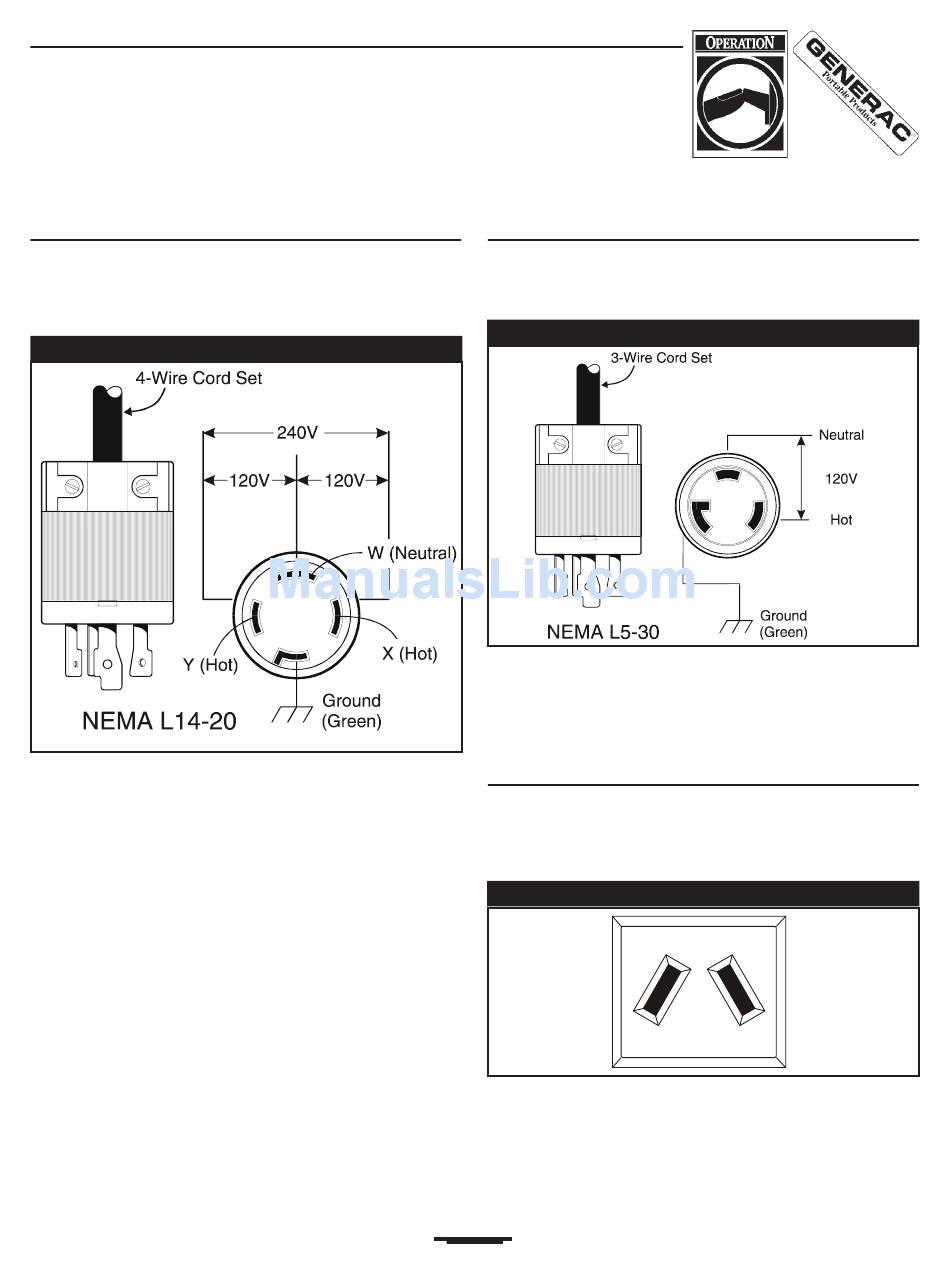

Figure 9 — 120/240 Volt AC, 20 Amp Receptacle
This receptacle powers 120/240 Volt AC, 60 Hz, single
phase loads requiring up to 2,400 watts of power at
20 Amps for 120 Volts; 4,000 watts of power (4.0 kW) at
16.7 Amps for 240 Volts. The outlet is protected by a
20 Amp push-to-reset circuit breaker.
Generac Portable Products 4,000XL Generator
120 Volt AC, 30 Amp Locking
Receptacle
Use a NEMA L5-30 plug with this receptacle. Connect a
3-wire cord set rated for 125 Volts AC at 30 Amps to the
plug (Figure 10).
Figure 10 — 120 Volt AC, 30 Amp Locking Receptacle
Use this receptacle to operate 120 Volt AC, 60 Hz, single
phase loads requiring up to 3,600 watts (3.6 kW) of power
at 30 Amps. The outlet is protected by a 30 Amp
push-to-reset circuit breaker.

12 Volt DC, 10 Amp Receptacle

This connector (identified by the legend "12-VOLT D.C.")
supplies 12 Volts DC at 10 Amps through battery charging
cables for recharging 12 Volt batteries (Figure 11). See
"Charging a Battery" on page 7.
Figure 11 — 12 Volt DC, 10 Amp Receptacle
