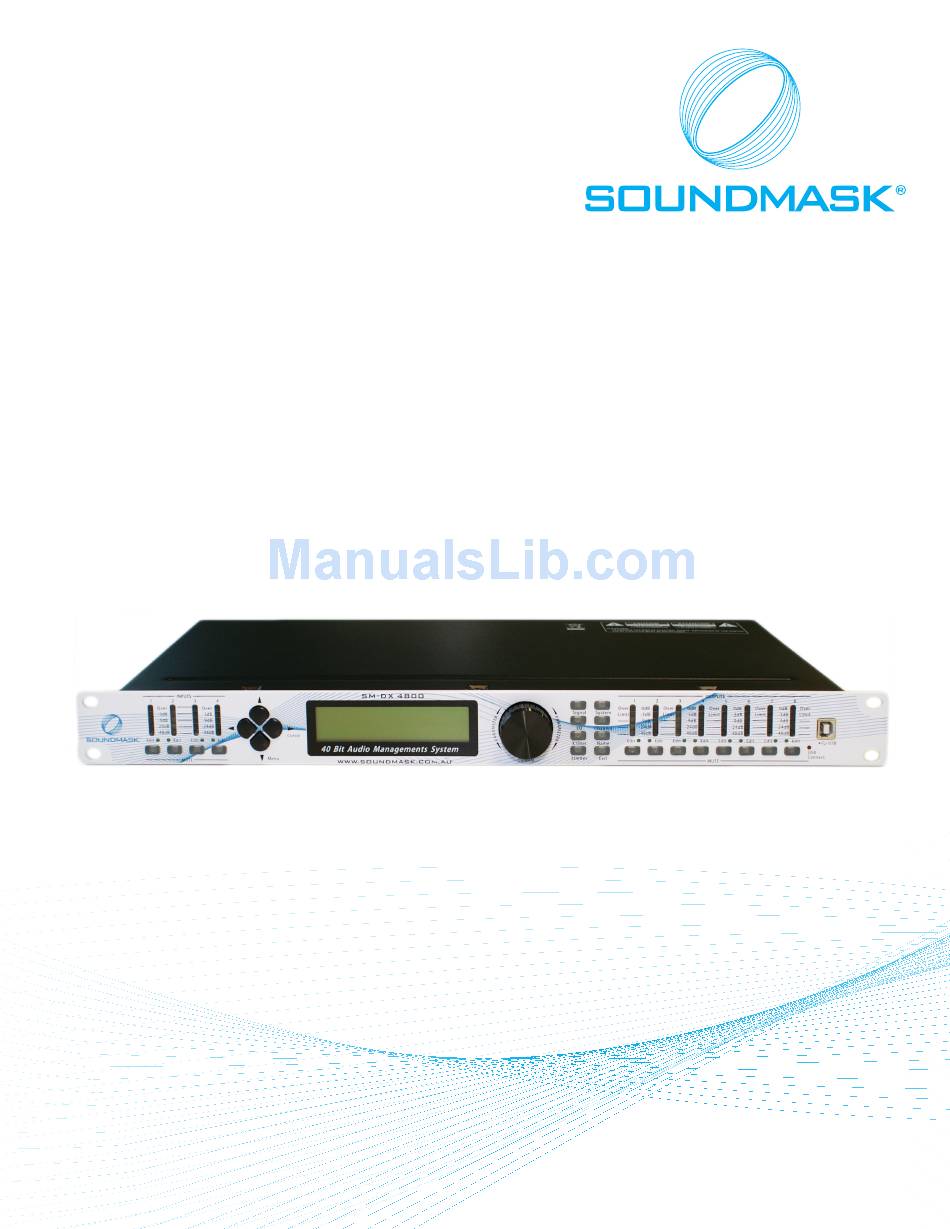

- Page 1 DIGITAL DISTRIBUTOR SM-DX-4800 OPERATING MANUAL...
-
Page 2: Important Safety Instructions
15. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOIS- TURE. 16. APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. page 2 | © Copyright 2012 Soundmask Australia Pty Ltd. All Rights Reserved... - Page 3 The SM-DX-4800 can be controlled or configured in real time on the front panel or with the intuitive PC GUI accessed via the USB or RS485. Software upgrade for CPU and DSP via PC keeps the device current with newly developed algo- rithms and functions once available.
-
Page 4: Front Panel Functions
6. LCD – 4 line x 32 characters displays all the necessary information to control the unit. 7. Cursor control – 4 key for Cursor control. page 4 | © Copyright 2012 Soundmask Australia Pty Ltd. All Rights Reserved... -
Page 5: Rear Panel Functions
• The screen shows the current program number and program name assigned to the unit. If the 2 fields are empty, it means that no program is assigned, the last data before the previous power down is recalled instead. • Now the SM-DX-4800 is ready to operate. www.soundmask.com.au | page 5... -
Page 6: Operating The Device
To cancel the linking, simply deselect the desired channel if the Mute key is still pressed. Input menus Each of the SM-DX-4800’s input channels has a separate Mute key. Hold down the Mute key for 2 seconds then the Channel menu can be used and the green LEDs above the Mute button are lit. - Page 7 (Off ). If more than one input sources are enabled, they will be added together as the source for the current output channel. OUT 1 : MENU:Source InA:ON InB:ON InC:OFF InD:OFF Name – Channel Name • Name – Channel name. It is 6 characters in length. OUT 1:XXXXXX MENU:Name NAME:XXXXXX www.soundmask.com.au | page 7...
-
Page 8: Program Recall
Signal Generate Load a Xover Program Recall – The SM-DX-4800 has a built in non-volatile memory that can store up to 30 different program setups. A program can be recalled using this menu. Load a Xover *User Mode Factory Mode ... - Page 9 Pink Noise – Pink Noise Generate mode Tones – Tones mode, can select any frequency from 20Hz to 20kHz. • NAME – Program Name, allows a maximum length of 15 characters. SYSTEM Recall P:1 XXXXXXXXXXXX SYSTEM Store SYSTEM Store NAM:XXXXXXXXXXXX www.soundmask.com.au | page 9...
-
Page 10: Quick Reference
Security - Security Lock The SM-DX-4800 enables the user to secure the unit and prevent undesired changes in the setup. In order to lock/ unlock the unit the user must enter the correct password. • PASSWORD – Under the System Manu The password of the DX is 6 characters in length. -
Page 11: Pc Control Software
PC Control Software The SM-DX-4800 series is shipped with special PC Control Software which gives the user an option to control the unit from a remote PC via the USB or RS485 serial communication link. The software makes it much easier to control and monitor the device allowing the user to get the whole picture on one screen. - Page 12 No liability or otherwise is assumed for the accuracy of this document. No war- ranty is given or implied as to the accuracy of any part of the document. page 12 | © Copyright 2012 Soundmask Australia Pty Ltd. All Rights Reserved...
