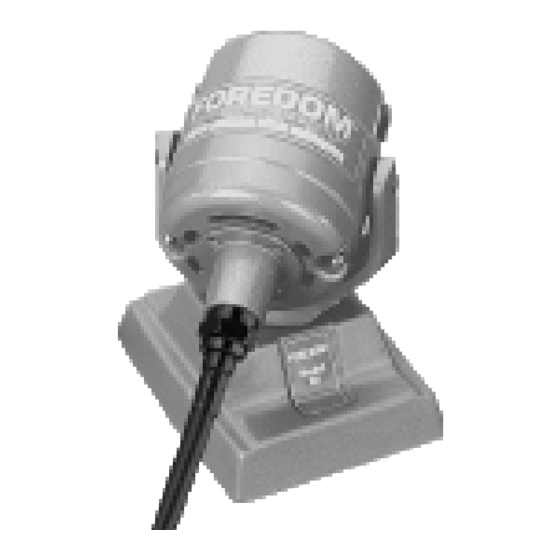

Owner's Manual
Assembly, Operation and
Service Manual for
Series H
Ball Bearing Power Tools
and Handpieces
For Your Own Safety:
• Read Owner's Manual before operating
your Foredom Power Tool.
• Always wear eye protection while using
power tools.
• Only use accessories rated for use at the
maximum speed (20,000 RPM) of these tools.
w w w. f o r e d o m . c o m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H Series and is the answer not in the manual?

Questions and answers

Related Manuals for FOREDOM H Series

Summary of Contents for FOREDOM H Series

  • Page 1 Ball Bearing Power Tools and Handpieces For Your Own Safety: • Read Owner's Manual before operating your Foredom Power Tool. • Always wear eye protection while using power tools. • Only use accessories rated for use at the maximum speed (20,000 RPM) of these tools.

  • Page 2: Table Of Contents

    • Always wear proper eye and face protection. Safety glasses or face shields should be worn whenever you operate a Foredom or any power tool to prevent serious eye or face injuries. • Always tie up long hair. Loose long hair poses a serious hazard, and must be tucked under a cap or hair net to prevent it from becoming entangled in rotating parts.
  • Page 3 • Always find out the manufacturer's speed rating before using accessories other than Foredom accessories. (Safety requirements for the use, care and protection of abrasive wheels are contained in ANSI Standards B7.1-1978 which are available from ANSI, 1430 Broadway, New York, New York 10018.)
  • Page 4 You have purchased a fine quality power tool which can be used for a wide variety of tasks difficult to do with any other kind of power tool. Foredom power tools are manufactured to high standards of precision and, with proper use and regular maintenance, will give you years of trouble-free performance.

  • Page 5: Specifications

    Specifications Series H Ball Bearing Universal Motor: 115 Volts 3.0 Amps 50/60Hz Operable Speed Range 0-20,000 RPM 230 Volts 1.5 Amps 50/60Hz Operable Speed Range 0-20,000 RPM SCH Control: Variable speed, foot operated electronic control in metal housing for use only with Series H Motors.

  • Page 6: Assembly Instructions

    Installing and Attaching Accessories to Handpieces Directions for attaching accessories to handpieces vary according to the type of handpiece being used. Locate the model number of your Foredom handpiece from the photos on page 4. Attach the accessory according to the following specific directions.
  • Page 7 Failure to do so could result in personal injury or cause accessory failure. The Foredom Accessory Catalog contains information on hundreds of accessories rated at 20,000 RPM or higher. Also visit www.foredom.com to view the complete selection of rotary accessories Operation...

  • Page 8: Motor

    4. Install new flexible shaft assembly by inserting it fully onto the motor shaft and tighten socket set screw. 5. Apply a light film of Foredom grease (10006) to new flexible shaft or the one you have cleaned. 6. Make sure stop washer (C) is inserted into casing nut. Connect flexible sheath assembly (A) to motor hub and tighten.

  • Page 9: And Sheath

    Remove inner shaft and soak in a sol- vent if necessary, to remove all dirt and grease. Use Foredom flex shaft grease (p/n 10006) or high quality white lubricating grease according to directions below.

  • Page 10: Recommended Spare Parts & Supplies

    Estimates will be made upon request. Owner’s Registration Card Send your Owner's Registration Card to Foredom right away. We will keep your card in our Registration and Serial Number File. For More Information For more information on Foredom machines, handpieces or accessories, contact your local dealer.

  • Page 11: Limited Warranty

    LIMITED WARRANTY Foredom warrants the Series H, HB and HM Motors to be free of defects in material or workmanship for a period of 1 year after purchase. During the warranty period, the defective product will be repaired or replaced without charge or, at our option, the purchase price will be refunded.
  • Page 12 FOREDOM ® The Foredom Electric Company Bethel, CT 06801 www.foredom.com Form 1236 n Rev 4/04 Printed in U.S.A.
