Chassis Rear View

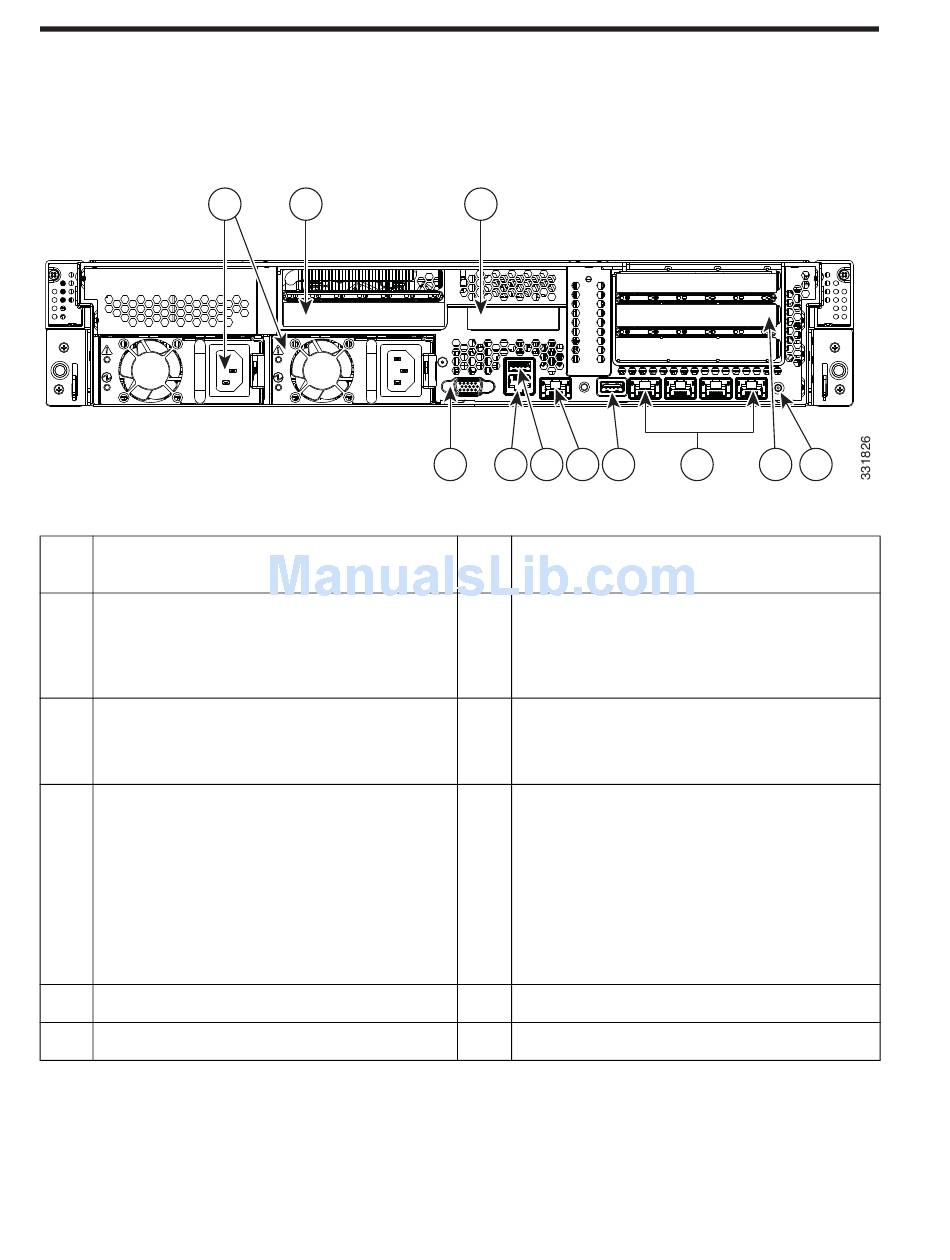

Figure 3 shows the external features of the rear panel.
Figure 3 Chassis Rear View
1
PSU1
1 Power supplies (up to two)
2 Standard-profile PCIe slot on riser:
PCIe 5—full-height, 3/4-length, x16 lane
width, x24 connector, GPU ready, supports
Cisco CNIC a and NCSI
3 Low-profile PCIe slot on riser:
PCIe 4—half-height, 3/4-length, x8 lane
width, x16 connector, no NCSI
4 VGA video connector
5 Serial connector (RJ-45)
6 USB 2.0 port
Notes . . .
a. CNIC = Cisco Network Interface Card.
b. NCSI = Network Communications Services Interface protocol.
Cisco UCS C240 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)
2
PCIe 5
PSU2
b
2
support
3
PCIe 4
4 5 6 7 8
7 One RJ-45 10/100/1000 Ethernet dedicated
management port
8 USB 2.0 port
9 Quad 1-Gb Ethernet ports
(LAN1, LAN2, LAN3, and LAN4)
10 Standard-profile PCIe slots on riser (three):
PCIe 1—full-height, half-length, x8 lane
width, x8 connector
PCIe 2—full-height, half-length, x8 lane
width, x24 connector, supports Cisco CNIC
and NCSI 2
PCIe 3—full-height, half-length, x8 lane
width, x16 connector
11 Rear Identification button/LED
-
DETAILED VIEWS
PCIe 1
PCIe 2
PCIe 3
9 10 11
