DVDO AVLab TPG - 4K Test Pattern Generator

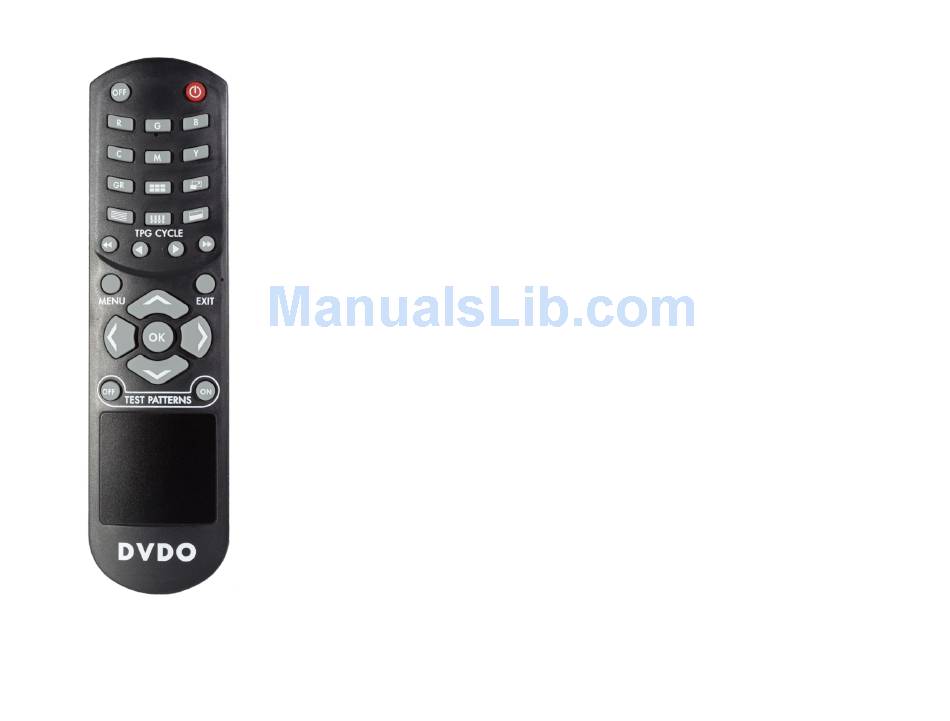

The AVLab TPG remote is specifically designed to allow fast access
to patterns. Choose a pattern category using the top bank of
buttons, then use the cycle buttons < and > to choose different
patterns within that category. << and >> changes between
categories.
i.e. to get to Magenta 100 IRE, press the M button and then > 3
times to get to 100. For a 100 IRE color bar, press the color bar
button and then > to get to the one you want.
Power and Standby/Off buttons are discrete functions
R, G, B, C, M, Y, Gr: Individual color patterns.
Color Bars, Scaling, Visual patterns: Directly switches to
pattern category
<< >>: Changes category
< >: Changes pattern within category
ARC: Alternately enables and disables Audio Return Channel.
MENU: Brings up On-screen display (OSD) menu.
EXIT: Exits OSD menu and other special functions.
Navigation buttons: Used for OSD menu selections.
TPG on and off : Turns internal test pattern generator on and off
