Airsight XX51A User Manual

Indor wirels/wired p2 ip network camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Indoor Wireless/Wired
P2P IP Network Camera
Models XX51A
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XX51A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Airsight XX51A

Summary of Contents for Airsight XX51A

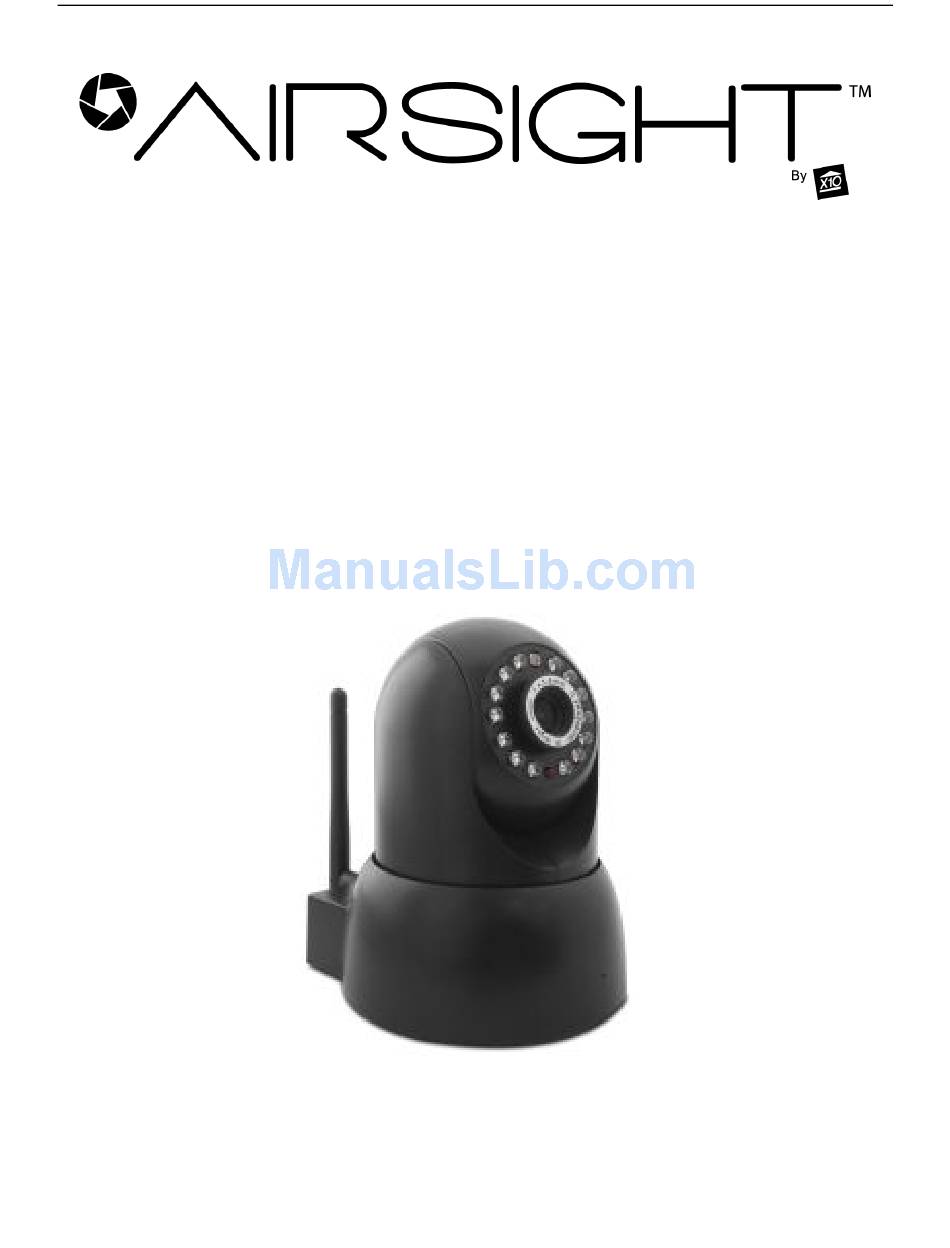

  • Page 1 Indoor Wireless/Wired P2P IP Network Camera Models XX51A User Manual...

  • Page 2: Table Of Contents

    1. INTRODUCTION................................3 1.1 F .......................................3 EATURES 1.2 P ......................................3 ACKING 1.3 P ....................................4 RODUCT IEWS 1.4 PC S .................................. 6 YSTEM EQUIREMENTS 1.5 H ..................................6 ARDWARE NSTALLATION 1.6 S ..................................6 OFTWARE NSTALLATION 2. SOFTWARE OPERATION............................9 2.1 IP C ....................................

  • Page 3: Introduction

    1. INTRODUCTION This is an integrated wireless IP Camera solution. It combines a high quality digital Video Camera with network connectivity and a powerful web server to bring clear pictures to your Desktop from anywhere on your local network or over the Internet. The main function of the camera is to transmit remote video over IP network.

  • Page 4: Product Views

    1.3 Product Views 1.3.1 Front View Figure 1.1 1 IR detector: For light sensitive photocell 2 Infrared LED: 10 LEDs 3 LENS: CMOS sensor with fixed focus lens. (Default is 6mm, 3.6mm optional) 4 Network Indicator LED: If there is network activity, the LED will blink 5 Microphone: Built-in microphone 6 Speaker: Built-in speaker 7 Wireless Antenna: WI-FI Antenna...

  • Page 5: Rear Panel

    1.3.2 Rear Panel Figure 1.2 LAN: RJ-45/10-100 base T Power: DC 5V/2A power supply Network Indicator: The green LED is on when connected to the network, the yellow LED blinks when data is transferred. Audio Output: The jack is used to connect an external speaker I/O PINS: 1: Output A 2: Output B 3: Alarm input 4: Input (GND) Note: TF port not available in this model 1.3.3 Bottom View...

  • Page 6: Pc System Requirements

    RESET BUTTON: Press and hold the RESET BUTTON for 30 Seconds to reset the camera back to the factory default settings. (Please keep the power on when doing a RESET) Note QR code label for easy P2P setup. (See Quick Setup Guide) 1.4 PC System Requirements System configuration requirements: CPU: 2.06 GHZ or above.
  • Page 7 installation. (Figure 1.6, 1.7, 1.8). 2. ActiveX: Double click “Appinstall.exe”—“Next”—“Install”—“Finish”. Figure 1.5 Figure 1.6 Figure 1.7...
  • Page 8 Figure 1.8 After this is done, the icon “IP Camera Tool” will be displayed on your desktop . CAUTION: Before installing and using the product, please read the following precautions carefully and make sure they are fully understood. Use only the power adaptor included with the product. Use of an unauthorized power adapter may cause damage to your IP Camera.

  • Page 9: Software Operation

    2. SOFTWARE OPERATION 2.1 IP Camera Tool When the Device has been mounted properly, you can double-click the Icon “IP Camera Tool” and a dialog box shown in Figure 1.9 will pop up . Figure 1.9 Note: The software searches IP Servers automatically over your LAN. There are 3 cases: 1.

  • Page 10: Basic Properties

    Figure 2.0 2.1.1 .1 Basic Properties There is some device information in the Basic Properties, such as Device ID, System Firmware Version, and Web UI Version.（Figure 2.1). The Device ID is the camera’s MAC ID, which should be the same as shown on the sticker on the bottom of the camera.
  • Page 11 Figure 2.2 Obtain IP from DHCP server: If clicked, the device will obtain IP from DHCP server. In other words, the camera will have a dynamic IP. (Make sure the Router which the camera connects to has DHCP function and DHCP is enabled).

  • Page 12: Upgrade Firmware

    2.1.1.3 Upgrade Firmware Enter the correct User and Password to upgrade system Firmware and Web UI. Please upgrade system firmware first and then upgrade Web UI or it may damage the camera.（Figure 2.4). Figure 2.4 Please download the firmware package for the correct type of your camera before you upgrade. Follow the upgrade document carefully to upgrade.
  • Page 13 2. To access the camera by IE Browser directly, just type the camera’s IP address, for example, if the camera’s IP address is 192.168.1.123: Figure 2.5 Figure 2.6 The default user name is admin, no password (leave blank). Input the correct user name and password, the Sign In interface will pop-up. There are three models to login (figure 2.7).

  • Page 14: For Ie Browser

    (3) “Sign in mobile phone”: available in Mobile phone. Note: If you can not install the ActiveX on IE, pls download and install alone. 2.3 For IE Browser Choose ActiveX Mode (For IE Browser), and sign in Figure 2.8 Figure 2.9 The first time you login to the camera, you might get an ActiveX prompt as in the picture above, please click the prompt and choose Run Add-on, refresh and login to the camera again, then will see live video, as below.
  • Page 15 Figure 3.0 Note: If there is still no live video after you run ActiveX, and a red cross shows in the center of the screen, or even just a black screen, please try to enable the ActiveX options of IE security settings. Please do the following steps: 1.

  • Page 16: For Safari, Firefox, Google Browser

    number. Don’t use port 80, use another port such as 128, 1008 etc. Figure 3.2 NOTE: Make sure that your firewall or anti-virus software doesn’t block the software or ActiveX. If you couldn’t see live video, please close your firewall or anti-virus software, and try again . 2.4 For Safari, Firefox, Google Browser Choose Server Push Mode (For Safari, Firefox, Google Browser), and sign in.

  • Page 17: For Mobile Phone

    2.5 For Mobile Phone Choose Sign in mobile phone, and sign in. Mobile phone doesn’t support ActiveX, so only some basic functions are available in this mode. It supports iPhone, Smart phone, 3G phone, etc. Normally, if the mobile phone supports network video, then it should work with your IP Camera.
  • Page 18 Figure 3.5 Channels: The IE software supports 9 channels. Click to get different windows. Click this one to view the main channel of the camera you login to. Click this one to view 4 Channels of cameras that are connected, from CH1 to CH4. Click this one to view 9 Channels of cameras that are connected, from CH1 to CH9.

  • Page 19: Osd Settings

    OSD Settings:   Figure 3.6 OSD: Means “On-Screen Display”, click “Audio video” > “OSD”, set display date and time on the video. Disabled: Clicking this one means clear the OSD. Color: Can set the OSD text color as black, yellow, red, white, blue etc. Add time stamp on record: if you click this, there will be time OSD on record video files.

  • Page 20: Top Menu

    Figure 3.8 Figure 3.9 TOP Menu Figure 4.0 Click to get live video. When you want to get back to live video from other menus, just click it. Only under live video, you can do the operation on the right side, such as play, stop, snapshot etc. Click to get into play mode, when you click the stop icon, the video will be stopped, then if you click the play icon, it will show the video again.

  • Page 21: For Operator

    2.8 For Operator When you login as Operator, you can enter the IP Camera for Operator. For operator, it not only supports all the functions for Visitor, but also supports these functions below: Figure 4.1 Audio Video Settings   Figure 4.2 Audio buffer: Click this icon, it will show five numbers, which means 1/2/3/4/5 seconds buffer of audio.
  • Page 22 Mode, Bright, Contrast Settings  Figure 4.3 Mode: This mode is optional, 50HZ/60HZ for the users who use 50HZ/60HZ frequency, outdoor for users who want to use the camera to monitor towards an outdoor environment. NOTE: The camera should be used in an indoor environment (unless protected from the elements). Bright: Set the parameters to adjust the image quality of the video.

  • Page 23: For Administrator

    Preset Settings Figure 4.5 Set Preset Position. It supports 15 preset positions. To control the camera’s rotation to a preset position, click Set Preset Position button it will pop-up a dialog frame (Figure 4.5), choose the number (1-15) you want to set it to. NOTE: if you set different positions with the same number, the camera will record the last position setting only.

  • Page 24: Settings As Administrator

    3. SETTINGS AS ADMINISTRATOR Administrator supports all the settings and operations of the camera. There are some special functions only for administrator as below: Figure 4.6 3.1 Multi-Device Settings  Multi-Device Settings This camera can support max. 9 device channels at the same time. 3.1.1 Set Multi-Device in LAN In the Multi-Device Settings page, you can see all devices searched in LAN.
  • Page 25 Figure 4.7 Click Live Video and then select to see four channels, or click to see nine channels. Figure 4.8...
  • Page 26 Figure 4.9 3.1.2 Set Multi-Device for WAN If you want to view cameras from the internet, you have to add these devices by DDNS domain name. Make sure all these cameras you want to add have DDNS set successfully. (See 3.7 DDNS Service Settings) Login to the first camera by DDNS domain name and port, this camera will be as the host camera.
  • Page 27 name, and without “http://”, it’s not the LAN IP address. If you have several cameras, you can use the same DDNS domain name, just set different port number for each different camera. Figure 5.1 Note: Add the other camera in the same way, Click submit to add all of them. Figure 5.2...

  • Page 28: Upgrade Device Firmware

    Click Live Video and then selec t to see four channels, or to see nine channels. In this case, you can see all the cameras from a remote position by internet, for example, if you are on a business trip, you can use the first camera’s (Host camera) DDNS to view all the devices via the internet. Figure 5.3 3.1.3 Upgrade Device Firmware If you want to upgrade the camera, please upgrade Device Firmware first, then upgrade Web UI.

  • Page 29: Network Settings

    3.1.4 Restore Factory Settings Click Restore Factory Settings, will pop-up a prompt, select OK, all the parameter will be returned to factory settings, and the device will reboot. Figure 5.5 3.1.5 Reboot Device Click Reboot the device, will pop-up a prompt, select OK, then the device will reboot Figure 5.6 3.2 Network Settings Click Network, will pop-up the prompt as below:...
  • Page 30  Figure 5.7 If you don’t know the Subnet Mask, Gateway, DNS Server. Please check the Local Area Connection Status of your computer; it contains all this information, steps as below: 1. Control PanelNetwork ConnectionsLocal Area Connections Support  Details 2.

  • Page 31: Wireless Lan Settings

    If you don’t know the DNS Server, you can set it the same as Gateway. If the router supports DHCP function, you can choose “Obtain IP from DHCP Server” to get dynamic IP. Figure 6.0 Http Port: In most cases, you can leave this value as-is. However, if your Internet Service Provider blocks this port, you may change it to another port number such as 8060.
  • Page 32 Figure 6.2 Figure 6.3 Figure 6.4...

  • Page 33: Adsl Settings

    Figure 6.5 3.5 ADSL Settings When connected to the Internet through ADSL directly, you can enter the ADSL username And password obtained from ISP.  Figure 6.6 Figure 6.7 3.6 UPnP Settings Click UPnP Settings to choose Using UPnP to Map Port: ...

  • Page 34: Ddns Service Settings

    Figure 6.8 Select it and click Submit, then the camera will support UPnP port forwarding automatically. It’s helpful for using DDNS. If your router supports UPnP, then you won’t need do port forwarding in the router . Figure 6.9 NOTE: Here UPnP is only for port forwarding. It relates to the security settings of your router, make sure the UPnP function of your router is ON.
  • Page 35 Third Party DDNS If you use third party DDNS, please choose the server you use, such as “3322.org” or “dyndns.org” as below: Figure 7.2 Figure 7.3 You have to register an account first, enter the user, password, and host. NOTE: Only one DDNS can be chosen, for example, if you use the manufacturer’s DDNS, the third party one won’t work, if you use the third party DDNS, the manufacturer’s one won’t work.
  • Page 36 etc. (It’s best to use high numbers, like 8091 for example). Click “OK”, the camera will reboot, wait about 30 seconds . Figure 7.4 Make sure the “Subnet Mask”, “Gateway”, “DNS Server” is the same as your router. Set Port Forwarding in the router.
  • Page 37 NOTE: The port and IP address should be the same as the camera. BELKIN: 1. Login to the router. 2. Choose “Firewall”, select “Virtual Servers” 3. Input the port (don’t use 80) and IP address, then click save. NOTE: The port and IP address should be the same as the camera. Figure 7.6 DLINK: 1.

  • Page 38: P2P Settings

    Figure 7.7 After all these 4 steps are done, you can use DDNS, check the DDNS status from the camera as below, and get the link of DDNS for internet viewing. Step: “Login”>”System”>”Device Info” Figure 7.8 Figure 7.9 3.8 P2P settings Check P2P information here, using the GUID, you can view the camera via iPhone, or Android phone at any time, from anywhere, when connected to the network.

  • Page 39: System Settings

    3.9 System Settings  Figure 8.0 3.9.1 Device Info You can find the information about Device ID, Firmware Version, Embedded Web UI Version, Alias, Alarm Status, DDNS Status, UPnP Status and MSN status. Figure 8.1 3.10 Alias Settings Default device name is anonymous. You set any new name for your camera here, then click Submit .

  • Page 40: Date &Time Settings

    Figure 8.2 3.11 Date &Time Settings Set the date and time for your camera. Choose the Clock Time zone of your country. You can choose Sync with NTP Server (Figure 8.3) or Sync with PC Time (Figure 8.4). Figure 8.3 Figure 8.4 3.12 Users Settings Eight accounts are acceptable for this system.

  • Page 41: Pan, Tilt, (Ptz) Settings (Note, There Is No Zoom Feature On This Model)

    Figure 8.5 3.13 Pan, Tilt, (PTZ) Settings (note, there is no Zoom feature on this model) Figure 8.6 1. Go center on boot: The camera rotates to the center automatically when it starts. 2. PT speed: Set Pan/Tilt speed. 3. Upward patrol speed: Set the speed of cruising upward. 4.

  • Page 42: Backup & Restore

    Figure 8.7 Set the pilot lamp mode, to one of the following three options: (1) Non-connected network out: Blinks while connected to the internet and turn off when disconnected. (2) Non-connected network with more slow-frequency flicker: Blinks while connect to the internet and more slower when disconnected.

  • Page 43: Other Settings

    NOTE: Set the port forwarding successfully before setting MSN (Refer to port forwarding in DDNS settings). Then go to the MSN settings page, fill in the correct user name and password, add the MSN buddy, max. up to 10 friends, after submitting, the user(s) will be shown in your MSN friend list. Click System—Device Info to check the MSN status.

  • Page 44: Mail Service Settings

    3.17 Mail Service Settings Set Mail Service Settings to enable the camera to send e-mail alerts when motion is detected. Figure 9.1 Sender: Make sure the sender mailbox server provider supports SMTP, and the mailbox should not enable SSL or TSL encryption. Receiver: Here you can set four receivers.

  • Page 45: Ftp Service Settings

    If it shows the following errors when you click Test. Please check that the information you filled in is correct and try again. 1) Cannot connect to the server. 2) Network Error. Please try later. 3) Server Error. 4) Incorrect user or password. 5) The sender is denied by the server.
  • Page 46 Figure 9.4 FTP Server: If your FTP server is set up in LAN. You can set as Figure 9.3. If you have an FTP server that can be accessed from the Internet, you can set as Figure 9.4. FTP Port: Usually the port is 21. FTP Upload Folder: Make sure that the folder you plan to store images in exists.

  • Page 47: Alarm Service Settings

    7) Error in PORT mode. PASV mode should be selected if the device is behind a NAT. 8) Cannot upload file. Please be sure your account is authorized. Please check if parameters you filled in are correct. The format of image is like 000DC5D008FA (IPCAM) _0_20101115152525_25.jpg Please check if your FTP server supports this format of file name.

  • Page 48: Motion Detect Sensitivity

    Figure 9.8 3.19.2 Motion Detect Sensitivity You can choose level 1-10; level 10 means the most sensitive, 1 means the least sensitive. Figure 9.9 3.19.3 Alarm Input Armed / IO Linkage on Alarm If you want to connect external alarm devices, when it’s an alarm input device, choose Alarm Input Armed to enable it, when it’s an output device, choose IO Linkage on Alarm to enable it.
  • Page 49 Figure 10.0 There are two options for Trigger Level. (Figure 10.1). High: When the external alarm device is close, then the alarm is triggered. Low: When the external alarm device is switching off, then the alarm is triggered Figure 10.1 There are two options for Output Level.

  • Page 50: Send E-Mail On Alarm

    Figure 10.3 I/O PINS: 1 Output 2 Output 3 Alarm input 4 Input (GND) Input pins: The input pins can be used for 1-way external sensor input. For example, you may connect a Passive Infrared (PIR) Sensor to it for motion detection. When the external sensor is triggered, the IP camera can be programmed to send an e-mail with a picture or to control the internal relay output.
  • Page 51 Figure 10.5 Sound on Alarm When motion is detected, there will be a beep sound during the alarm, you can control this sound here. If Enabled, there will be sound once alarmed. If Canceled, there will be no sound once alarmed. Record on Alarm If you want the camera do recording for every alarm, choose Record on Alarm to enable it.

  • Page 52: Path Settings

    3.21 Path Settings  Figure 10.8 Here you can set record path and alarm record path for the camera Figure 10.9 Record Path: Here you can set the manually record path. Click then start manual recording, the record file will be saved to the specified path you set here. Alarm Record Path: Here you can set the alarm record path.

  • Page 53: Server Push Mode (For Safari, Firefox, And Google Browser)

    3.22 Server Push Mode (For Safari, FireFox, and Google Browser) Choose Server Push Mode, login the camera, you will see the main user interface as below: Figure 11.2 NOTE: Server Push Mode does not support ActiveX. Play, Stop, Record, Audio, Talk, Multi-device settings, Path settings functions are controlled by ActiveX, so if you use Safari, Firefox, Google chrome browser, it is not possible to use these options.

  • Page 54: Sign In Mobile Phone

    3.23 Sign in mobile phone If you are using a mobile phone, choose Sign in mobile phone, login to the camera, you will see the main user interface as below: Figure 11.3 NOTE: Mobile phone Mode doesn’t support ActiveX. In mobile phone mode, it only supports some simple functions, such as Resolution, Mode, Bright, Contrast, Pan/Tilt control, Snapshot, Reversal, Mirror, IO Linkage functions.

  • Page 55: Appendix

    4. APPENDIX 4.1 Frequently Asked Questions Note: For most problems you might encounter, please check Network connections first. Check the working status revealed by the indicators on the network server, hub, exchange and network card. If abnormal, check the network connections. 4.1.1 I have forgotten the administrator username and/or password.
  • Page 56 4.1.6 UPnP always fails UPnP only contains port forwarding in our recent software. Sometimes, it might fail to do port forwarding automatically because of firewall or anti-virus software. It also relates to your router’s security settings. So we recommend you do port forwarding manually. You can view your camera via the Internet successfully after you do port forwarding manually in your router.

  • Page 57: Problems With Network Bandwidth

    4.1.13 There’s no picture (Problems with ActiveX Controller) If using IE browser to connect the camera for the first time, and there is no image displayed, you might need to install ActiveX. You need to change some browser settings to enable ActiveX. (See: For IE Browser). 4.1.14 Problems with network bandwidth The image frame rate is subject to the following factors: 1.

  • Page 58: Specifications

    5. SPECIFICATIONS Model XX51A Image Sensor Sensor 1/4” Color CMOS Sensor Resolution 640 x 480 Pixels (300k Pixels) IR Lens F 2.0 XX34A: 6mm, XX41A: 3.6mm 90° Diagonally, 68° Horizontally Viewing Angle Minimum Illumination 0.5Lux @ F2.0 Video/Image Setting Video Compression...

  • Page 59: Obtaining Technical Support

    NOTE: Modifications to this product will void the user’s authority to operate this equipment. X10 AIRSIGHT 90 Day Limited Warranty X10.com, a division of Authinx Inc., warrants this product to be free from defective material and workmanship for a period of 120 days from the original date of purchase at retail.
