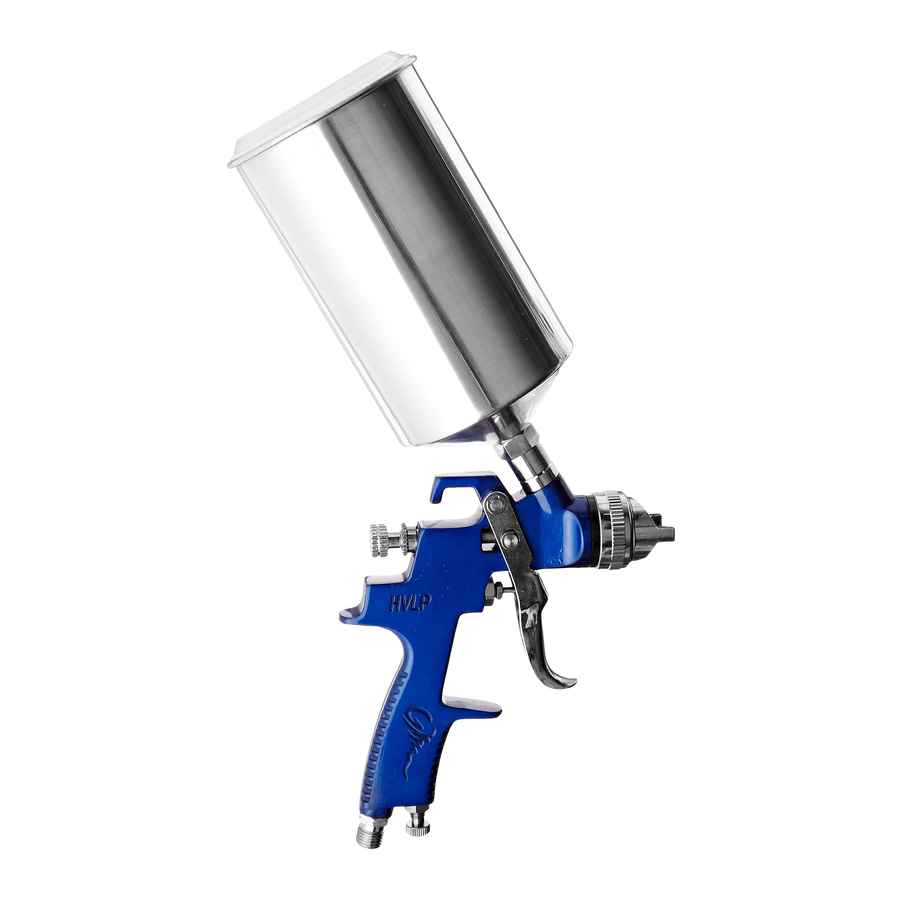

10PCS HVLP SPRAY GUN SET
INSTRUCTION MANUAL
Read this manual carefully and understand it completely.
Retain manual for future use.
Always follow safety precautions to prevent personal injury
and/or damage to equipment.
Illustrations and photos are intended for reference only. Actual
product may vary. Specifications subject to change without notice.
Important Safety Instructions
1. Always wear eye protection, gloves and respirator to protect
against harmful vapors produced when spraying.
2. Never use oxygen or any other combustible or bottled gas as a
propellant. Explosion and serious injury or death may result.
3. Many paints and solvents can be highly flammable. Use spray
gun only in well ventilated areas. Do not smoke or use near
open flame.
4. Always disconnect tool from air source when not in use and
during maintenance. For emergency stop and to prevent
unintended operation, a valve near the tool is recommended.
ATD-6900
Advertisement
Table of Contents
Related Manuals for ATD Tools ATD-6900
Summary of Contents for ATD Tools ATD-6900
-
Page 1: Instruction Manual
ATD-6900 10PCS HVLP SPRAY GUN SET INSTRUCTION MANUAL Read this manual carefully and understand it completely. Retain manual for future use. Always follow safety precautions to prevent personal injury and/or damage to equipment. Illustrations and photos are intended for reference only. Actual product may vary. -
Page 2: Power Source
5. Inspect the tool before each use to ensure there is no leakage or mis-aligned parts. Be sure trigger moves freely. 6. Never use homogenate hydrocarbon solvent as it can chemically react with the aluminum and zinc parts of this tool. 7. -
Page 3: Tool Preparation
TOOL PREPARATION 1. Check tool for worn or damaged parts. Repair or replace as necessary. 2. Check trigger to ensure it moves freely. 3. Connect tool to air supply. 4. Adjust air pressure based on paint viscosity and manufacturer’s recommendation. (Fig. 2) 5. - Page 4 stop moving the gun while you are still spraying, too much paint will build up and begin to run. Begin the horizontal movement of the gun BEFORE you begin spraying. Also, keep gun at a constant distance 6 – 12 inches from surface. (Fig. 4) Figure 3-INCORRECT Figure 4—CORRECT...
- Page 5 ADJUSTMENT 1. Fine-tune the gun to your desired working settings of spray pattern, fluid output and degree of paint atomization using the 3 controls illustrated in Figure 5. Figure 5: Maintenance To clean the gun, pour any leftover paint back into its container. Using thinner, clean out the paint cup and cap.
- Page 6 cloth moistened with thinner. If you remove the needle, remove the nozzle as well to protect the seat. NEVER DIG WITH A WIRE OR HARD OBJECT AT DRIED PAINT ON THE NEEDLE OR NOZZLE AS THIS CAN DAMAGE THE NEEDLE SEAT. Remove all such paint before it has a chance to dry.
