Install Transmitter Batteries - PARKZONE Radian RTF Instruction Manual

Spektrum ™ DX5e Radio System
Your ParkZone Radian is equipped with the revolutionary
Spektrum 2.4GHz DSM2 radio system. This radio
™
system allows you to fly with the confidence of knowing
you will be safe from interference.
For more details regarding the Spektrum DX5e radio
system, please see the dedicated DX5e manual
included with your Radian.

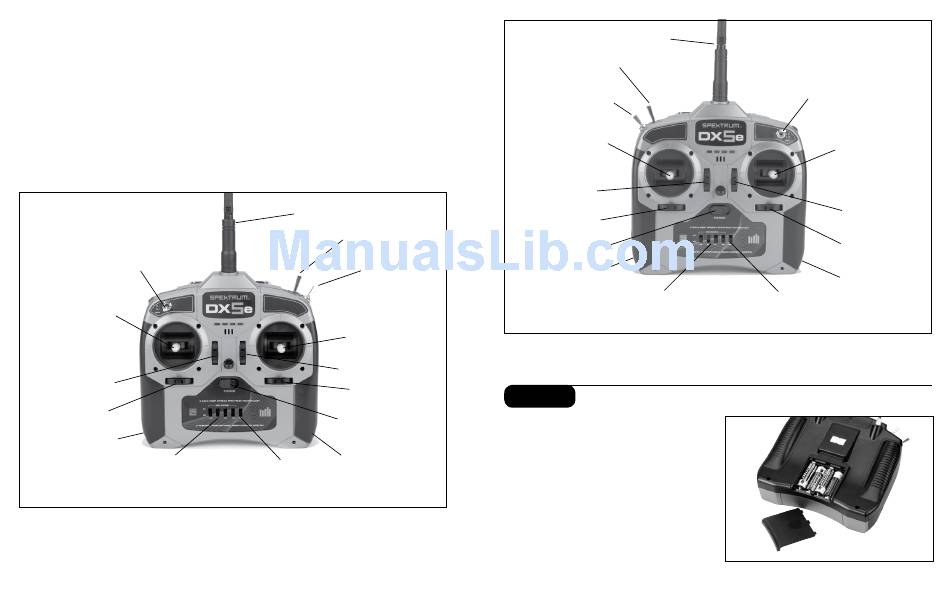

Transmitter Features: The following statement applies
to the receiver (in the USA).
HI/LO Rate Switch
Rudder and
Elevator Stick
Elevator Trim
RudderTrim
Trainer Port
Reversing Switches
7
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesirable
operation.
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user's authority to operate the equipment.
Antenna
Trainer Switch
Channel 5 Switch
Throttle and
Aileron Stick
Throttle Trim
Aileron Trim
On/Off Switch
Charge Jack
Mix Switch
Mode 1
Antenna
Trainer Switch
Channel 5 Switch
Throttle and
Rudder Stick
Throttle Trim
Rudder Trim
On/Off Switch
Trainer Port
Reversing Switches
Mode 2
Step 1

Install Transmitter Batteries

1. Install the 4 new AA batteries (supplied) into the
transmitter, observing proper polarity.
2. Turn the switch on and check for the glowing
green LED to ensure the batteries have been
installed correctly.
3 Replace the transmitter batteries when the low
battery alarm sounds and the LED lights begin
to flash.
HI/LO Rate Switch
Aileron and
Elevator Stick
Elevator Trim
Aileron Trim
Charge Jack
Mix Switch
