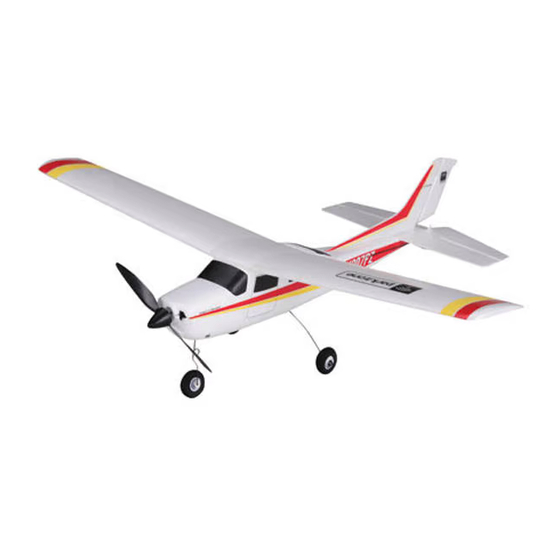

  5. Cessna 210 Centurion RTF
  6. Instruction manual

PARKZONE Cessna 210 Centurion RTF Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Cessna 210 Centurion RTF

Instruction Manual

Cessna and 210 Centurion are either registered trademarks or trademarks of Textron
Innovations Inc. in the USA and/or other countries, used under license.
Radio System: 3-channel proportional, 2.4GHz
Battery: 3.7V 70mAh Li-Po
Wingspan: 5 in (380mm)
Length: 2
⁄
in (325mm)
3
 6
Flying Weight: 0.6 oz (8 g)


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cessna 210 Centurion RTF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PARKZONE Cessna 210 Centurion RTF

Summary of Contents for PARKZONE Cessna 210 Centurion RTF

  • Page 1: Instruction Manual

    Cessna 210 Centurion RTF Instruction Manual Cessna and 210 Centurion are either registered trademarks or trademarks of Textron Innovations Inc. in the USA and/or other countries, used under license. Radio System: 3-channel proportional, 2.4GHz Battery: 3.7V 70mAh Li-Po Wingspan: 5 in (380mm) Length: 2 ⁄...
  • Page 2 30 minutes, you can be ready to fly. This means you can spend your time refining your flying, and not your building skills. Your ParkZone Cessna 20 Centurion will allow you to perform many aero- batic maneuvers, all in an area the size of half a basketball court! We at ParkZone are committed to giving you the most enjoyable flight experience possible.

  • Page 3: Binding Process

    Step 1 Transmitter Your ParkZone Cessna 20 Centurion airplane comes with a fully proportional (Mode 2) 3-channel radio system that includes digital trims. In this configuration, the left stick controls throttle, while the right stick controls elevator and rudder. . Insert the included 4 “AA” batteries that are included with the package into the transmitter.

  • Page 4: Charging The Aircraft Battery

    The charger sequence begins with charging at constant current, then later switches to constant voltage. To charge your ParkZone 3.7V 70mAh battery: . Slide the battery into the charge slot on the display stand. 2. Gently press the battery into the charging jack in the bottom of the slot.

  • Page 5: Motor Test

    Step 3 Motor Test . Make sure the throttle stick is down in the “Off” position. 2. Turn on the transmitter. 3. Plug the flight battery into the white lead in the fuselage. 4. Secure the flight battery by gently pressing the battery pack against the hook and loop material on the underside of the fuselage.

  • Page 6: Tail Control Test

    Step 4 Tail Control Test Warning: Keep everything clear of the propeller before starting the control test in the event that you accidentally turn on the motor. . Be certain that the throttle stick is in the “Off” position. 2. Move the right stick from side to side. The rudder should move per your transmitter input.
  • Page 7 Flying Choose a Large, Open Flying Site Always choose a wide-open space for flying your ParkZone Cessna 20 Centurion. It is ideal for you to fly in an indoor location with a floor area of 40’ x 40’ and and a minimum ceiling height of 20 feet.

  • Page 8: Range Test

    HobbyZone Zone 2 experience. First-time pilots of the ® ParkZone Cessna 20 Centurion should seek the assistance of an experienced RC flyer until the additional third channel, pitch control, has been competently mastered. Crash damage is not covered under the warranty.

  • Page 9: Runway Takeoff

    Step 9 Hand Launching the Cessna 210 Centurion . Make certain that the aircraft battery is fully charged. 2. Turn on the transmitter. 3. Plug in the aircraft battery 4. Test the motor and surface controls. 5. While holding the transmitter in one hand, push the throttle stick to full on (up) with thumb.

  • Page 10: Sharp Turns

    Step 11 Flying . After launching, your Cessna 20 Centurion will climb at full throttle. Keep the throttle full on until you have reached a safe altitude. At this same time, make sure that you are continuing to keep the airplane directed into the wind. 2.

  • Page 11: Elevator Trim

    Elevator Trim If your Cessna 20 Centurion wants to go up or down, use the digital trim buttons located at the left of the right control stick to correct (see drawing). The model should fly straight with the control stick at neutral and should have a steady, shallow climb at full throttle.
  • Page 12 Always seek the help of an experienced radio control pilot if you are not familiar with pitch control. Failure to do so, could result in a crash and significant damage to your airplane. Step 14 Landing Your Cessna Centurion When you begin to notice that your Cessna 20 Centurion no longer climbs well under full power (normally after approximately 0–5 minutes), the battery is getting low and it is time to land.

  • Page 13: Warranty Period

    Warranty Period: Exclusive Warranty- Horizon Hobby, Inc., (Horizon) warranties that the Products purchased (the “Product”) will be free from defects in materials and workmanship at the date of purchase by the Purchaser. Limited Warranty (a) This warranty is limited to the original Purchaser (“Purchaser”) and is not transferable.

  • Page 14: Safety Precautions

    If you as the Purchaser or user are not prepared to accept the liability associated with the use of this Product, you are advised to return this Product immediately in new and unused condition to the place of purchase. Law: These Terms are governed by Illinois law (without regard to conflict of law principals).
  • Page 15 Warranty Inspection and Repairs To receive warranty service, you must include your original sales receipt verifying the proof-of-purchase date. Provided warranty conditions have been met, your Product will be repaired or replaced free of charge. Repair or replacement decisions are at the sole discretion of Horizon Hobby. Non-Warranty Repairs Should your repair not be covered by warranty the repair will be completed and payment will be required without notification or...

  • Page 16: Replacement Parts

    Replacement Parts Make sure that you keep your Cessna 20 Centurion flying. Replacement parts are available at your local hobby shop or from Horizon Hobby (www.horizonhobby.com). Please try your local hobby shop first. By supporting them, they will be there when you need them! Item #: Description:...
  • Page 20 PKZ3015 ParkZone products are distributed exclusively by ® Horizon Hobby, Inc. 4105 Fieldstone Road Champaign, IL 61822 © 2007 Horizon Hobby, Inc. www.parkzone.com 10391...
