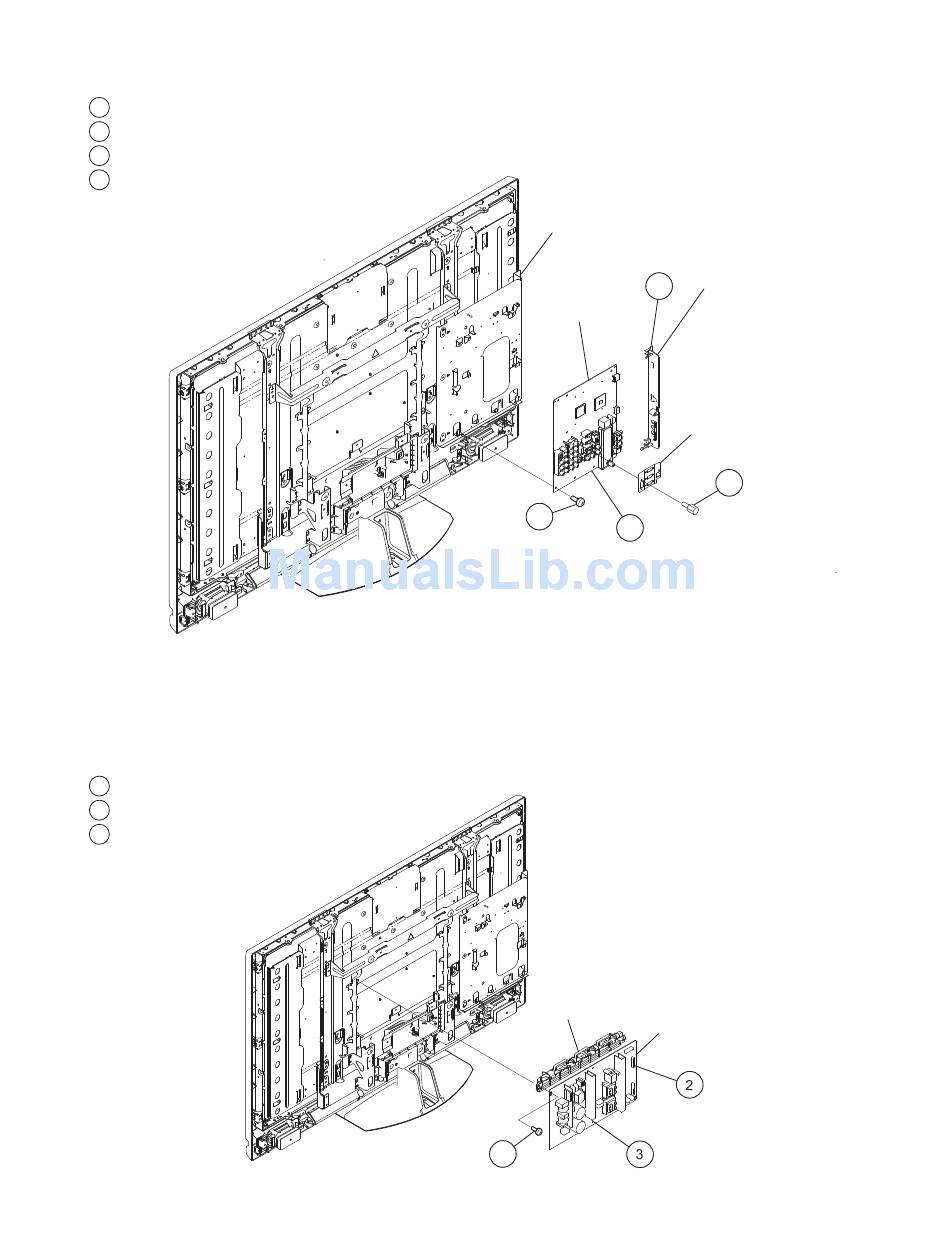

1-3. SIDE JACK BRACKET, BU SHIELD, BU BOARD REMOVAL

1
Release hook and slide out Side Jack Bracket from BU Board
2
Remove 2 HEX screws
3
Disconnect 6 connectors
4
Remove 9 screws

1-4. G2D BOARD (POWER UNIT) REMOVAL

1
Remove 6 screws
2
Disconnect 4 connectors
3
Release 1 Board Holder
KDL-42V4100
Main Bracket
1
BU Board
4
3
G2 Bracket
G2D Board
(Power Unit)
1
KDL-42V4100
Side Jack Bracket
BU Shield
2
14
