User's Manual
HDMI Switcher
HDS-21R/
HDS-41R
Cautions:
1. Digitalextender logo is our own trademark of RTcom USA.,Inc.
2. Any of the products may be changed without any notice in order to improve
the function of the product.
3. The design and specification of the product may be changed without any prior
Total Digital Connectivity Solutions
Advertisement
Table of Contents
Related Manuals for Digital Extender HDS-21R
Summary of Contents for Digital Extender HDS-21R

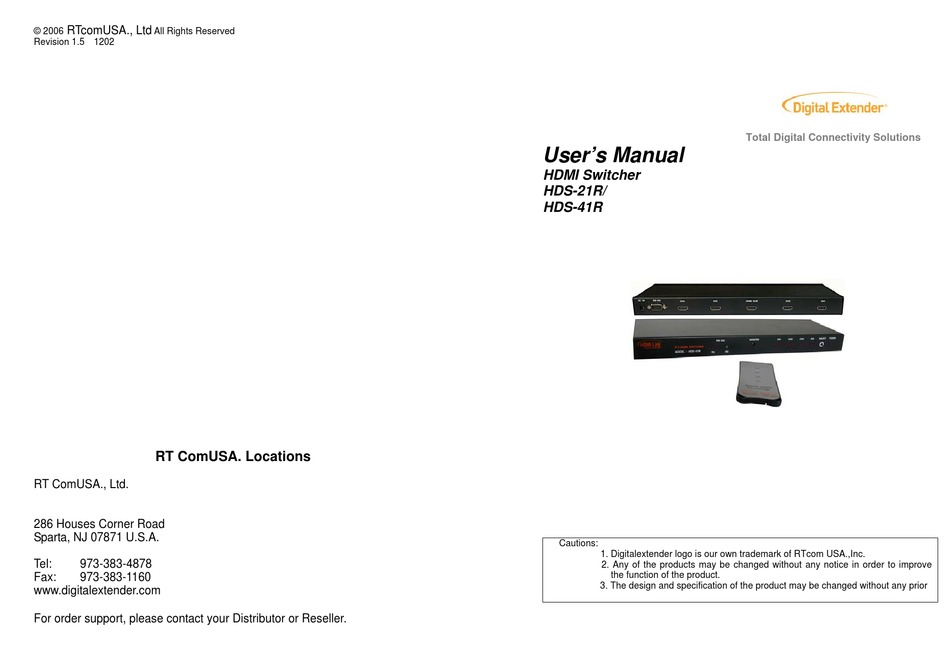

- Page 1 RTcomUSA., Ltd © 2006 All Rights Reserved Revision 1.5 1202 Total Digital Connectivity Solutions User’s Manual HDMI Switcher HDS-21R/ HDS-41R RT ComUSA. Locations RT ComUSA., Ltd. 286 Houses Corner Road Sparta, NJ 07871 U.S.A. Cautions: 1. Digitalextender logo is our own trademark of RTcom USA.,Inc.
-
Page 2: Troubleshooting
Unpacking Troubleshooting Each HDMI Switch package includes the following items; HDS-21R/41R HDMI LINK HDMI Switch Unit Problem Solution 5V Power Supply Adapter Switch will not operate Make sure the 5V power is plugged in the back of the unit. Check to see if the power LED light is on. - Page 3 Warranty Information CONTENTS 1 (One) Year Warranty RT Com. warrants this HDMI Link HDMI Switch to be free from defects in workmanship and materials, under normal use and service, for a period of one (1) year from the date of purchase from RT Com or its authorized resellers.
- Page 4 Supporting Graphic Resolution: UXGA (1600 X 1200 at up to 75Hz) sources to share one video display. 1080p (1920 X 1080 at up to 60Hz) Inputs: HDMI Female (HDS-21R/ 2port , HDS-41R/ 4port) Our unique switch allows easy switching between different digital video and Output: HDMI Female port digital audio sources with remote control unit or with a manual switching button Power supply: DC 5V, 1.2A Adapter included.
- Page 5 Environmental and Reliability Specifications Mechanical Specification 1 Operating Conditions Dimensions Temperature : 10℃~ 40℃ HDS-21R : 230x105x30 mm Humidity : 10% ~ 80%, non-condensing HDS-41R : 330x105x30 mm Altitude : maximum 3,000m 2 Transportation Conditions Temperature : -25℃~ 60℃ Humidity...
- Page 6 Remote Control Unit with Discreet Channel selections Our HDS-21R and HDS-41R use pin#2 and #3 and the assignments are as follows; Remote Control Units with discreet channel selection feature is included in all...
