User's Manual

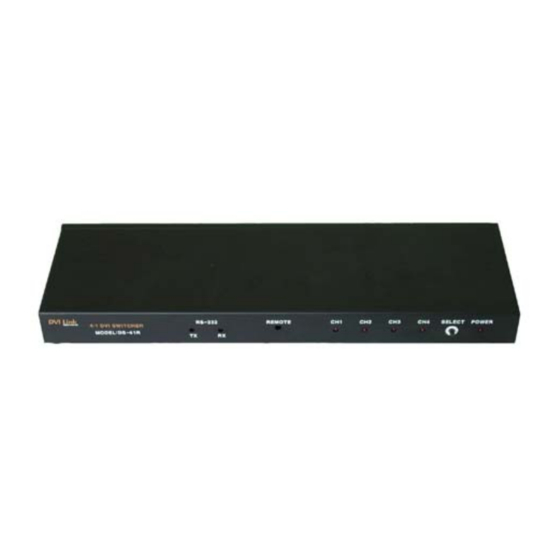

DVI Switcher
DS-41R(New)
Cautions:
1. Digitalextender
2. Any of the products may be changed without any notice in order to improve the function of the product.
3. The design and specification of the product may be changed without any prior notice.
Copyright 2006 RTcomUSA., Inc.
logo is our own trademark of RTcom USA., Inc.
®
Total Digital Connectivity Solutions
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-41R and is the answer not in the manual?

Questions and answers

Related Manuals for Digital Extender DS-41R

Summary of Contents for Digital Extender DS-41R

  • Page 1 User’s Manual Total Digital Connectivity Solutions DVI Switcher DS-41R(New) Cautions: 1. Digitalextender logo is our own trademark of RTcom USA., Inc. ® 2. Any of the products may be changed without any notice in order to improve the function of the product.

  • Page 2: Table Of Contents

    Table of Contents 1. BASIC UNDERSTANDINGS OF THE PRODUCT ................. 3 1-1 C ..........................3 AUTIONS FOR SAFETY 1-2 P ..........................3 ACKAGE NCLUDES 1-3 D ....................4 ESCRIPTION ENERAL PECIFICATION 1-4 E ................4 NVIRONMENTAL AND ELIABILITY PECIFICATIONS 2 MAIN FEATURES............................5 3 VIDEO CONNECTION..........................

  • Page 3: Basic Understandings Of The Product

    93/68/EEC (July 22, 1993)-Amending Directives 89/336/EEC (MC) and 73/23/EEC (Low Voltage Equipment Safety), and/or CPU Boards and Power Supplies used Cou ncil Directive 93/68/EEC withDS-21R,DS-41R, RTcomUSA, Inc., 286 Houses orner Rd. Sparta, NJ 09871 973-383-4878, declares under sole responsibility, that the product identifies with 93/66/EEC of e Council Directive Low Voltage Equipment Safety.

  • Page 4: Description, General Specification

    Weight DS-21R: 664g / DS-41R: 941g 1-4 Environmental and Reliability Specifications The DS-21R/DS-41R switcher recommended environmental operating limits are a temperature range from 10°C, non-condensing humidity levels from 10-80% and altitude ceiling of 3,000 meters (9,840 feet). Environmental limits for transportation are established as a temperature range of 25°C to 60°C, non-condensing humidity levels from 5-95%, and an altitude ceiling of 15,000...

  • Page 5: Main Features

    2 Main Features 1. High Quality Picture - No Signal Loss and Digital Noise Free Our switchers are built to deliver the highest quality picture preserving the native resolutions of the video sources without any signal loss. At the same time, the digital noises that may affect the picture quality will be eliminated.

  • Page 6: Video Connection

    RS232 Control Information Our DS-21R and DS-41R use pin#2 and #3 and the assignments are as follows; Control computer's RS232 pin# 2 is connected to our DVI switch's pin#3 Control computer's RS232 pin# 3 is connected to our DVI switch's pin#2 Baud rate: 9600, Data bits: 8, Stop Bits: 1, Parity: None, Flow control: None The control protocols are as follows;...

  • Page 7: Dvi Pin Description

    4 DVI Pin Description P n Symbol Functional Description 1. CH2-: TMDS Data Signal Channel 2 Negative 2. CH2+: TMDS Data Signal Channel 2 Positive 3. GND: TMDS Data Signal Channel 2/4 Shield 4. CH4-: TMDS Data Signal Channel 4 Negative 5.

  • Page 8: Troubleshooting

    5 Troubleshooting Problem Solution Switch will not operate Make sure the 5V power is plugged in the back of the unit. Check to see if the power LED light is on. No picture(or snow) 1. In case your video source is HDCP enabled, make sure your Or Poor picture video display (Monitor) must HDCP compliant.

  • Page 9: Warranty Information

    6 Warranty Information 1 (One) Year Warranty RTcomUSA warrants this DVI Switcher to be free from defects in workmanship and materials, under normal use and service, for a period of one (1) year from the date of purchase from RTcomUSA or its authorized resellers. If a product does not work as warranted during the applicable warranty period, RTcomUSA shall, at its option and expense, repair the defective product or part, deliver to customer an equivalent product or part to replace the defective item, or refund to customer the...
  • Page 10 © 2006 RTcomUSA All Rights Reserved Revision3 Memo Copyright 2006 RTcomUSA., Inc.
  • Page 11 Copyright 2006 RTcomUSA., Inc.
  • Page 12 © 2006 RTcomUSA All Rights Reserved Revision 2 RTcomUSA, Inc Locations RTcomUSA. Inc. 286 Houses Corner Road Sparta, NJ 07871 USA Tel: 1-973-383-4878 Fax: 1-973-383-1160 www.digitalextender.com For order support, please contact your Distributor or Reseller. For technical support, check with the Email: rtcomusa@earthlink.net info@digitalextender.com Copyright 2006 RTcomUSA., Inc.
