JBL 6 Owner's Manual

SPECIFICATIONS

SP5 SP6
Frequency Response Frequency Response
45 – 20kHz (–10dB) 38 – 20kHz (–10dB)
Recommended Maximum Recommended Maximum
Amplifier Power Amplifier Power
† †
60 watts 80 watts
Impedance Impedance
8 ohms nominal 8 ohms nominal
Sensitivity Sensitivity
87dB (2.83V/1m) 88dB (2.83V/1m)
Crossover Frequency Crossover Frequency
3,000Hz 2,000Hz
Woofer Woofer
5-1/4" titanium-laminate cone 6-1/2" titanium-laminate cone
w/rubber surround w/rubber surround
Tweeter Tweeter
1"titanium-laminate dome, 1"titanium-laminate dome,
w/Elliptical Oblate Spheroidal ™ w/Elliptical Oblate Spheroidal ™
waveguide and swivel mount waveguide and swivel mount
Plate Size (W x H) Plate Size (W x H)
7-1/2" x 10" (191mm x 254mm) 8-1/2" x 11" (216mm x 279mm)
Mounting Cutout Size (W x H) Mounting Cutout Size (W x H)
6-1/8" x 8-11/16" (156mm x 221mm) 7-1/8" x 9-11/16" (181mm x 246mm) 7-7/8" (200mm)
Mounting Depth Mounting Depth
3-3/4" (95mm) 3-7/8" (98mm)
All features and specifications are subject to
change without notice.
† The maximum recommended amplifier power
rating will ensure proper system headroom to
allow for occasional peaks. We do not recom-
mend sustained operation at these maximum
power levels.
* Trademark of Dolby Laboratories.
DTS is a registered trademark of
Digital Theater Systems, Inc.

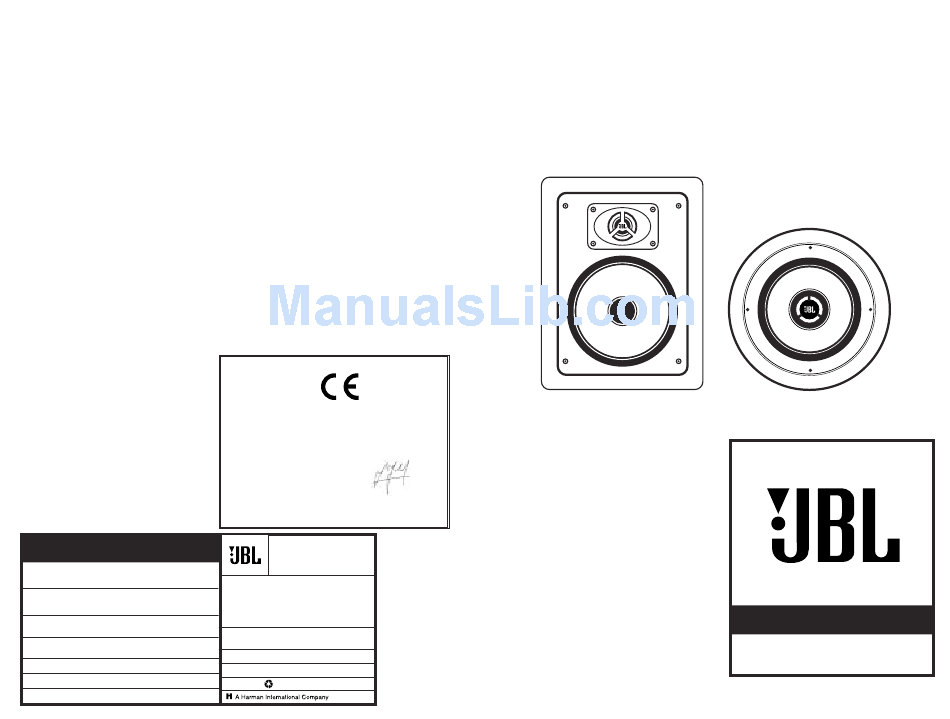

OWNER'S GUIDE
P R O D U C T L I N E :
SOUNDPOINT ™ SERIES
M O D E L S :
SP5, SP6, SP6C, SP8, SP8C
Combine the superior performance of traditional
DESIGN GOAL:
JBL loudspeakers with the convenience of in-wall installation.
Titanium-laminate-dome with EOS ™
TWEETER TYPE:
waveguide, and swivel mount
: Titanium-laminate cone with rubber surround
WOOFER TYPE
CROSSOVER NETWORK: Straight-Line Signal Path ™
2
PROFESSIONAL REFERENCE: Studio Monitor
SP6C SP8
Frequency Response Frequency Response
40 – 20kHz (–10dB) 30 – 20kHz (–10dB)
Recommended Maximum Recommended Maximum
Amplifier Power Amplifier Power
† †
80 watts 100 watts
Impedance Impedance
8 ohms nominal 8 ohms nominal
Sensitivity Sensitivity
88dB (2.83V/1m) 89dB (2.83V/1m)
Crossover Frequency Crossover Frequency
3,000Hz 2,000Hz
Woofer Woofer
6-1/2" titanium-laminate cone 8" titanium-laminate cone
w/rubber surround w/rubber surround
Tweeter Tweeter
1"titanium-laminate dome, 1"titanium-laminate dome,
w/Elliptical Oblate Spheroidal ™ w/Elliptical Oblate Spheroidal ™
waveguide and swivel mount waveguide and swivel mount
Plate Size (Diameter) Plate Size (W x H)
9-3/16" (233mm) 10-1/8" x 13-1/8" (257mm x 333mm) 10-7/8" (275mm)
Mounting Cutout Size (Dia.) Mounting Cutout Size (W x H)
8-7/8" x 11-13/16" (225mm x 300mm) 9-1/2" (240mm)
Mounting Depth Mounting Depth
4-1/4" (108mm) 4" (102mm)
Declaration of Conformity
We, Harman Consumer International
2, route de Tours
72500 Chateau-du-Loir
France
declare in own responsibility, that the products described in this
owner's manual are in compliance with technical standards:
EN 50081-1:1992
EN 50082-1:1997
Luc E. Godard
Harman Consumer International
Chateau-du-Loir, France 5/02
PRO SOUND
COMES HOME ™
JBL Consumer Products
250 Crossways Park Drive, Woodbury, NY 11797
8500 Balboa Boulevard, Northridge, CA 91329
800-336-4JBL (4525) (USA only)
www.jbl.com
For new-construction applications, be sure
NOTE:
to purchase the correct rough-in frame kit.
©2002 JBL, Incorporated
JBL is a registered trademark of JBL, Incorporated.
(SSP)
Part No. ai5235

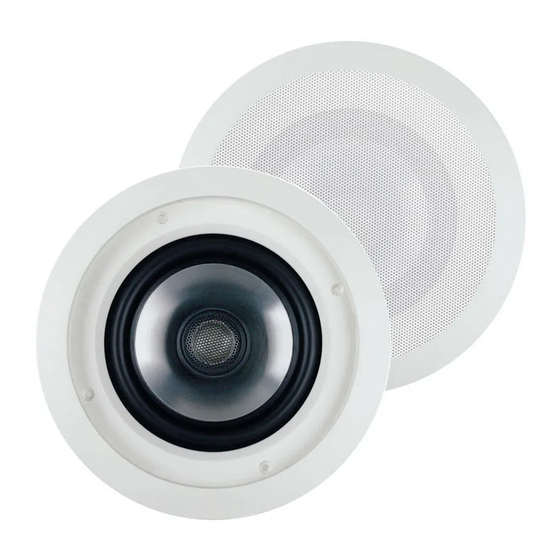

SP8C
Frequency Response
32 – 20kHz (–10dB)
Recommended Maximum
Amplifier Power
†
100 watts
Impedance
8 ohms nominal
Sensitivity
89dB (2.83V/1m)
Crossover Frequency
3,000Hz
Woofer
8" titanium-laminate cone
w/rubber surround
Tweeter
1"titanium-laminate dome,
w/Elliptical Oblate Spheroidal ™
waveguide and swivel mount
Plate Size (Diameter)
Mounting Cutout Size (Dia.)
Mounting Depth
4-1/4" (108mm)
SOUNDPOINT ™ SERIES
SP5, SP6, SP6C,
SP8, SP8C
OWNER'S GUIDE
