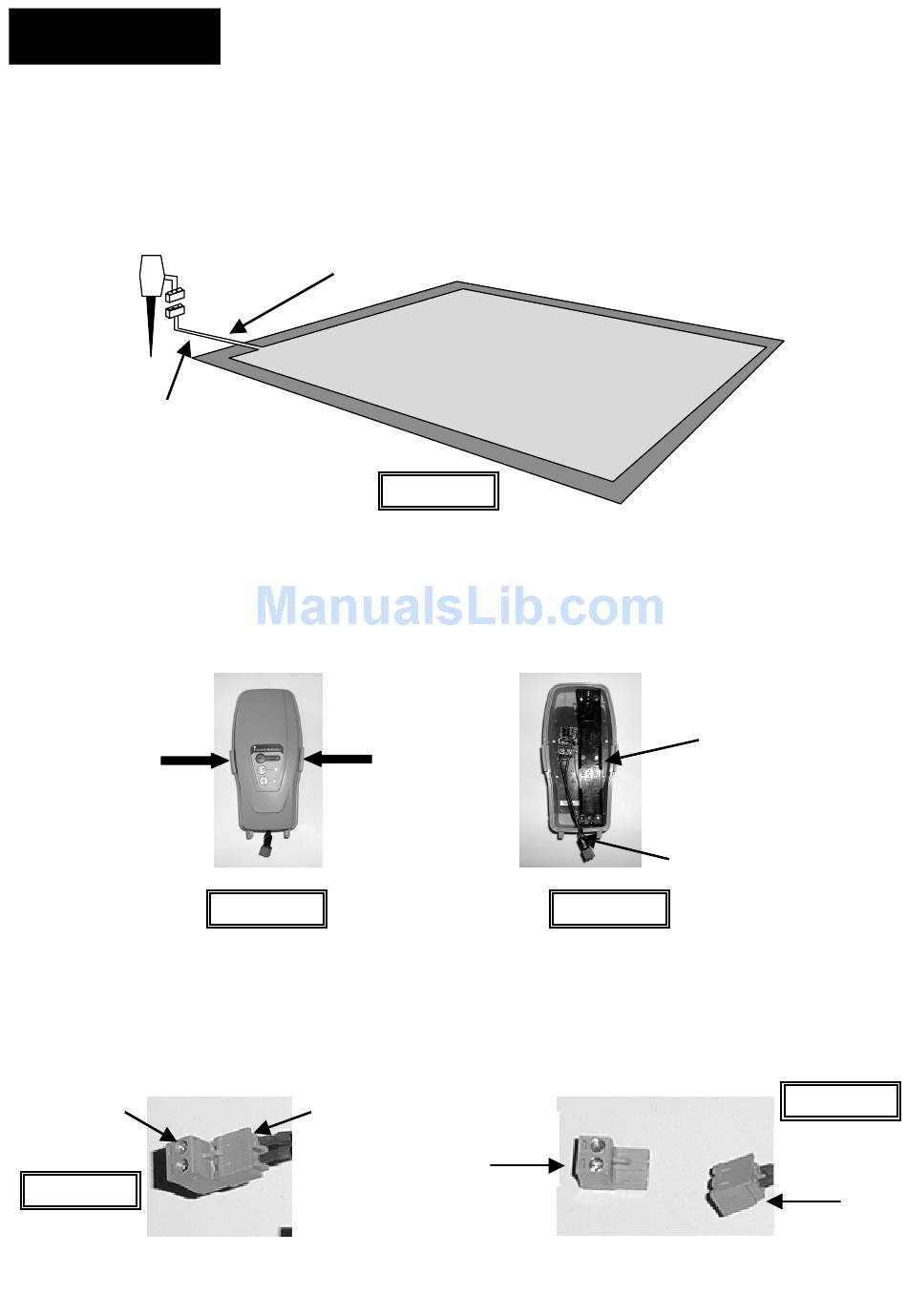

1.9 Completing The Setup
Once the perimeter wire is completed and pegged to the ground, the last step to complete is
attaching the Perimeter Switch to the perimeter wires and testing the setup. Figure 1.12
Two wire ends from
perimeter setup.
Switch > 5 feet (1.5 m)
from perimeter.
After installing the batteries, Figure 1.13, be sure the wire lead coming out of the Perimeter Switch is
positioned at the small notch in the bottom of the housing before fully snapping the Perimeter Switch
back together. Figure 1.14.
Squeeze at arrows to
remove cover
The lead coming from out of the Perimeter Switch has a female connector permanently attached. It is
one part of a two-part connector. Figure 1.15 and 1.16. Plug the perimeter wire connector into the
Perimeter Switch and press the 'ON' button.
Perimeter Switch
connectors attached
Male
Figure 1.15
Note that the wires are adjacent and touching leading from the
perimeter to the Perimeter Switch. Peg firmly to the ground leading
away from the perimeter and towards the switch location
Figure 1.13
Female
Female side-
to Perimeter
Switch
Figure 1.12
Male- to
perimeter wire
C-cell batteries,
place in battery
holder
Small notch for
wire lead
Figure 1.14
Perimeter Switch
connectors unfastened
Figure 1.16
Female- to
Perimeter
Switch
