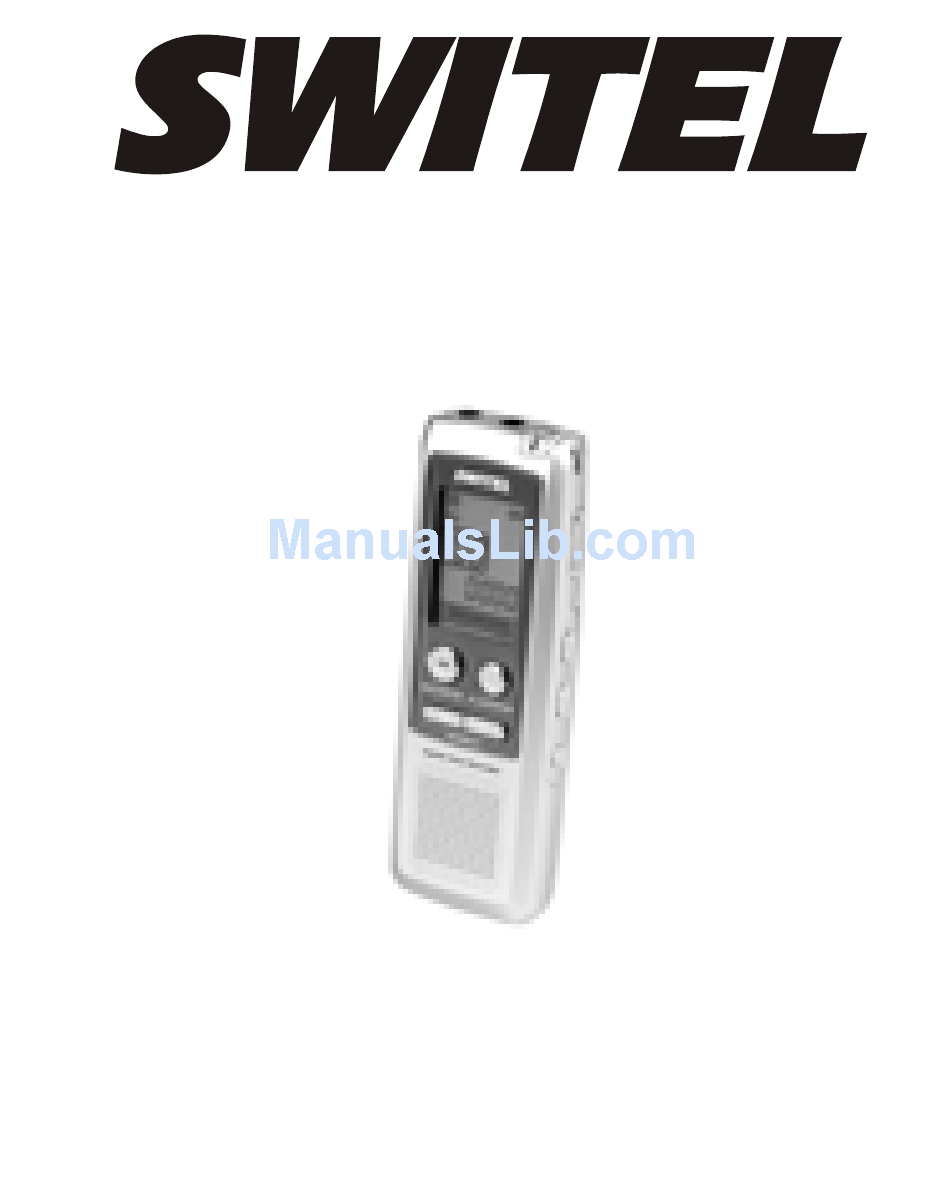

- Page 1 VoiceRecorder DVR-P240 – DVR-P280 – DVR-P2170 – DVR-P2340 Bedienungsanleitung Mode d’emploi Istruzioni per l'uso Operating Instructions...
-
Page 2: Table Of Contents
- Contents - Safety information ....................52 Unpacking ......................53 Product characteristics..................53 Fitting batteries....................54 User controls....................... 55 Display indicators....................56 Operation......................57 Switching on.......................57 The archiving folder ...................57 Recording quality ....................57 Recording notes....................58 Starting the next recording immediately............58 Direct recording....................58 Adding to already existing recordings ...............59 Remaining recording time..................59... -
Page 3: Safety Information
- Safety information - 1. SAFETY INFORMATION Operating Manual: Please read these operating instructions carefully. Do not open the unit yourself under any circumstances and do not try to carry out your own repairs. For any claims under the warranty, please refer to your dealer. The manufacturer cannot be held Do not place cash cards, credit Avoid high temperatures... -
Page 4: Unpacking
Wrist strap 3. PRODUCT CHARACTERISTICS Flash Memory Recordings are retained even in the event of a power failure. Automatic switch-off Automatic switch-off saves battery capacity. Long recording time DVR-P240 DVR-P 280 DVR-P 2170 DVR-P 2340 Premium-Modus 76 Min. 152 Min. -
Page 5: Fitting Batteries
- Fitting batteries - 4. FITTING BATTERIES Slide the battery cover on the rear downwards using slight pressure and open the battery compartment. Now insert the batteries taking care to ensure that the polarity is correct. The wrong polarity can damage both the battery and the unit. -
Page 6: User Controls
- User controls - 5. USER CONTROLS Battery compartment Menu button Display Erase button START/STOP playback button Fixing clip Recording REC/STOP button USB connector Fast forward/Fast rewind buttons Button lock (HOLD) Wrist strap fixing Earpiece connector Volume button VOL Microphone connector On/Off, Pause, Hearing aid buttons Built-in microphone... -
Page 7: Display Indicators
- Display indicators - 6. DISPLAY INDICATORS Indication of the selected archiving folder A, B, C, (D for USB only) Indication of HQ (premium quality) and LP (standard quality) Indication of the note number from 1 to 100 within the selective archiving folder Minutes and seconds display Memory indicator Low memory capacity... -
Page 8: Operation
- Operation - 7. OPERATION Switching on To switch on the VoiceRecorder, press the PAUSE/HEAR button once. The unit is also switched on by pressing and holding the REC/STOP or PLAY/STOP buttons. Make sure that the HOLD slide switch on the right-hand side has not been moved upwards. -
Page 9: Recording Notes
- Operation - Recording notes Make sure that the HOLD slide switch is in the OFF position (slide switch down). Press the REC/STOP button to switch the unit on. Press the REC button again to start recording. The display will show the message "REC". During recording, the length of the message and the number of the message will be shown in the display. -
Page 10: Adding To Already Existing Recordings
- Operation - Adding to already existing recordings It is also possible to make retrospective additions to already existing recordings. Select the required recording that you want to add to and press the PLAY/STOP button. The recording will be played back. Press the REC/STOP button for 2 seconds at any point. -
Page 11: Playing Back Notes
- Operation - 7.10 Playing back notes Make sure that the HOLD slide switch is in the OFF position (slide switch down). Press the PLAY/STOP button once. Select the required archiving folder A, B, or C. Now select the required message using the buttons. -
Page 12: Searching For A Note Automatically (Auto-Scan)
- Operation - 7.11 Searching for a note automatically (AUTO-Scan) If you want to search for a particular note within an archiving folder, you can use the SCAN function. With this function, only the first 5 seconds of the note are played back in each case before changing automatically to the next note. -
Page 13: Additional Options
- Additional features - 8. ADDITIONAL OPTIONS User lock The HOLD slide switch is located on the left-hand side. If this function is switched on (switch in the direction of the arrow), the unit can no longer be used. In this way, accidental recording or playback cannot occur during trans- portation, for example. -
Page 14: Recording From Other Signal Sources
- Additional features - Recording from other signal sources You can also use your VoiceRecorder to record other signal sources, such as a stereo system or a radio, for example. To do this, connect the cable supplied to the microphone input and to the matching connector for the audio output of the required unit. -
Page 15: Recording Telephone Conversations
- Additional features - Recording telephone conversations You can record telephone calls by means of the telephone adapter provided. To do this, con- nect the telephone adapter as described in the following drawing. LINE IN 1. Telephone socket 2. Line on telephone adapter OUTPUT 3. -
Page 16: Fault Finding
- Fault finding - 9. FAULT FINDING The display is blank. - Switch the unit on by means of the REC button. - Check the battery capacity. - Check that the polarity of the batteries is correct. No notes are recorded - Check the setting of the HOLD switch. -
Page 17: Technical Data
10. TECHNICAL DATA DVR-P240 DVR-P 280 DVR-P 2170 DVR-P 2340 Premium-Modus 76 Min. 152 Min. 306 Min. 612 Min. Standard-Modus 250 Min. 504 Min. 1012 Min. 2004 Min. USB-Memory 8 MB 16 MB 32 MB 64 MB Size 36 x 17.9 x 108 mm (WxDxH)
