Summary of Contents for JBL Power P-23t

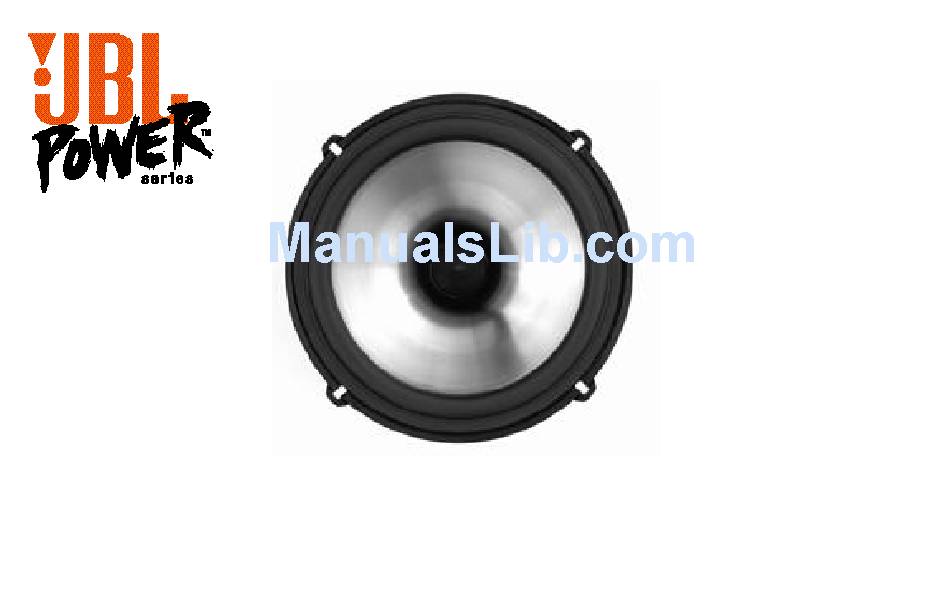

- Page 1 Automotive Loudspeakers P -4 3 2, P- 5 32 , P -63 2 , P -9 6 32 , P- 96 3 3, P - 33 2, P- 6 4 32 , P- 7 5 32 , P -23 t & P-K it Ow n er ’s M a nu al GE NU I NE J BL...
- Page 2 We recommend listening at low levels while in your car. JBL accepts no liability for hearing loss, bodily injury or property damage resulting from use or...
- Page 3 Installation of the P-332, P-6432 and P-7532, as shown in Figure 1. Figure 1. Note: The P-332, P-6432 and P-7532 are designed as direct replacements for original-equipment speakers mounted behind factory grilles. Installation of the P-432, P-532, P-9632 and P-9633, as shown in Figures 2 and 3. Figure 2.
- Page 4 Installation of the P-632, as shown in Figures 4a and 4b. The P-632 uses JBL's Intermount III™ mounting system. Intermount III™ provides for easy installation of these speakers in many standard and nonstandard locations that will accommodate a 6-1/2" speaker.
- Page 5 Converting the P-432, P-532 and P-632 to a component system using the optional P-Kit (sold separately), as shown on pages 5 and 6. Separating the tweeter and woofer, as shown in Figures 5a and 5b. Figure 5a. Remove the orange wire cover by inserting a small screwdriver into the notch between the two terminals and prying upwards.
- Page 6 P-532 or P-632, the optimum crossover frequency for the tweeter is slightly higher when the P-23t is used with the 4" woofer. Note: For the most accurate sound reproduction, the jumper positions should be set according to JBL recommendations.
- Page 7 5W – 175W 5W – 250W 5W – 200W 5W – 225W 2-1/4" (57mm) 2-1/2" (64mm) 3-1/8" (80mm) P-6432 P-7532 P-23t 4" x 6" 2-Way 5" x 7" 2-Way or Component Plate Component System Tweeter with Optional P-Kit Thermalum™ Thermalum™...
- Page 8 EN 50081-1:1992 EN 50082-1:1992 Steen Michaelsen JBL Europe A/S Birkerød. DENMARK. 3/99 JBL Consumer Products, 250 Crossways Park Drive, Woodbury, NY 11797 800-336-4JBL (4525) www.jbl.com Part No. POWSPKRSOM Made in China...
