MAINTENANCE INSTRUCTIONS for
APRILAIRE HUMIDIFIER MODELS 110-112
WARNING! 120 volts may cause serious injury from electrical shock.
Disconnect power and shut off water supply before servicing.

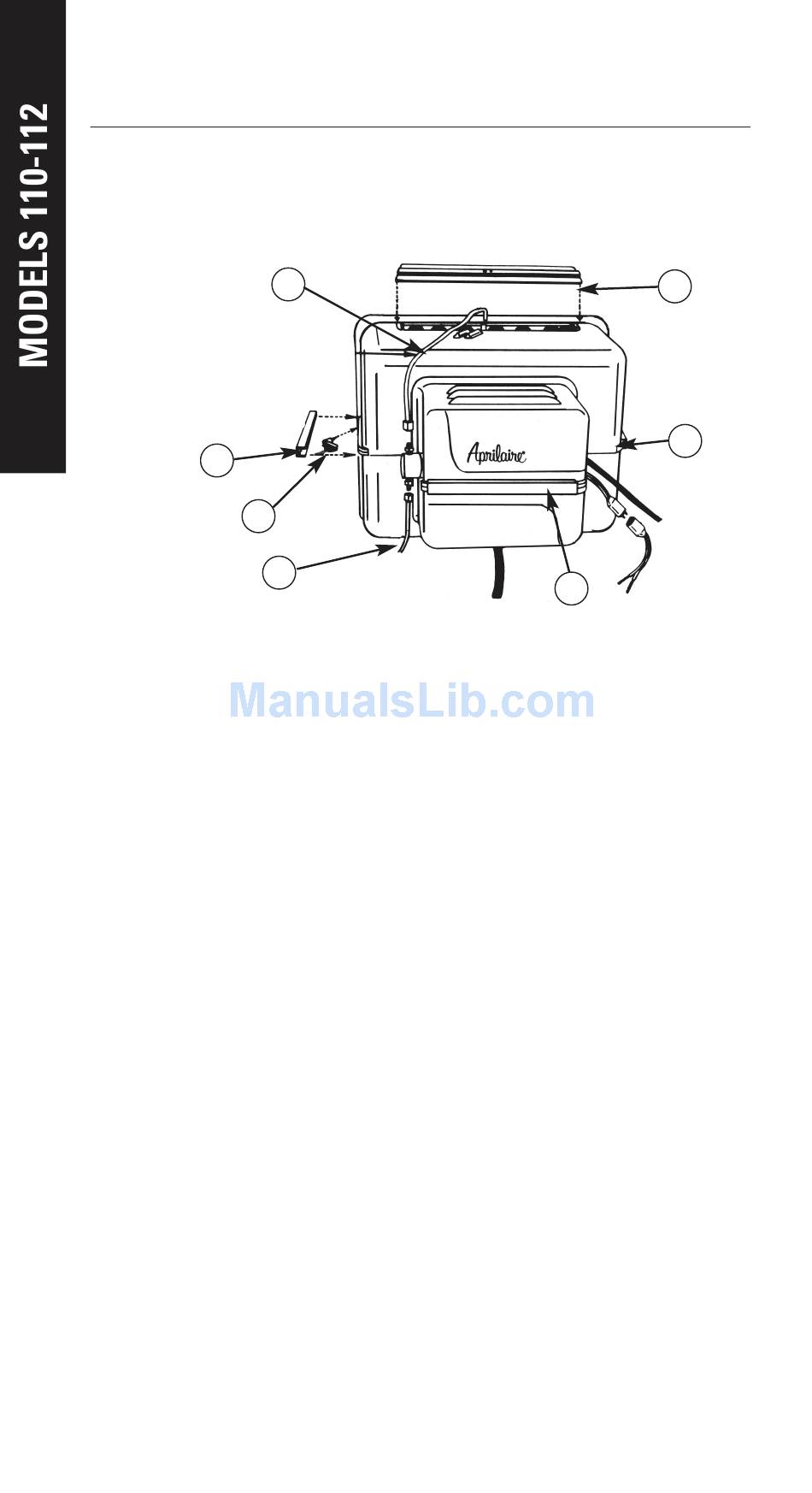

1. Water Supply Line
2. Feed Tube
3. Swing Locks
4. Closure Clip
5. Closure Clip
6. Distribution Pan Cover
4
1. Note Humidistat setting and turn dial to the "off" position.
2. Disconnect electrical power and turn off water supply.
3. Disconnect: a) 120 volt electrical service. b) Copper water supply line (1)
& feed tube (2). c) Drain line. d) 24 volt leads.
4. Turn two swing locks (3), one at either side of lower housing off humidifier flange.
5. Lift humidifier straight up until bottom of unit clears lip of lower housing.
Pull unit out at bottom, lower and remove.
6. Slide off three closure clips (4 & 5) that holds 2 halves of unit together.
7. Remove upper half of unit.
8. Remove Water Panel evaporator and Scale Control Insert. Remove Water Panel
evaporator from Insert and clean Insert by flexing or using putty knife. Inspect
Water Panel evaporator and replace with a new Water Panel evaporator
(Stock No. 10 for Model 110 and Stock No. 12 for Model 112), with colored spot up.
9. Remove the plastic drain hose from the bottom of the unit and flex it to loosen the
internal calcium deposits. Then flush it with water under pressure and slip it back
onto the black drain fitting. Make sure the drain hose has a constant downward
slope and is not flattened or blocked.
10. Remove the water distribution pan cover (6) and clean "V" openings in water
distribution section but do not scrape off granular coating from bottom. This helps
to insure proper, even water flow for maximum performance. See page 2 if removed.
11. Oil motor with 2 drops of SAE 20 oil in oil holes at each end of motor housing.
12. IMPORTANT: When installing Scale Control Insert and Water Panel evaporator in
the humidifier, the Insert spout must discharge directly into unit drain.
13. Reassemble unit, position feed tube in compression fitting, tighten compression
nuts and secure copper feed tube to upper housing with feed tube clamp.
14. In reverse order, complete steps 1 and 4 to reinstall your humidifier, and check
unit operation.
2
3
1
- 10 -
6
4
5
