Your new handset will provide you with the greatest possible degree of flexibility and mobility due to high battery capacity, low weight, practical size and design. Contents: 1. Construction ................4 7.5.2 Login ...............22 2. Battery installation ..............5 7.5.3 Auto login ..............23 3. -
Page 3: Construction

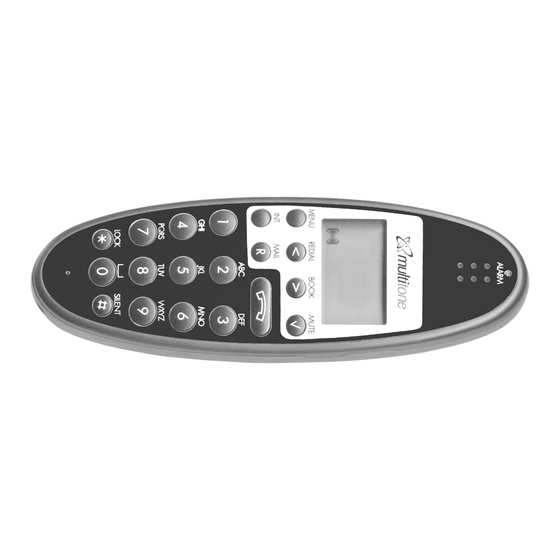

Headset Connector Display with backlight 1. Construction (only CH74) MENU key Left arrow key, Redial menu from standby text Key for internal calls (not used on CS600 or CS100) Loud speaking (only CH74) Alarm key Keyboard LOCK (Menu*) Right arrow key, save number. Telephone book menu from Recall key standby text... -
Page 4: Charging
3. Charging It takes approximately 3 1/2 hours to charge the handset from fully discharged to its full capacity. Place the hand- set in the charger. When the handset is turned on, the display shows the charging status in line 3. For correct charging the room temperature has to be between 0°C and 25°C and the handset must therefore not be placed in direct sunshine. -
Page 5: Turning The Handset On/Off
, Choose uppercase or lowercase letters in alphanumeric mode " " "Alarm" This key is located on the top of the handset and is used for Multitone applications (see section 7.10) 5. Turning the handset ON/OFF ON: Press -key for 1/2 second. -
Page 6: Making A Call
6. Making a call For making or receiving calls the handset has to be subscribed to a system ( shown in display) (see chap. 7.5.1) Press the -key, the -icon in the display will flash until connection is established Dial the number Pre-dial: Press the number to dial (long press on »... -
Page 7: Receiving Calls
6.1. Receiving calls If the phone rings, the call can be answered by pressing the -key. When ringing the LED flashes fast, and the display shows the CLIP (if presented). If it is an external call (or if no CLIP) the display shows “INCOMING CALL” It is possible to stop the ring signal without answering the call. -
Page 8: Menu Structure
7. Menu structure Pressing the MENU-key, enters or exits the menu structure. It has to be used if a “NO” or “CLEAR” is wanted in the menu structure. Pressing the -key, jumps to a lower level in the menu. When the lowest menu level is reached, it will store the setting and jump to a higher level. -
Page 9: The Key Functions
7.2 The key functions Capital letter Small letter ? ! 1 - + * / = & ( ) % ¿ ¡ ? ! 1 - + * / = & ( ) % ¿ ¡ A B C 2 Ä Å À Á Ã Æ Ç a b c 2 ä... -
Page 10: Profile Set Up
Profile set-up (fig) CH74 PROFILE SET UP SET PROFILE SET PROFILE SET PROFILE SET PROFILE SET PROFILE SET PROFILE SET PROFILE SET PROFILE SET PROFILE SET PROFILE BACKLIGHT RINGER TONE RINGER VOL KEY CLICK VIBRATOR B-ANSWER START VOL OUT OF RANGE AUTO KEYLOCK LANGUAGE BACKLIGHT... -
Page 11: Menu Subscription And Login
7.5 Menu subscription and login SUBSCRIPTION REMOVE MENU REMOVE? LOGIN Password is factory set 0000 PASSWORD _ _ _ _ _ MENU SUBSCRIPTION SUBSCRIPTION SUBSCRIPTION SELECT LOGIN CREATE REMOVE REMOVE LOGIN CREATE REMOVE SYSTEM1* SEARCH ID: SYSTEM 1 123456789012 REMOVE REMOVE REMOVE REMOVE... -
Page 12: Login
7.5.2 Login The handset can be subscribed to 10 different systems enabling you to use the same handset on 10 different systems. If you would like to change to another system, use the login menu to connect to another system number. The actual chosen system is shown with the red LED on. -
Page 13: Remove Subscription
7.5.5 Change startup text The startup text is predefined as i.e. ”CH72 or Ch74” as factory default. This can be changed by using the following procedure: Press , BOOK, ( ) and give in the new startup text by the keyboard followed by ( ). It is pos- **** sible to give in 24 characters. -
Page 14: Redial
7.7 Redial The handset has maximum 10 redial numbers and 10 Caller ID’s placed in the same stack. Each number is only represented once. Enter the redial menu by pressing ”< ”(Redial) from the standby text. Repeated presses at the “<”... -
Page 15: Book
STORE NO.? 75602850 NAME: Multitone Read BOOK numbers: The telephone book is entered by pressing ”>”(book). For quick-search: press the first letter of the name (using 1-9)(see chap. 8.2). Call the displayed person by pressing the key. It is also possible to reach the telephone book menu in the main menu. -
Page 16: External Services
External services are facilities placed in the main system, and only available if the handset is subscribed to a Multitone system. Under External services can be found. Clip stack, Delete clip stack and local Phone book. The Local Phone book is a common Phone book for all handsets subscribed to the actual system, and all handsets subscribed to the system are listed in the Phone book. -
Page 17: Mail/Textmessages
7.11 Mail/Text Messages Available in systems configured with the possibility of sending text messages (SMS Licence Required) At the reception of a text message the envelope icon appears in the display. The envelope icon is indicating one or more unread messages. The text message is shown in the display, and when the message is read the envelope icon will disappear. - Page 18 CH74 MAIL N25-01 04.38 L26-01 14.32 N28-01 15.46 WRITE NEW √19-01 09.56 √20-01 10.13 MAIL? htj@Multitone.com I am working.. Temp 45° .. Hello, its me.. FIRE ALARM.. Call me.. Meet me at 9 .. Hello it’s me. o’clock if you Yo can meet me want to.
-
Page 19: Menu Language
7.12 Menu language There are 7 predefined languages in the handset: English, German, French, Italian, Spanish, Dutch and Danish 8. Shortcuts ”SILENT”: Press: MENU #. (No sounds) (Display shows SILENT) ”KEY LOCKED”: Press: MENU . (Display shows KEY LOCKED) “PHONE BOOK”: Press >(BOOK) key in standby. Name search in telephone book: Press the first letter in name and >... -
Page 20: Information
9. Information 9.1 Error tree Problem Check The telephone freezes. Remove and replace the battery pack. Press to turn on the telephone. The telephone does not ring. Check whether the ringer is SILENT or RINGER VOL. is OFF. The telephone cannot find a system ID at Check whether the system is set to allow subscriptions. -
Page 21: Technical Information
9.4. Technical information Approvals Acoustics: TBR 10 Electrical: TBR 6 (DECT RF) Access profile: TBR 22 (GAP) EMC: ETS 300 329 (CE labelling) IP54: Ingress protection Size and weight Size: 149 x 50 x 28 mm Weight: 123 g including battery ± 10 g Capacity Active talking time 12 hours Stand-by time 120 hours...
