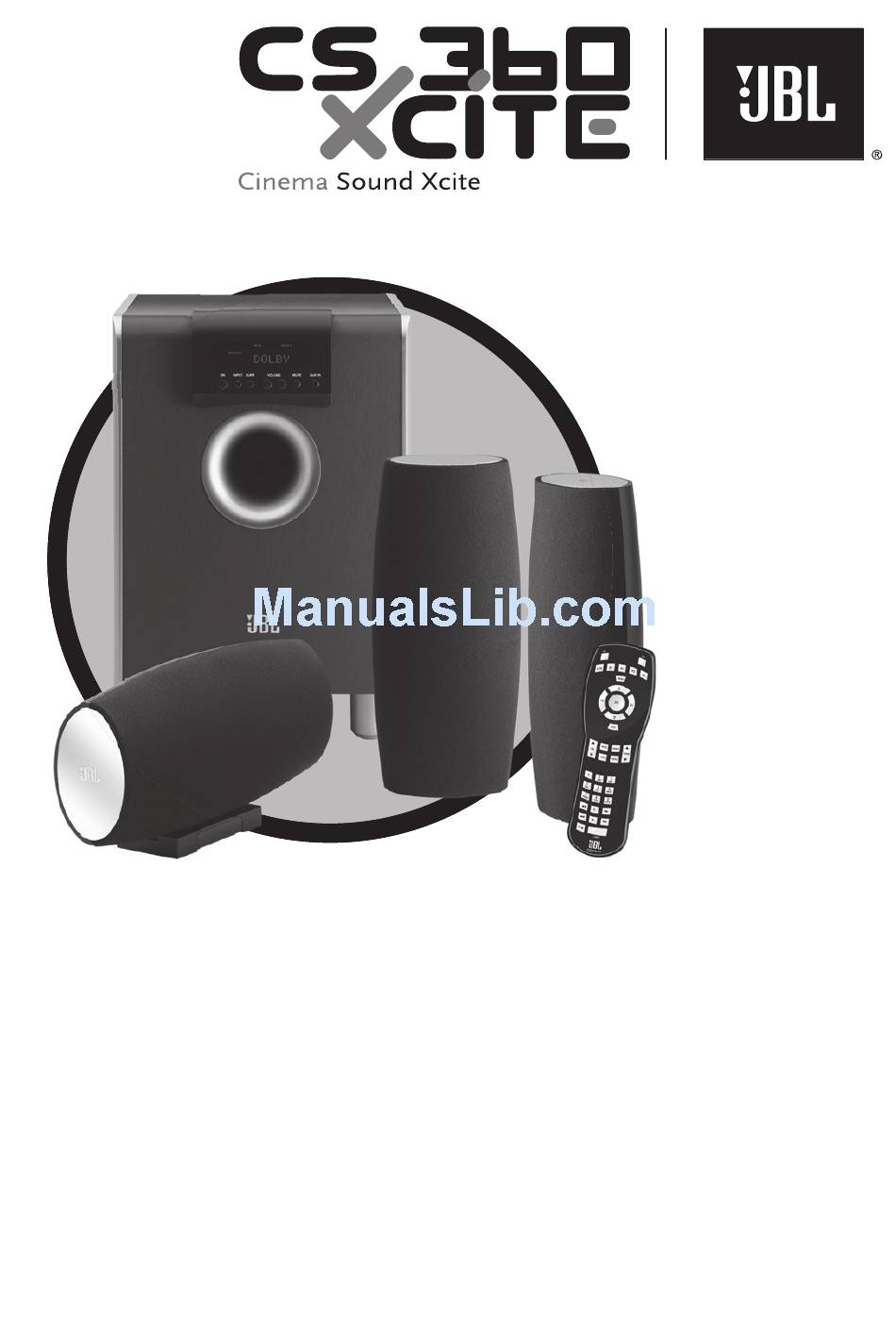

Owner's manual
Thank you
for choosing JBL. For over 60 years, JBL
has been involved in every aspect of music and film recording and
reproduction, from live performances to monitoring the recordings you
play in your home, car or office.
We're confident that the JBL system you have chosen will provide
every note of enjoyment that you expected – and that when you
think about purchasing additional audio equipment for your home,
car or office, you will once again choose JBL.
JBL Consumer Products
Advertisement
Table of Contents
Related Manuals for JBL CS 360 Xcite
Summary of Contents for JBL CS 360 Xcite
- Page 1 We’re confident that the JBL system you have chosen will provide every note of enjoyment that you expected – and that when you think about purchasing additional audio equipment for your home, car or office, you will once again choose JBL.
-
Page 2: Important Safety Instructions
Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 3: Important Note
The Automatic Turn-On can be disabled in the SETUP menu The Automatic Source Selector can be disabled in the SETUP menu The Automatic Turn-Off cannot be disabled. These functions are working regardless of how the current Source is selected, automatically or manually. WWW.JBL.COM... - Page 4 Included “Smart” powered subwoofer/con- troller. JBL speaker cables. Features • Complete, self-powered DTS, Dolby* Digital surround processor with two satellite speakers, a center channel loudspeaker, subwoofer, remote control, and all amplification built-in. (Just Add TV and source unit!) • Dolby Digital, DTS, Dolby Pro Logic II*, including Phantom and 3-Stereo, and Stereo listening modes.
-
Page 5: Speaker Placement
Should you have questions relating to installation, it is advisable to call either your dealer or JBL’s Customer Service Depart- ment for advice. The performance of the subwoofer is directly related to its placement in the listening room and how the subwoofer is aligned with the satellite speakers. - Page 6 Wall-Mounting the Satellites and Center Channel The CS360 satellites and center channel are designed to be mounted on the wall. There is a fixed-mount wall bracket and an adjustable wall bracket provided for each satellite and the center channel. Each speaker bracket will require up to four 38 mm (1-1/2") #10 wood screws;...
-
Page 7: Center And Satellite Speaker Connections
(rear view) Red = + One Channel Shown Figure 4. Wiring diagram shows polarity connections for one channel of a home theater system. Center Channel Observe polarities when making speaker connections, as shown in Figure 5. Connect the center channel + terminal on the back of the subwoofer to the + (red) terminal on the center speaker. - Page 8 Speaker, Source, and Remote-Sensor Connectors (rear panel of subwoofer) Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D are trademarks of Dolby Laboratories. Copyright 1992-1999 Dolby Laboratories. All rights reserved. Manufactured under license U.S. Patent #’s: 5451, 942; 5,956,674; 5,974,380; 5,978,762; 6,487,535; 7,003,467 & other U.S. and worldwide patents issued &...
- Page 9 The word NIGHT lights up in the display when this feature is active. turns the unit to STANDBY. On the Sub- WWW.JBL.COM...
- Page 10 Surround Mode (Remote and Front Panel) Press the SURR Button on the Front Panel repeatedly to scroll through the various Surround and Stereo options. The SURR UP/DOWN Button on the Remote Control lets you scroll either up or down through the same modes. Bass (Remote Only) Press this Button to select Bass Enhancement in certain Surround Modes.
- Page 11 Select each speaker in turn with the Left and Right Navigation Buttons and adjust the distance from 0.0 meters to 9.0 meters to reflect the actual distance between yourself and each speaker. Press SET or EXIT to jump to the next item. WWW.JBL.COM...
- Page 12 LIPSNC: Lip Sync delays audio so that it is in sync with video that may be delayed due to processing. When the Display shows LIPSNC blinking, press SET. The Display now shows the standard value of 50 ms (milliseconds). You may adjust the Delay in 5 ms increments from 0 ms to 100 ms by pressing the Up and Down Navigation Buttons.
-
Page 13: Surround Modes
STREAM TYPE 3CH ST 2CH ST VSWIDE VS REF VSWIDE VS REF VSWIDE VS REF VSWIDE VS REF SRS TS STREAM TYPE 3CH ST 2CH ST VSWIDE VS REF VSWIDE VS REF Neo:6 Neo:6 VSWIDE VS REF SRS TS WWW.JBL.COM... -
Page 14: Troubleshooting
ON Button on the remote when the unit is already switched ON. The software version number appears as a small "v", followed by a sequence of digits. Optional Floor Stands are available from your JBL Dealer (Order code: CSSTANDS). -
Page 15: Specifications
VIRTUAL SURROUND AND STEREO SPEAKERS CS 360 Xcite system MODEL: DESIGN GOAL: Bring the thrill of live performance and movie sound to the home environment by calling on JBL’s professional engineering leadership. SATELLITE TYPE: Titanium-laminate-dome tweeter, sealed enclosure Bass-reflex enclosure SUBWOOFER TYPE:... - Page 16 All features and specifications are subject to change without notice. JBL is a trademark of Harman International Industries, Incorporated, registered in the United States and/or other countries. Pro Sound Comes Home is a trademark of Harman International Industries, Incorporated. Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535; 7,003,467 & other U.S. and worldwide patents issued & pending.
