Page 1: Top And Cabinet Parts

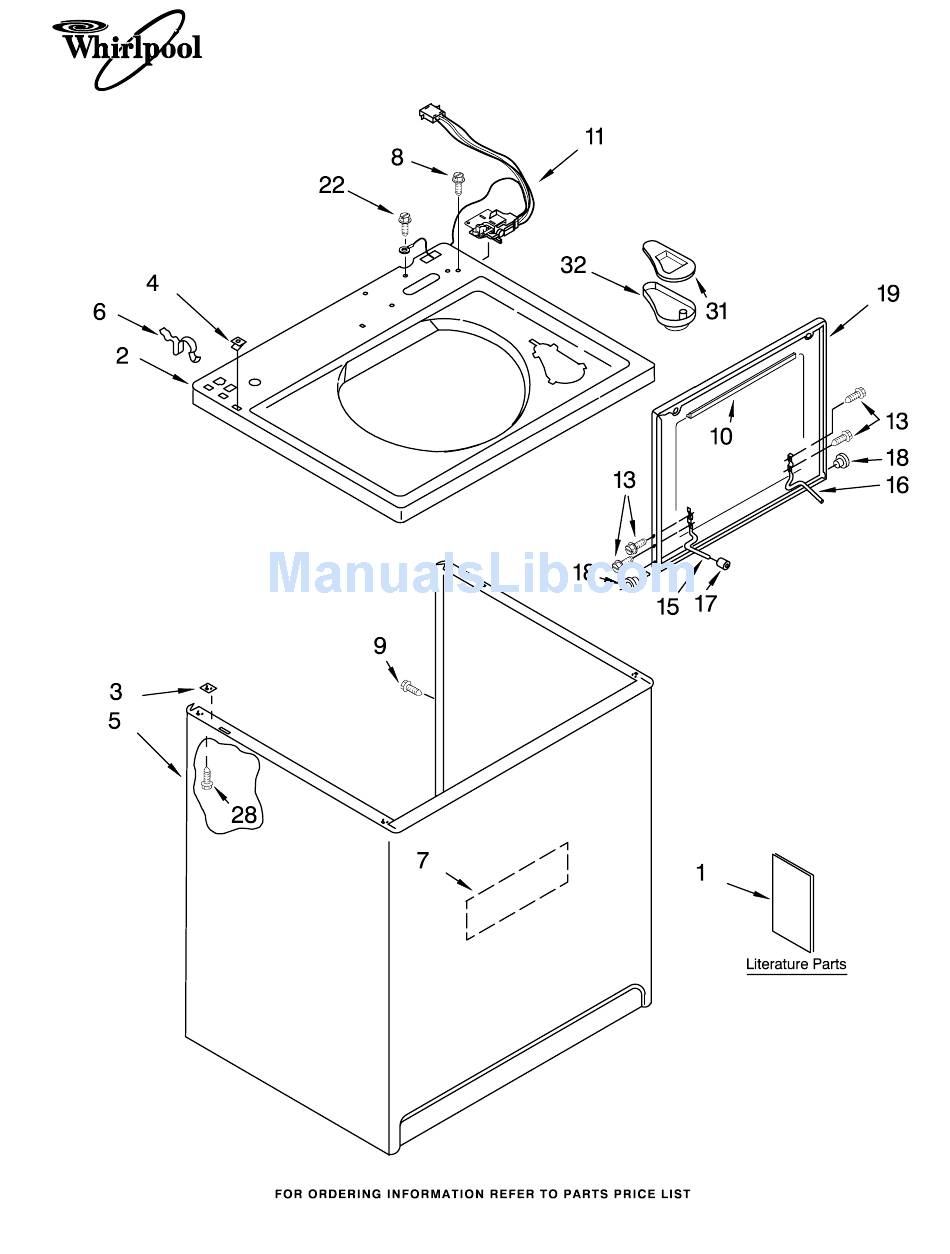

TOP AND CABINET PARTS AUTOMATIC WASHER For Models: LSQ9620LW1, LSQ9620LG1 (White/Grey) (Biscuit/Gold) Part No. 8179977 5−03 Litho in U.S.A.(drd) - Page 2 TOP AND CABINET PARTS For Models: LSQ9620LW1, LSQ9620LG1 (White/Grey) (Biscuit/Gold) Illus. Part DESCRIPTION Literature Parts LIT3956025 Installation Instructions LIT3955869 Use & Care Guide LIT3955903 Feature Sheet LIT3956285 Energy Guide LIT8542482 Wiring Diagram Following May Be Purchased DO−IT−YOURSELF REPAIR MANUALS LIT4313896 Manual, Washer...
-
Page 3: Controls And Rear Panel Parts
CONTROLS AND REAR PANEL PARTS For Models: LSQ9620LW1, LSQ9620LG1 (White/Grey) (Biscuit/Gold) 8179977... - Page 4 CONTROLS AND REAR PANEL PARTS For Models: LSQ9620LW1, LSQ9620LG1 (White/Grey) (Biscuit/Gold) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3347812 Clip, Harness 661661 Cord, Power 3976300 Washer, Water 3955774 Switch, (Includes Item 15) Inlet Hose (4) Temperature 3952821 Strain Relief, (1−1/16 x 5/8)
-
Page 5: Agitator, Basket And Tub Parts
AGITATOR, BASKET AND TUB PARTS For Models: LSQ9620LW1, LSQ9620LG1 (White/Grey) (Biscuit/Gold) 8179977... - Page 6 AGITATOR, BASKET AND TUB PARTS For Models: LSQ9620LW1, LSQ9620LG1 (White/Grey) (Biscuit/Gold) Illus. Part DESCRIPTION 63594 Dispenser 358237 Screw & Washer (5/16−24 x 1) 389141 Auger, Agitator 389386 Agitator 8528150 Tub Ring & Gasket 3976308 Seal, Tub Ring 3354845 Clip, Agitator...
-
Page 7: Brake, Clutch, Gearcase, Motor And Pump Parts
BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS For Models: LSQ9620LW1, LSQ9620LG1 (White/Grey) (Biscuit/Gold) Illus. Part Illus. Part DESCRIPTION DESCRIPTION 3357334 Screw, Gearcase 388952 Brake & Drive To Base (3) Tube (Complete) 62611 Plate, Motor (Refer to Page 11 Mount To... -
Page 8: Machine Base Parts
MACHINE BASE PARTS For Models: LSQ9620LW1, LSQ9620LG1 (White/Grey) (Biscuit/Gold) Illus. Part DESCRIPTION 3400076 Screw, Bracket Mounting (10−32 x 5/8) 64067 Bracket, Spring Outer (2) 63907 Spring Suspension,(3) 3362087 Support & Brake, 64065 Bracket, Spring Outer (L.F.) 63466 Link, Leveling Mechanism (2) -
Page 9: Wiring Harness Parts
WIRING HARNESS PARTS For Models: LSQ9620LW1, LSQ9620LG1 (White/Grey) (Biscuit/Gold) 8179977... - Page 10 WIRING HARNESS PARTS For Models: LSQ9620LW1, LSQ9620LG1 (White/Grey) (Biscuit/Gold) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3348075 Block, Disconnect 3349557 Clip, Harness 3349494 Connector, Etc (Motor 3 Speed) 388498 Clip, Harness 60687 Connector, Relay (Use Term. 94613 3347812 Clip, Harness (Use Term.308569)
-
Page 11: Brake And Drive Tube Parts
BRAKE AND DRIVE TUBE PARTS For Models: LSQ9620LW1, LSQ9620LG1 (White/Grey) (Biscuit/Gold) Illus. Part DESCRIPTION 388952 Brake And Drive Tube (Complete) 62658 Ring, Thrust 91939 Seal, Oil 356427 Seal, Drive Tube 356937 Spacer, Drive Tube 64027 Tube, Basket Drive (Includes Illus. 3, 4, 5 & 9) -
Page 12: Gearcase Parts
GEARCASE PARTS For Models: LSQ9620LW1, LSQ9620LG1 (White/Grey) (Biscuit/Gold) Illus. Part DESCRIPTION 1 3360630 Gearcase (Complete) 285202 Cover, Gearcase 3 3349985 Seal, Gearcase Cover 285195 Sealer, Gasket (.20 Fl. Oz.) (6 ml) 63320 Pinion, Spin (Includes Illus. 25) 356427 Seal, Spin... -
Page 13: Water System Parts
WATER SYSTEM PARTS For Models: LSQ9620LW1, LSQ9620LG1 (White/Grey) (Biscuit/Gold) Illus. Part DESCRIPTION 285442 Connector Kit, Plastic Drain Hose 285321 Sleeve Kit, (Contains 2 Sleeves) 370447 Clamp, Hose 16272 Connector, Straight 285320 Siphon Break (Not Included) 65349 Clamp, Hose 367031 Drain Protector... -
Page 14: Miscellaneous Parts
MISCELLANEOUS PARTS For Models: LSQ9620LW1, LSQ9620LG1 (White/Grey) (Biscuit/Gold) Illus. Part DESCRIPTION 3976263 Miscellaneous Parts Bag 3976300 Washer, Inlet Hose (1−1/16 x 5/8) (4) 3366912 Clamp, Hose 3359452 Nut, Lock (3/8−16) 389102 Foot, Front (2) 3366913 Clamp, Hose OPTIONAL PARTS (NOT INCLUDED) Illus.
